932-1000-00

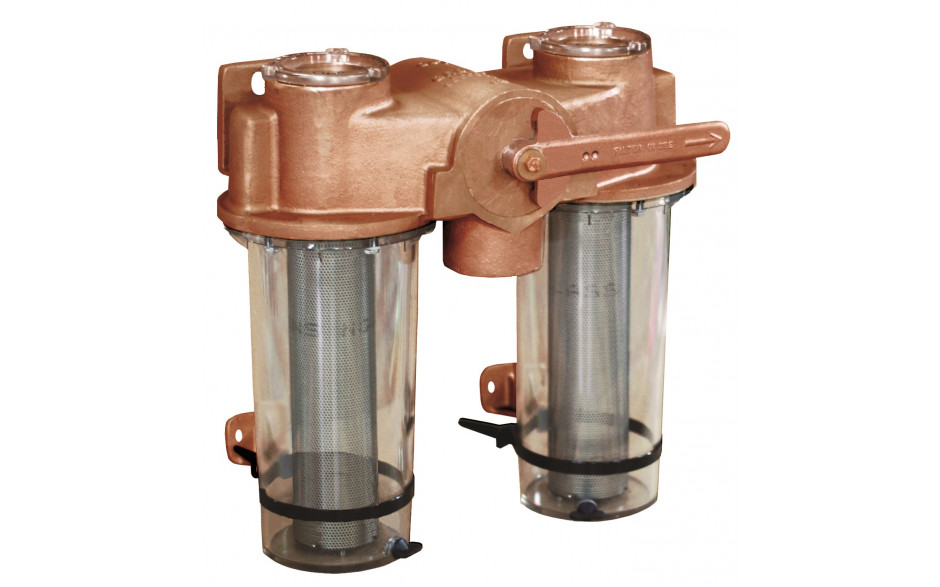

1" Duplex Strainer with #304 SS Basket

 FEATURES

  • No tie rods or gaskets.
  • Easy service with screw-on cap.
  • Patent-pending valve handle has square hole to accept a standard ratchet for improved leverage or greater access.
  • C84400 bronze construction.
  • #304 stainless steel filter baskets are standard
  • Monel basket available.
  • ABS Compliant version available with bronze enclosures. 933 Series.

Additional Information
Spec Sheet No
Basket Type #304 Stainless Steel
Thread NPT 1"
Open Area Ratio 28
Dimensions
Thread NPT1"
A9.4
B13.5
C6.5
D3.3
E2.5
Open Area Ratio28
dimensions image
 Download Image  Open in New Window
Individual Parts

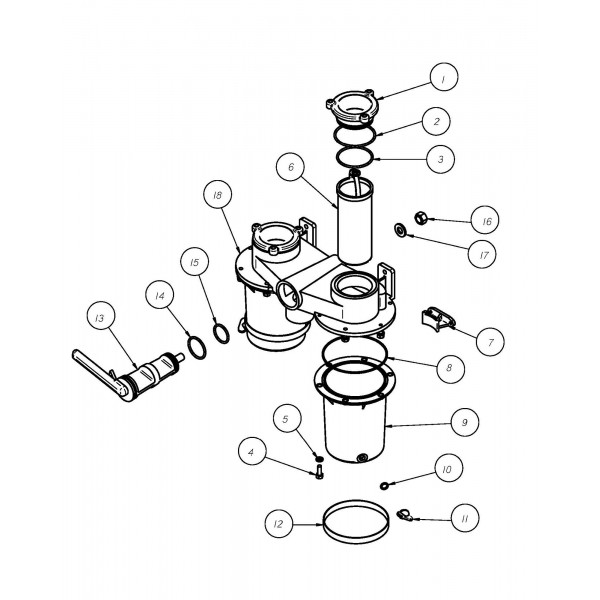

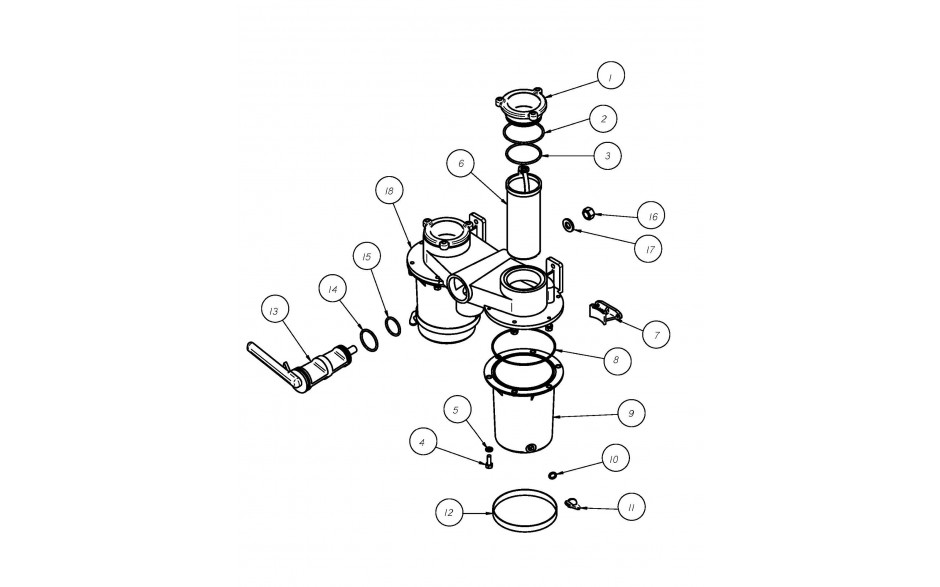

exploded image
 Download Image  Open in New Window
  • 1
    ARG-1001-PC
    $26.00
    Qty Per Unit: 2
  • 2
    2-229
    $1.00
    Qty Per Unit: 2
  • 3
    2-232
    $2.00
    Qty Per Unit: 2
  • 4
    1420X34HS
    $1.00
    Qty Per Unit: 12
  • 5
    PFW-2 SET
    $3.00
    Qty Per Unit: 2
  • 6
    BS-3
    $39.00
    Qty Per Unit: 2
  • 7
    ARG-1004
    $20.00
    Qty Per Unit: 2
  • 8
    2-153
    $2.00
    Qty Per Unit: 2
  • 9
    ARG-1003
    $73.00
    Qty Per Unit: 2
  • 10
    2-111
    $1.00
    Qty Per Unit: 2
  • 11
    ARG-756
    $4.00
    Qty Per Unit: 2
  • 12
    ARG-502
    $5.00
    Qty Per Unit: 2
  • 13
    932-1000 BPA
    $1,169.00
    Qty Per Unit: 1
  • 14
    2-222
    $1.00
    Qty Per Unit: 1
  • 15
    2-218
    $1.00
    Qty Per Unit: 1
  • 16
    1220HB
    $3.00
    Qty Per Unit: 1
  • 17
    VD-A
    $5.00
    Qty Per Unit: 1
