933-1250-00

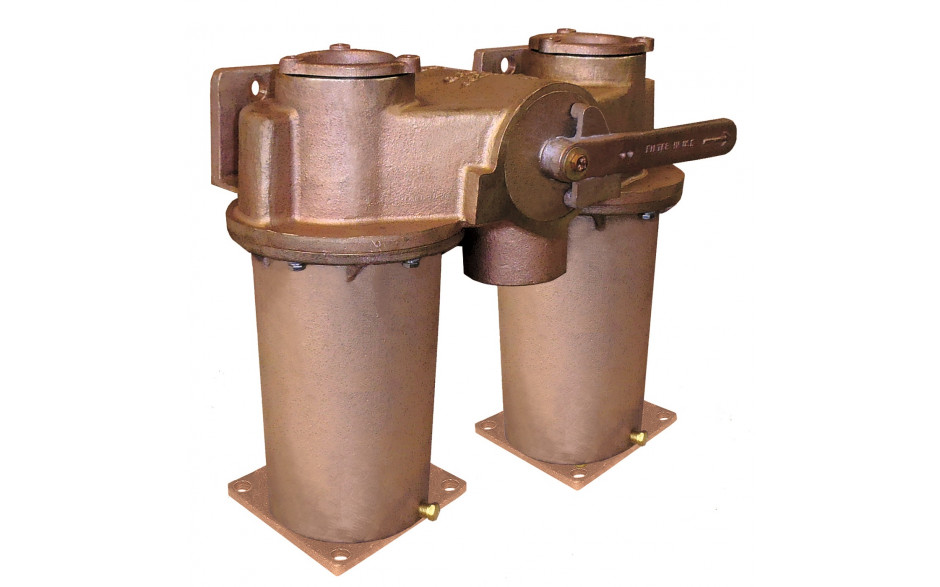

1-1/4" Duplex Strainer with #304 SS Basket

 FEATURES

  • ABS compliant with full C84400 bronze construction.
  • No tie rods or gaskets.
  • Easy service with screw-on cap.
  • Patent-pending valve handle has square hole to accept a standard ratchet for improved leverage or greater access.
  • #304 stainless steel filter baskets are standard
  • Monel basket available.

Additional Information
Spec Sheet No
Basket Type #304 Stainless Steel
Thread NPT 1-1/4"
Open Area Ratio 24
Dimensions
Thread NPT1-1/4"
A11
B13.5
C6.5
D3.3
E2.5
Open Area Ratio24
dimensions image
 Download Image  Open in New Window
Individual Parts

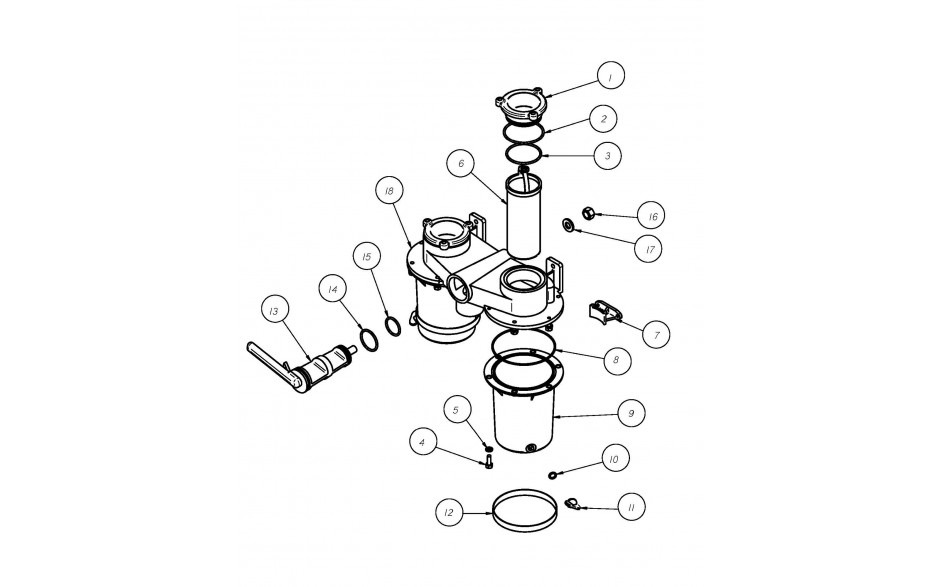

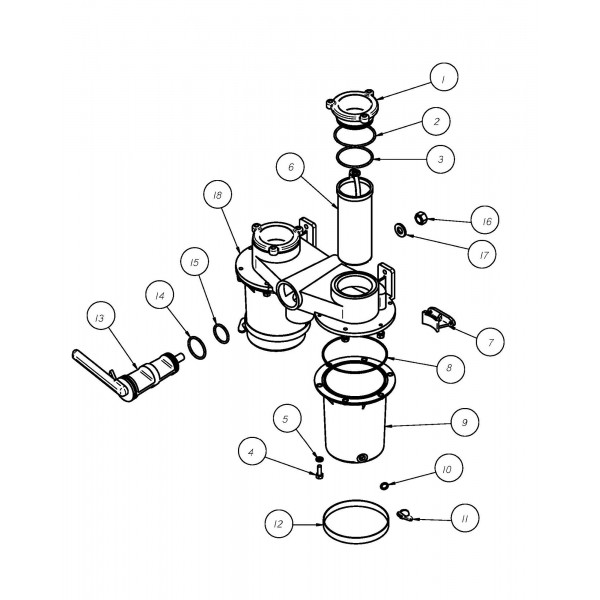

exploded image
 Download Image  Open in New Window
  • 1
    ARG-1001-C
    $81.00
    Qty Per Unit: 2
  • 2
    2-229
    $1.00
    Qty Per Unit: 2
  • 3
    2-232
    $2.00
    Qty Per Unit: 2
  • 4
    2-157
    $2.00
    Qty Per Unit: 2
  • 5
    AARG-1253
    $684.00
    Qty Per Unit: 2
  • 6
    14FS
    $1.00
    Qty Per Unit: 12
  • 7
    14SS
    $1.00
    Qty Per Unit: 12
  • 8
    1420X34HS
    $1.00
    Qty Per Unit: 12
  • 9
    1418HB
    $5.00
    Qty Per Unit: 4
  • 10
    BS-17
    $41.00
    Qty Per Unit: 2
  • 11
    1220HB
    $3.00
    Qty Per Unit: 1
  • 12
    VD-A
    $5.00
    Qty Per Unit: 1
  • 13
    932-1250 BPA
    $1,169.00
    Qty Per Unit: 1
  • 15
    2-222
    $1.00
    Qty Per Unit: 1
  • 16
    2-218
    $1.00
    Qty Per Unit: 1
