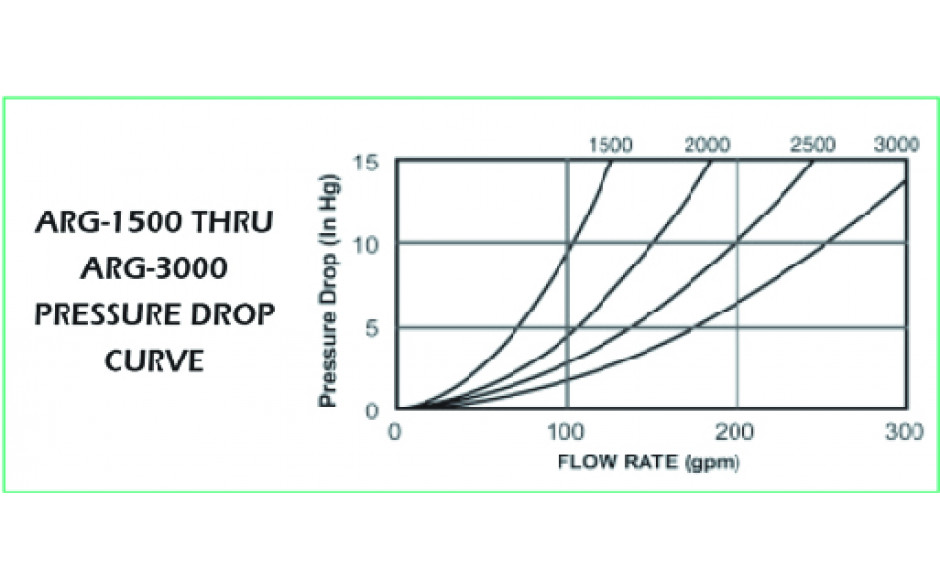

  • flow-chart

AARG-2000-P

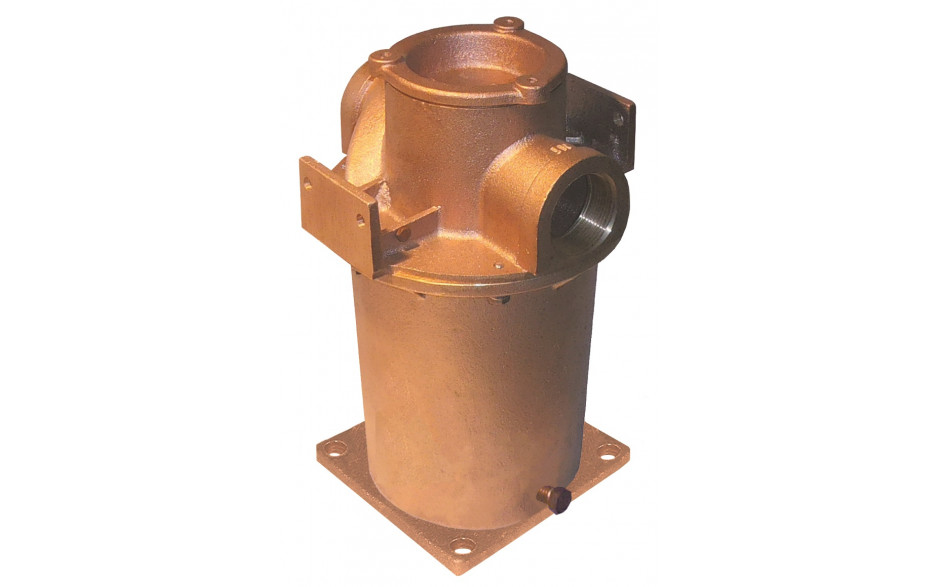

2" Raw Water Strainer with Plastic Basket

Features:

  • ABS Compliant Raw ARG Water Strainer
  • 100% Bronze Strainer (Cap, Head, Cylinder, and Drain Plug)
  • O-Ring Seal All Joining Surfaces
  • Filter Basket Options
    • #304 SS (Standard)
    • Monel
    • Non-Metallic
  • Bonding Connection Both Sides
  • NPT or BSPP Threaded Ports
  • Improved Basket Design
  • C84400 Bronze Cap, Casting, and Enclosure
  • UL Listed 255-D

Additional Information
Spec Sheet No
Basket Type Plastic (-P Suffix)
Thread NPT 2"
Open Area Ratio 14
Dimensions
Thread NPT2"
A14
B7.3
C7.8
D2.8
E5
Open Area Ratio14

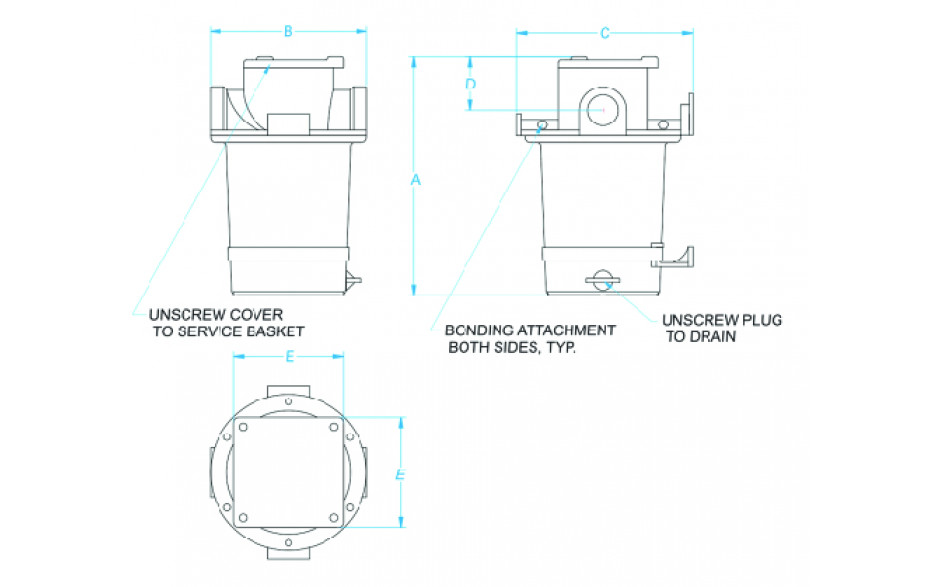

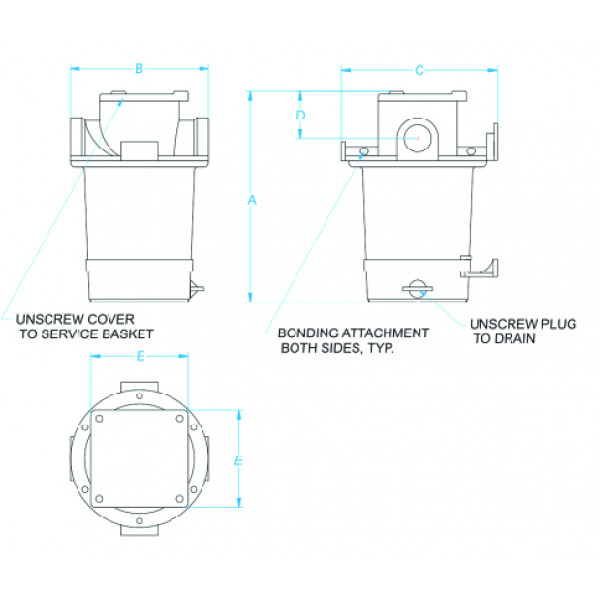

dimensions image
 Download Image  Open in New Window
Individual Parts

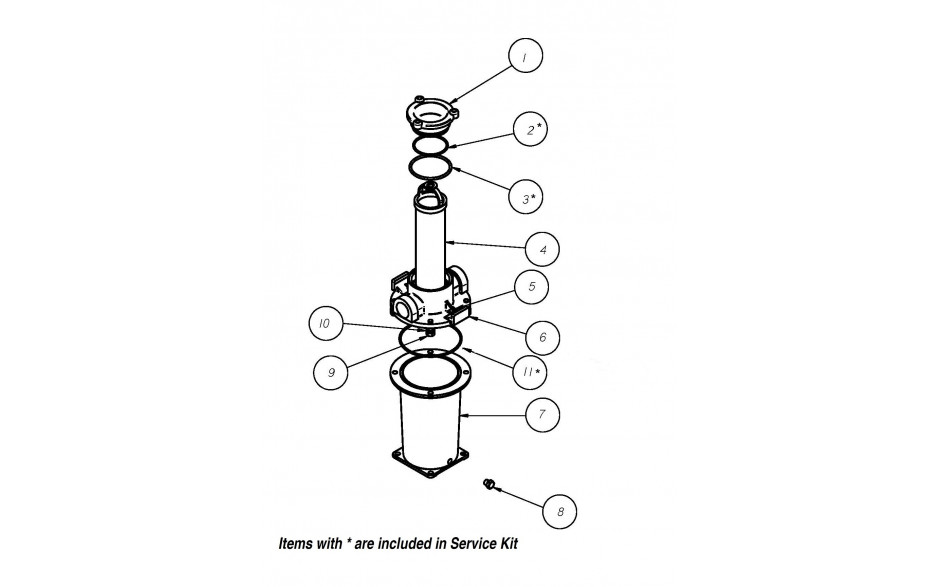

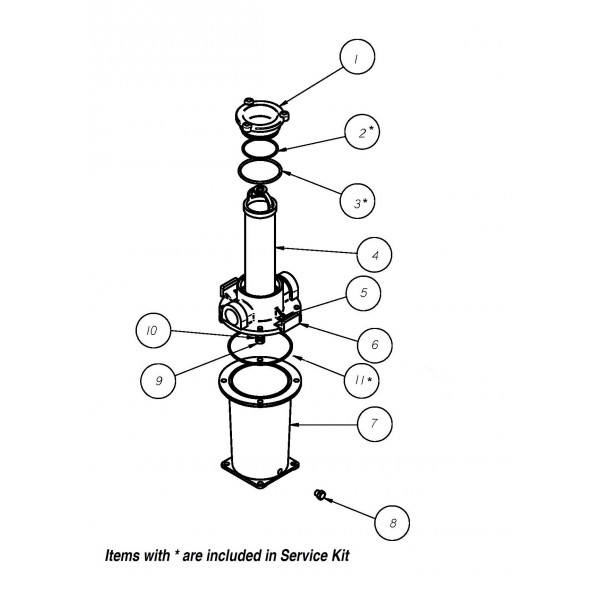

exploded image
 Download Image  Open in New Window
  • 1
    ARG-1501-C
    $128.00
    Qty Per Unit: 1
  • 2
    2-238
    $2.00
    Qty Per Unit: 1
  • 3
    2-234
    $2.00
    Qty Per Unit: 1
  • 4
    BP-8
    $53.00
    Qty Per Unit: 1
  • 5
    1024X14HB
    $2.00
    Qty Per Unit: 2
  • 6
    ARG-2010-H
    $519.00
    Qty Per Unit: 1
  • 7
    AARG-2003
    $1,397.00
    Qty Per Unit: 1
  • 8
    1827HB
    $3.00
    Qty Per Unit: 2
  • 9
    1420X34HS
    $1.00
    Qty Per Unit: 6
  • 10
    14SS
    $1.00
    Qty Per Unit: 6
  • 11
    2-256
    $3.00
    Qty Per Unit: 1
  • 12
    ARG-3
    $17.00
    Qty Per Unit: 1
