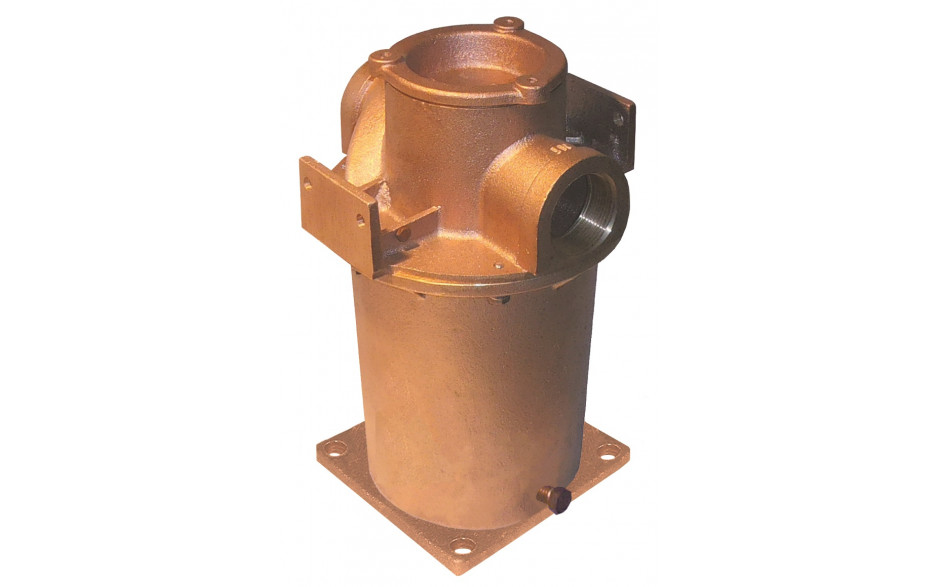

AARG-500-S
1/2" Raw Water Strainer with #304 SS Basket
Features:
- ABS Compliant Raw ARG Water Strainer
- 100% Bronze Strainer (Cap, Head, Cylinder, and Drain Plug)
- O-Ring Seal All Joining Surfaces
- Filter Basket Options
- #304 SS (Standard)
- Monel
- Non-Metallic
- Bonding Connection Both Sides
- NPT or BSPP Threaded Ports
- Improved Basket Design
- C84400 Bronze Cap, Casting, and Enclosure
- UL Listed 255-D
Additional Information
Spec Sheet | No |
---|---|
Basket Type | #304 Stainless Steel (-S Suffix) |
Thread NPT | 1/2" |
Open Area Ratio | 54 |
Dimensions
Thread NPT | 1/2" |
A | 6.4 |
B | 5.5 |
C | 5.3 |
D | 1.5 |
E | 3.3 |
Open Area Ratio | 54 |

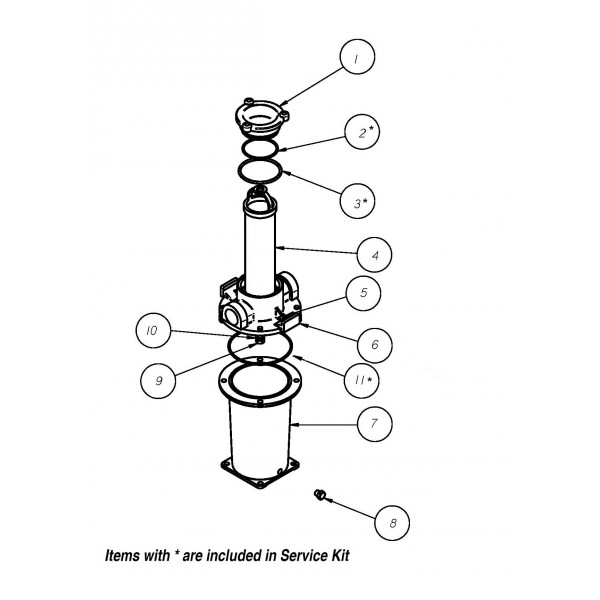

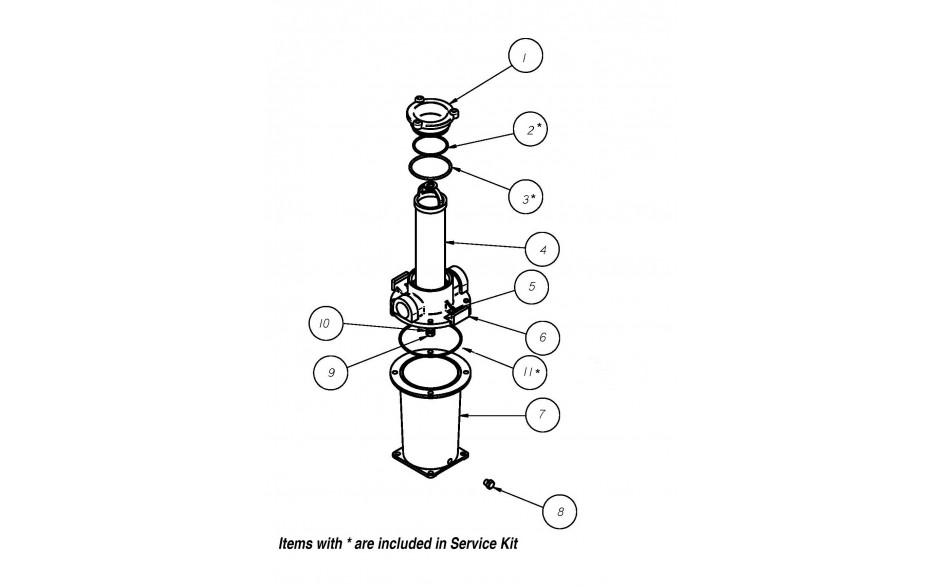

Individual Parts
-
1ARG-501-C$52.00Qty Per Unit: 1
-
22-228$1.00Qty Per Unit: 1
-
32-135$1.00Qty Per Unit: 1
-
4BS-1$34.00Qty Per Unit: 1
-
51024X14HB$2.00Qty Per Unit: 2
-
6ARG-510-H$186.00Qty Per Unit: 1
-
81827HB$3.00Qty Per Unit: 2
-
91420X34HS$1.00Qty Per Unit: 4
-
1014SS$1.00Qty Per Unit: 4
-
112-153$2.00Qty Per Unit: 1
-
12ARG-1$14.00Qty Per Unit: 1
