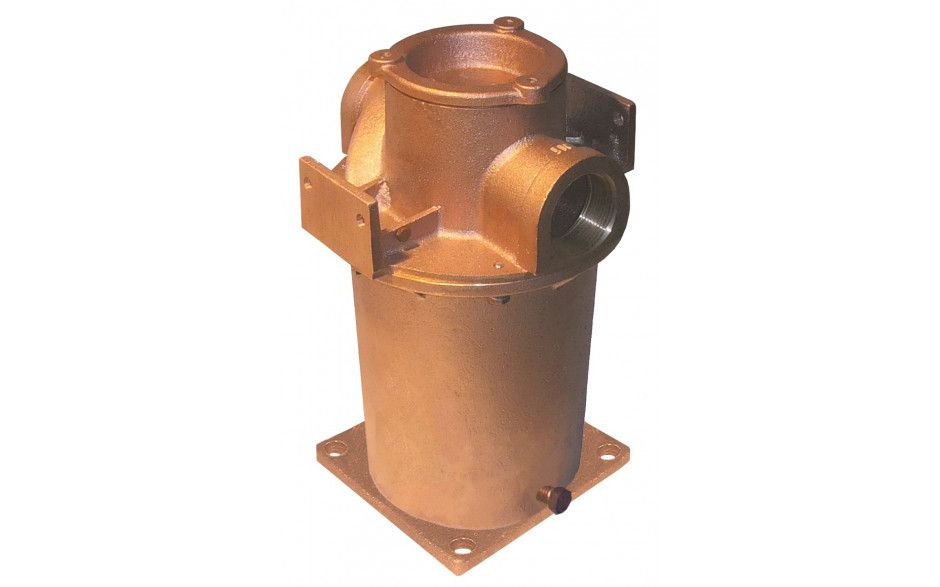

AARG-500 Series

1/2" Raw Water Strainer

Features:

  • ABS Compliant Raw ARG Water Strainer
  • 100% Bronze Strainer (Cap, Head, Cylinder, and Drain Plug)
  • O-Ring Seal All Joining Surfaces
  • Filter Basket Options
    • #304 SS (Standard)
    • Monel
    • Non-Metallic
  • Bonding Connection Both Sides
  • NPT or BSPP Threaded Ports
  • Improved Basket Design
  • C84400 Bronze Cap, Casting, and Enclosure
  • UL Listed 255-D

Additional Information
Spec Sheet No
Thread NPT 1/2"
Open Area Ratio 54
Dimensions
Thread NPT1/2"
A6.4
B5.5
C5.3
D1.5
E3.3
Open Area Ratio54
dimensions image
 Download Image  Open in New Window

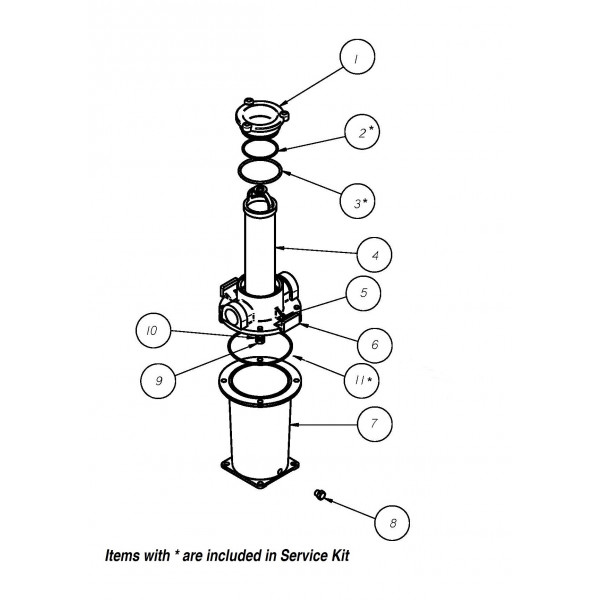

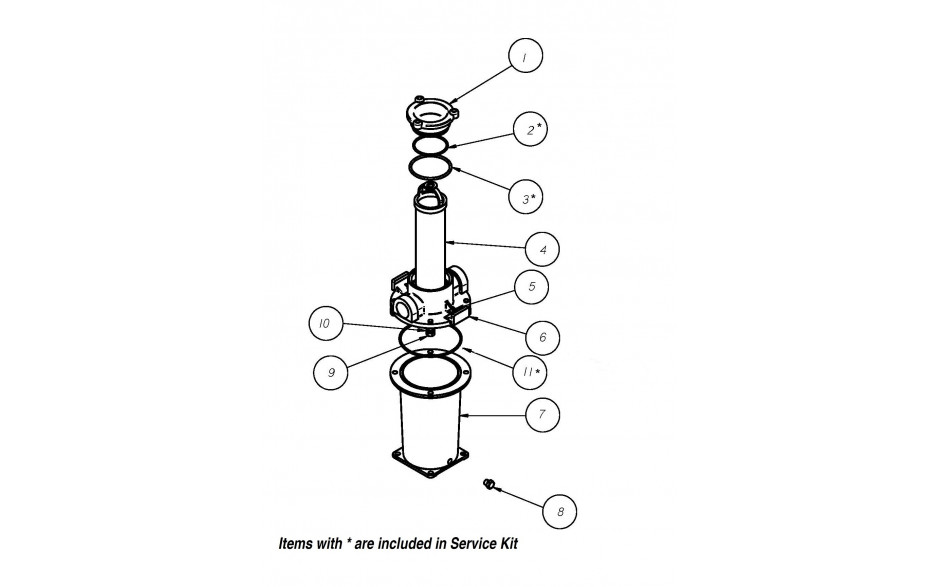

Individual Parts
exploded image
 Download Image  Open in New Window
  • 1
    ARG-501-C
    $52.00
    Qty Per Unit: 1
  • 2
    2-228
    $1.00
    Qty Per Unit: 1
  • 3
    2-135
    $1.00
    Qty Per Unit: 1
  • 4
    BS-1
    $34.00
    Qty Per Unit: 1
  • 4
    BM-1
    $57.00
    Qty Per Unit: 1
  • 4
    BP-1
    $31.00
    Qty Per Unit: 1
  • 5
    1024X14HB
    $2.00
    Qty Per Unit: 2
  • 6
    ARG-510-H
    $186.00
    Qty Per Unit: 1
  • 8
    1827HB
    $3.00
    Qty Per Unit: 2
  • 9
    1420X34HS
    $1.00
    Qty Per Unit: 4
  • 10
    14SS
    $1.00
    Qty Per Unit: 4
  • 11
    2-153
    $2.00
    Qty Per Unit: 1
  • 12
    ARG-1
    $14.00
    Qty Per Unit: 1
