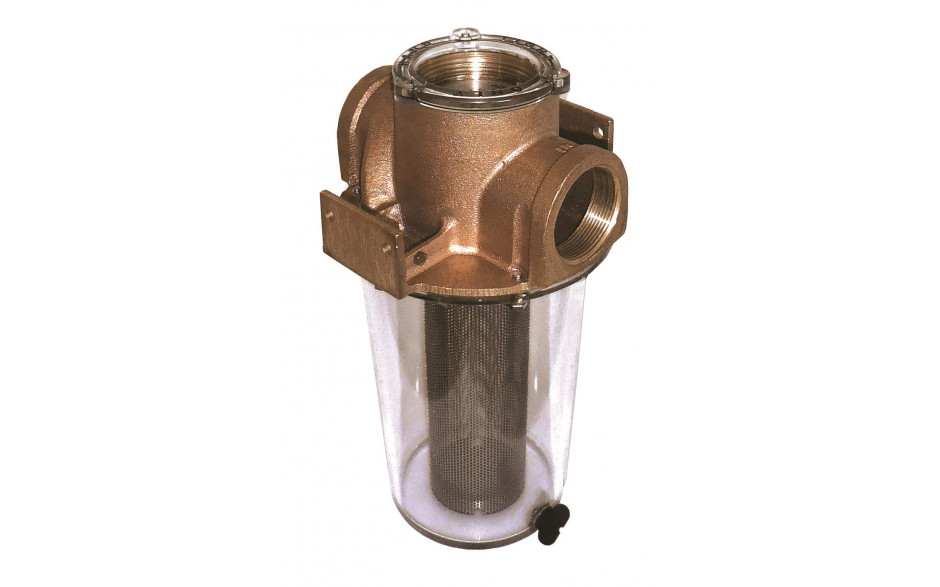

ARG-500 BSPP
Raw Water Strainer with Monel Basket
Features:
- Mounting System Allows Removal Without Tools
- Bonding Connection Both Sides
- O-Ring Seal All Joining Surfaces
- Filter Basket Options
- #304 SS (Standard)
- Monel
- Non-Metallic
- One-Piece Molded Sight Glass Eliminates Tie Rods and Gaskets
- Improved Drain Plug
- Non-Metallic Cap Magnifies Internal Viewing
- BSPP Threaded Ports
- Improved Basket Design
- C84400 bronze head casting
- UL Listed 255-D
Additional Information
Basket Type | Monel |
---|---|
Thread BSPP | 1/2" |
Open Area Ratio | 54 |
Dimensions
Thread BSPP | 1/2" |
A | 6.4 |
B | 5.5 |
C | 5.3 |
D | 1.5 |
E | - |
Open Area Ratio | 54 |
Individual Parts
-
2ARG-503$49.00Qty Per Unit: 1
-
3ARG-756$4.00Qty Per Unit: 1
-
4ARG-501-PC$20.00Qty Per Unit: 1
-
5PFW-2 SET$3.00Qty Per Unit: 1
-
614SS$1.00Qty Per Unit: 4
-
71420X34HS$1.00Qty Per Unit: 4
-
81024X14HB$2.00Qty Per Unit: 2
-
9ARG-505$7.00Qty Per Unit: 1
-
10ARG-504$8.00Qty Per Unit: 1
-
11ARG-502$5.00Qty Per Unit: 1
-
122-228$1.00Qty Per Unit: 1
-
132-111$1.00Qty Per Unit: 1
-
142-135$1.00Qty Per Unit: 1
-
152-153$2.00Qty Per Unit: 1
-
16BM-1$57.00Qty Per Unit: 1
-
17ARG-1$14.00Qty Per Unit: 1
