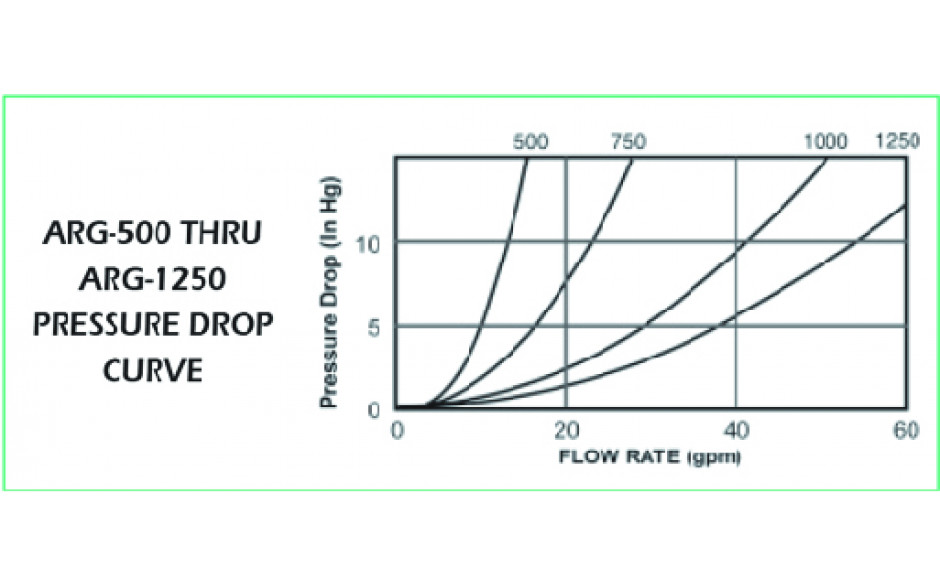

  • flow-chart

ARG-750-P BSPP

Raw Water Strainer with Plastic Basket

Features:

  • Mounting System Allows Removal Without Tools
  • Bonding Connection Both Sides
  • O-Ring Seal All Joining Surfaces
  • Filter Basket Options
    • #304 SS (Standard)
    • Monel
    • Non-Metallic
  • One-Piece Molded Sight Glass Eliminates Tie Rods and Gaskets
  • Improved Drain Plug
  • Non-Metallic Cap Magnifies Internal Viewing
  • BSPP Threaded Ports
  • Improved Basket Design
  • C84400 bronze head casting
  • UL Listed 255-D

Additional Information
Basket Type Plastic (-P Suffix)
Thread BSPP 3/4"
Open Area Ratio 36
Dimensions
Thread BSPP3/4"
A8.4
B4.5
C5.3
D1.5
E -
Open Area Ratio36
dimensions image
 Download Image  Open in New Window
Individual Parts
exploded image
 Download Image  Open in New Window
  • 2
    ARG-753
    $59.00
    Qty Per Unit: 1
  • 3
    ARG-756
    $4.00
    Qty Per Unit: 1
  • 4
    ARG-501-PC
    $20.00
    Qty Per Unit: 1
  • 5
    PFW-2 SET
    $3.00
    Qty Per Unit: 1
  • 6
    14SS
    $1.00
    Qty Per Unit: 4
  • 7
    1420X34HS
    $1.00
    Qty Per Unit: 4
  • 8
    1024X14HB
    $2.00
    Qty Per Unit: 2
  • 9
    ARG-505
    $7.00
    Qty Per Unit: 1
  • 10
    ARG-504
    $8.00
    Qty Per Unit: 1
  • 11
    ARG-502
    $5.00
    Qty Per Unit: 1
  • 12
    2-228
    $1.00
    Qty Per Unit: 1
  • 13
    2-111
    $1.00
    Qty Per Unit: 1
  • 14
    2-135
    $1.00
    Qty Per Unit: 1
  • 15
    2-153
    $2.00
    Qty Per Unit: 1
  • 16
    BP-2
    $32.00
    Qty Per Unit: 1
  • 17
    ARG-1
    $14.00
    Qty Per Unit: 1
