ASA-1250

 1-1/4" Raw Water Strainer with Monel Basket

 FEATURES

  • Standard with #304 stainless steel filter basket. (Monel is optional)
  • Monel inside tie rod and #316 Stainless Steel outer tie rods.
  • Easy service with spin-off-wingnut.
  • C84400 bronze construction.
  • #316 SS Enclosure for ABS compliance
  • Fine mesh filter baskets are also available.

Additional Information
Spec Sheet No
Basket Type Monel
Thread NPT 1-1/4"
Open Area Ratio 25

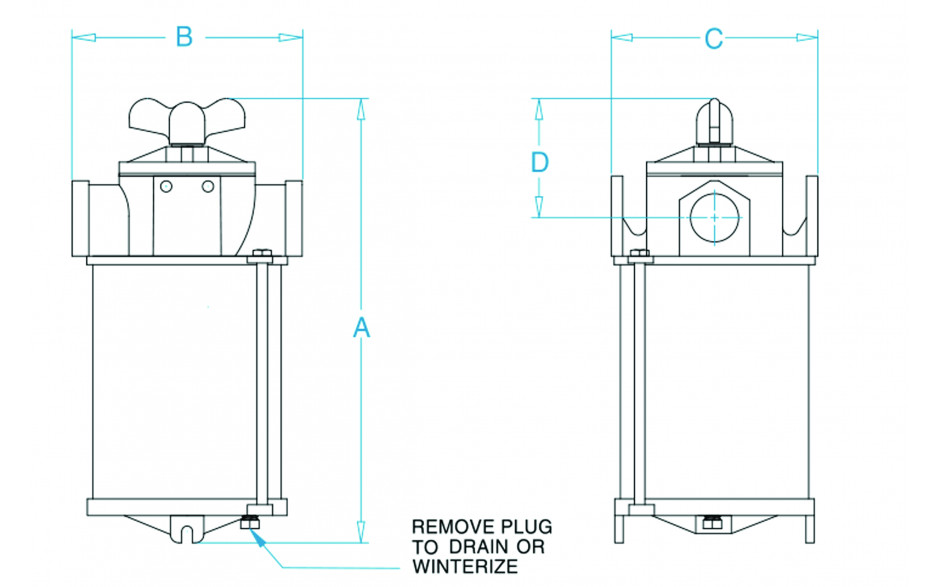

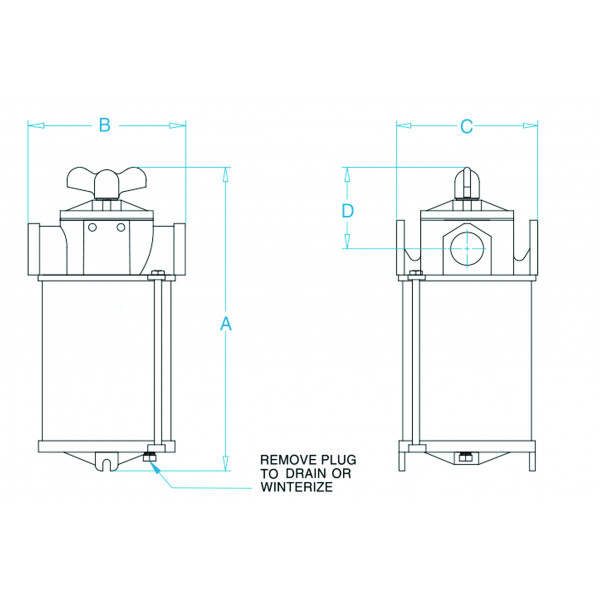

Dimensions
Thread NPT1-1/4"
A12.8
B5.5
C5
D2.8
E -
Open Area Ratio25
dimensions image
 Download Image  Open in New Window

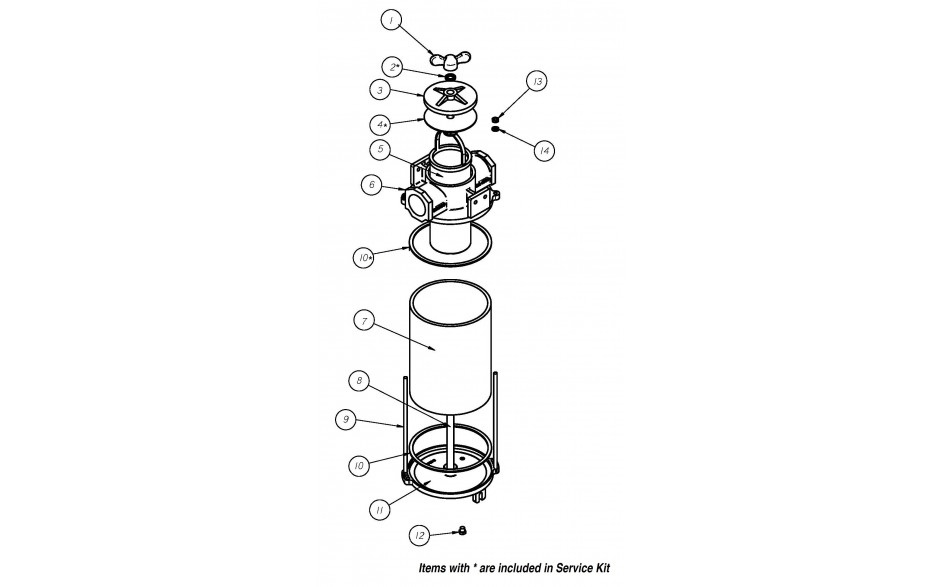

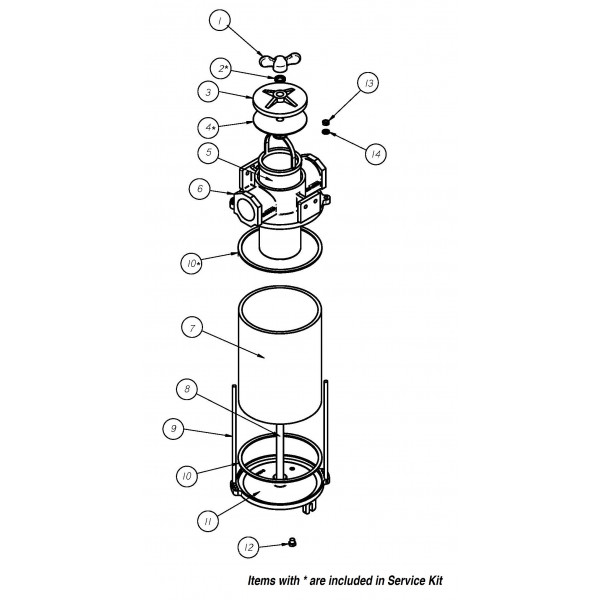

Individual Parts
exploded image
 Download Image  Open in New Window
  • 1
    SVS-5
    $15.00
    Qty Per Unit: 1
  • 2
    500-K
    $1.00
    Qty Per Unit: 1
  • 3
    S-751
    $51.00
    Qty Per Unit: 1
  • 4
    S-751-A
    $3.00
    Qty Per Unit: 1
  • 5
    BM-5
    $104.00
    Qty Per Unit: 1
  • 6
    S-1250-A
    $214.00
    Qty Per Unit: 1
  • 7
    AS-77-A
    $177.00
    Qty Per Unit: 1
  • 8
    S-72-A
    $91.00
    Qty Per Unit: 1
  • 9
    S-73-B
    $8.00
    Qty Per Unit: 2
  • 10
    #8R SET
    $13.00
    Qty Per Unit: 2
  • 11
    S-73-A
    $90.00
    Qty Per Unit: 1
  • 12
    1827HB
    $3.00
    Qty Per Unit: 1
  • 13
    1420HS
    $1.00
    Qty Per Unit: 2
  • 14
    14SS
    $1.00
    Qty Per Unit: 2
  • 15
    SA-2
    $28.00
    Qty Per Unit: 1
