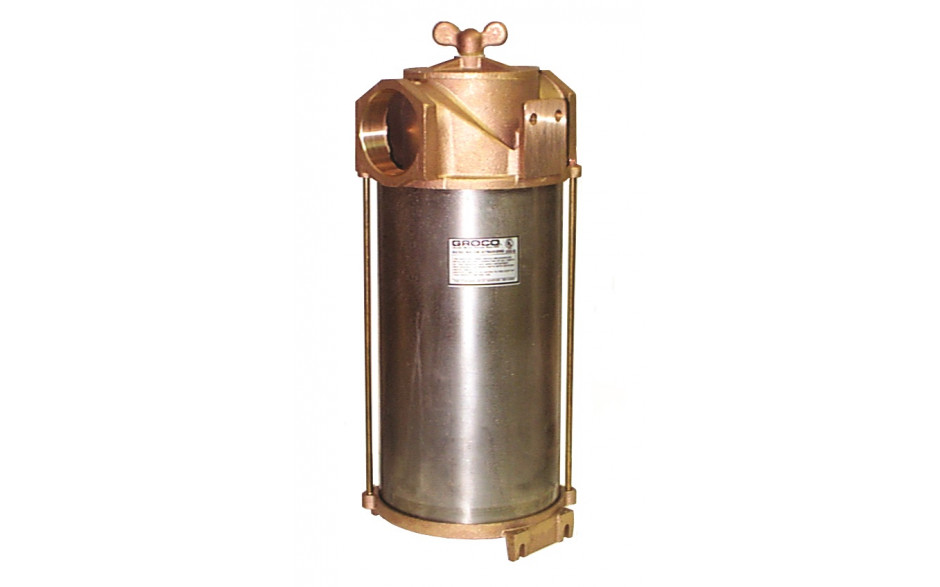

ASD-1500-S
1-1/2" High Capacity Raw Water Strainer with #304 SS Basket
FEATURES
- Greater filtering capacity than GROCO ARG or SA model strainers.
- Improved cylindrical filter basket.
- Improved design secures filter basket under all flow conditions.
- O-rings seal all mating surfaces.
- Monel inside tie rod.
- C84400 bronze construction.
- #316 SS Enclosure for ABS compliance
- Easy service is provided by the spin-off wingnut.
- UL Listed 255D
Additional Information
| Spec Sheet | No |
|---|---|
| Basket Type | #304 Stainless Steel (-S Suffix) |
| Thread NPT | 1-1/2" |
| Open Area Ratio | 36 |

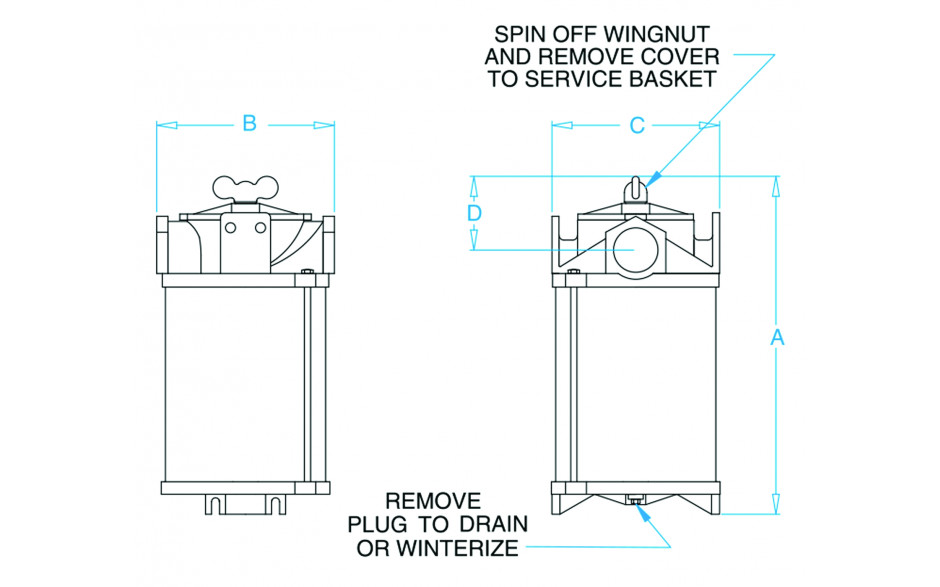

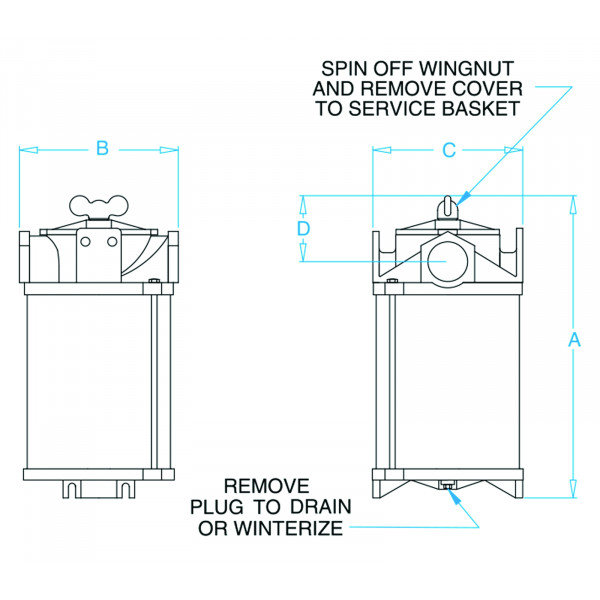

Dimensions
| Thread NPT | 1-1/2" |
| A | 14.5 |
| B | 8.9 |
| C | 8.4 |
| D | 3.8 |
| E | - |
| Open Area Ratio | 36 |

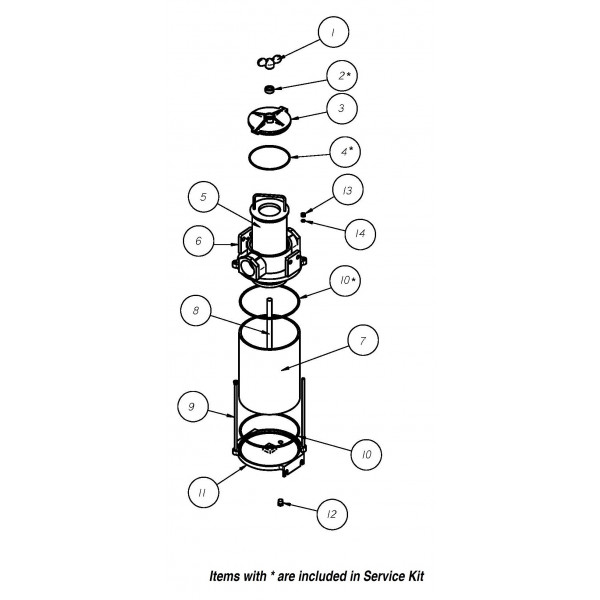

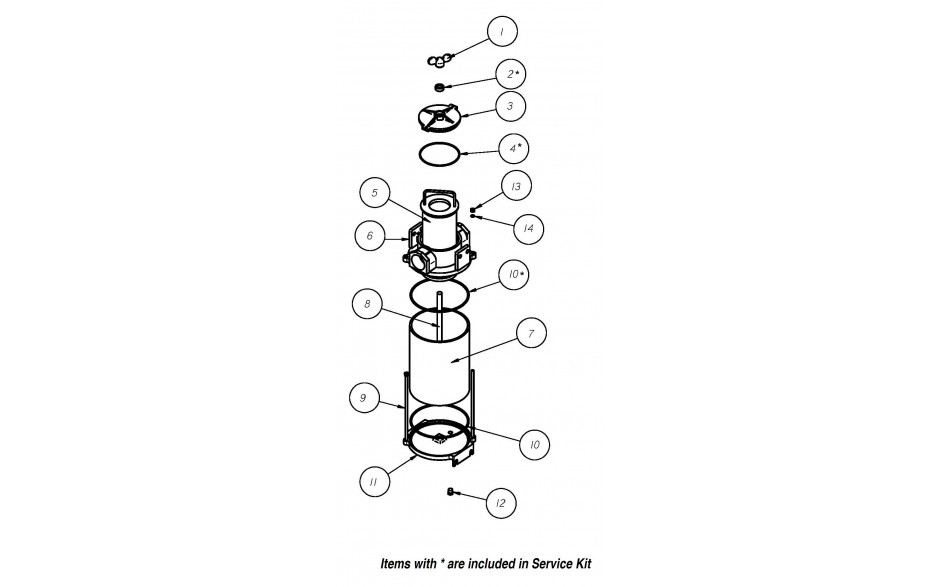

Individual Parts
-
1S-85$39.00Qty Per Unit: 1
-
2SD-11$4.00Qty Per Unit: 1
-
3SD-14$196.00Qty Per Unit: 1
-
42-251$3.00Qty Per Unit: 1
-
5SSD-17-D$213.00Qty Per Unit: 1
-
6SD-1500-H$750.00Qty Per Unit: 1
-
7ASD-21-D$1,047.00Qty Per Unit: 1
-
8SD-15-D$259.00Qty Per Unit: 1
-
9SD-20-D$10.00Qty Per Unit: 2
-
102-367$5.00Qty Per Unit: 2
-
11SD-16$310.00Qty Per Unit: 1
-
121418HB$5.00Qty Per Unit: 1
-
1351618HS$1.00Qty Per Unit: 2
-
14516SS$1.00Qty Per Unit: 2
-
15SD$32.00Qty Per Unit: 1
