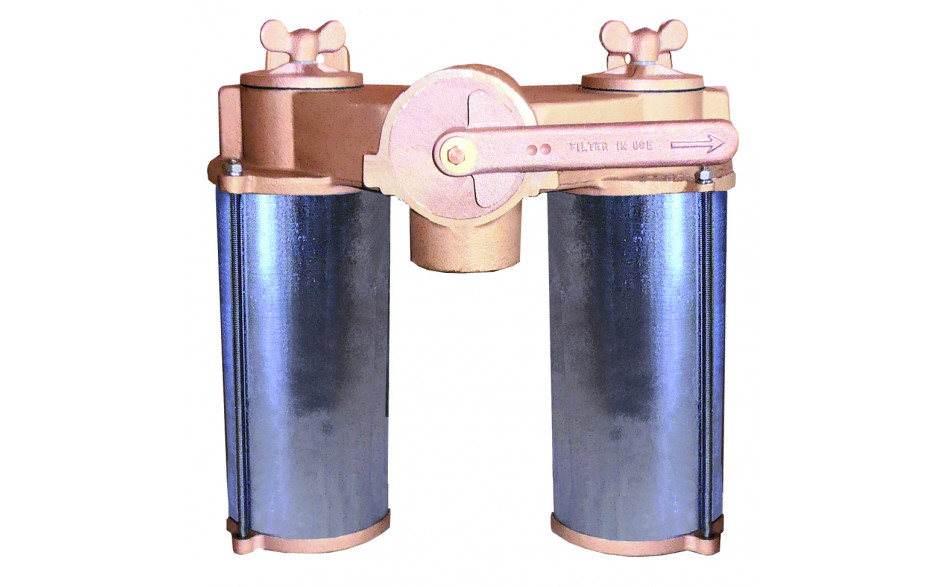

AVD-1000
1" Duplex Strainer with Monel Basket
FEATURES
- ABS Compliant.
- C84400 bronze construction.
- Standard with #304 stainless steel filter basket. (Monel is optional)
- Monel inside tie rod.
- Easy service with spin-off-wingnut.
- Fine mesh filter basket is also available.
Additional Information
Spec Sheet | No |
---|---|
Basket Type | Monel |
Thread NPT | 1" |
Open Area Ratio | 30 |

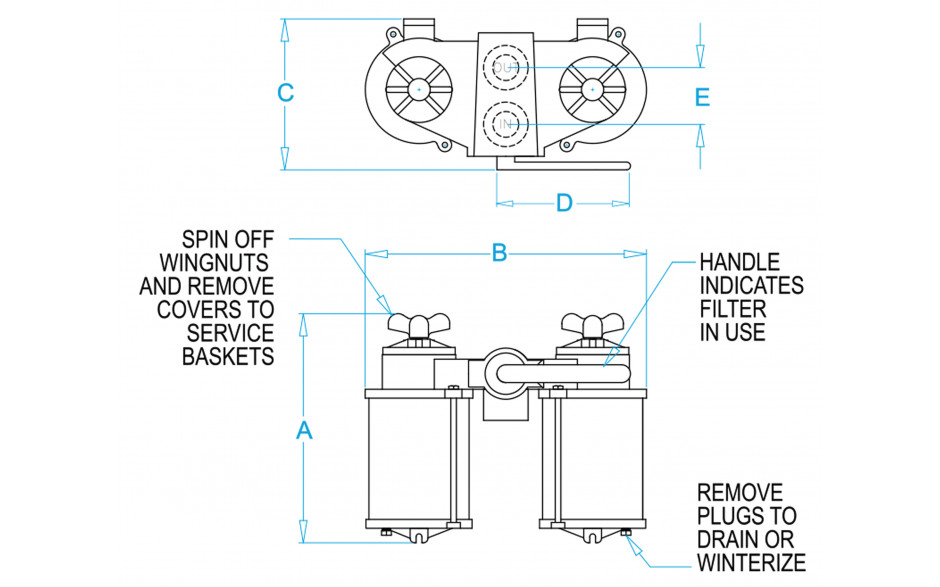

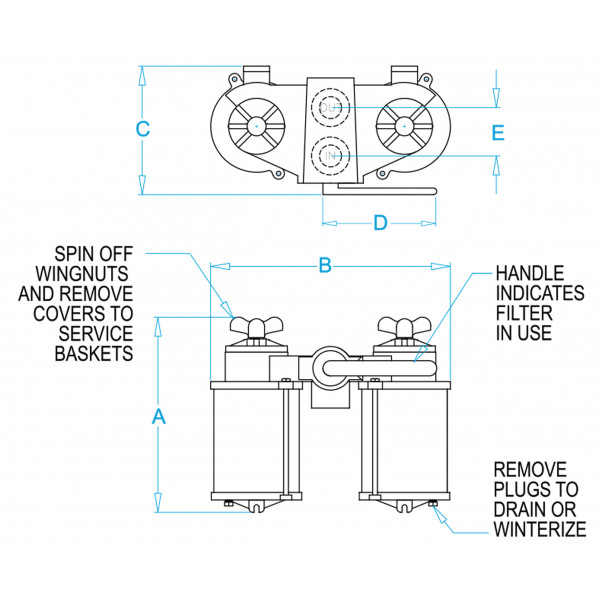

Dimensions
Thread NPT | 1" |
A | 10 |
B | 13 |
C | 6.8 |
D | 3.5 |
E | 3.3 |
Open Area Ratio | 30 |

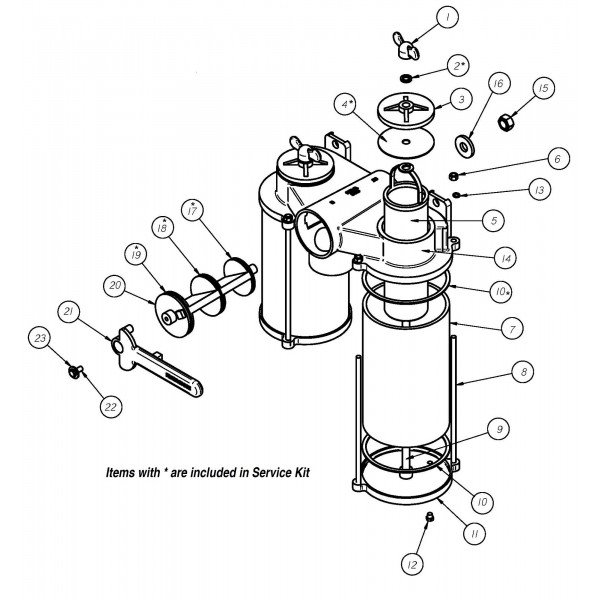

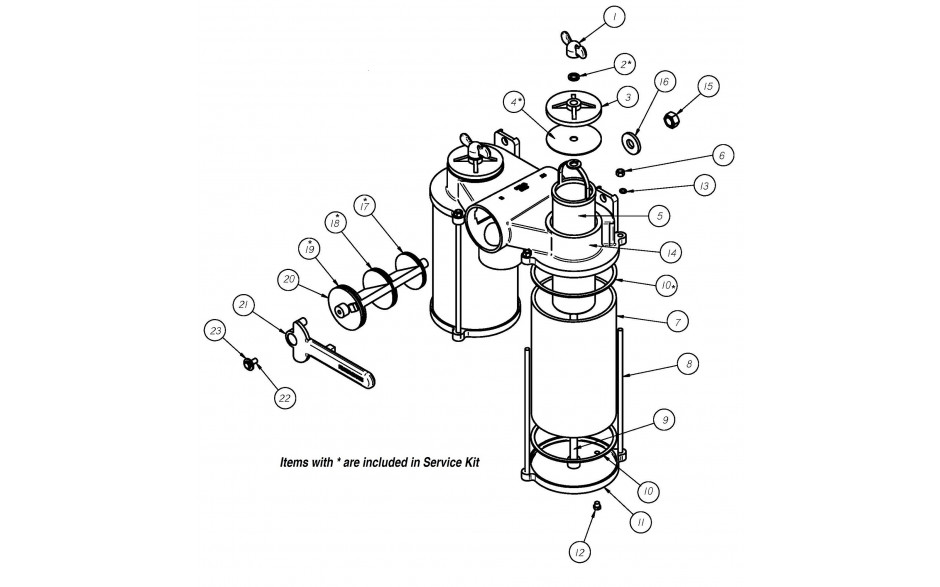

Individual Parts
-
1SVS-5$15.00Qty Per Unit: 2
-
2500-K$1.00Qty Per Unit: 2
-
3S-751$51.00Qty Per Unit: 2
-
4S-751-A$3.00Qty Per Unit: 2
-
5BM-3$86.00Qty Per Unit: 1
-
61420HS$1.00Qty Per Unit: 4
-
7AS-77$135.00Qty Per Unit: 1
-
8S-73-X$6.00Qty Per Unit: 4
-
9S-73-D$72.00Qty Per Unit: 2
-
10#8R SET$13.00Qty Per Unit: 2
-
11S-73-A$90.00Qty Per Unit: 2
-
121827HB$3.00Qty Per Unit: 2
-
1314SS$1.00Qty Per Unit: 4
-
151220HB$3.00Qty Per Unit: 1
-
16VD-A$5.00Qty Per Unit: 1
-
172-218$1.00Qty Per Unit: 1
-
192-222$1.00Qty Per Unit: 1
-
23VD-1000 BPA$821.00Qty Per Unit: 1
-
24VD-1$41.00Qty Per Unit: 1
