BV-750 test
- Includes one grease zerk fitting for lubrication (use only with the valve in the open position), and one drain plug. The zerk can also be used for draining.
- Tri-flange base and mount hole pattern provide easy retrofit when replacing most popular brands.
- Patented selectable handle rotation.
- Handle has square hole to accept standard ratchet to help reach valves in hard-to-reach locations and ease actuation of difficult to operate valves.
- Full flow.
- Stainless steel ball and stem.
- PTFE seats and seals.
- Serviceable while installed.
- Base has bonding attachment.
- UL Listed 647B

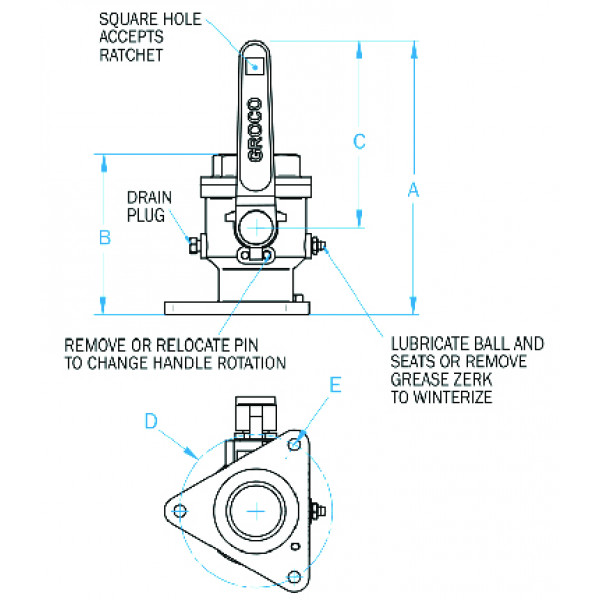

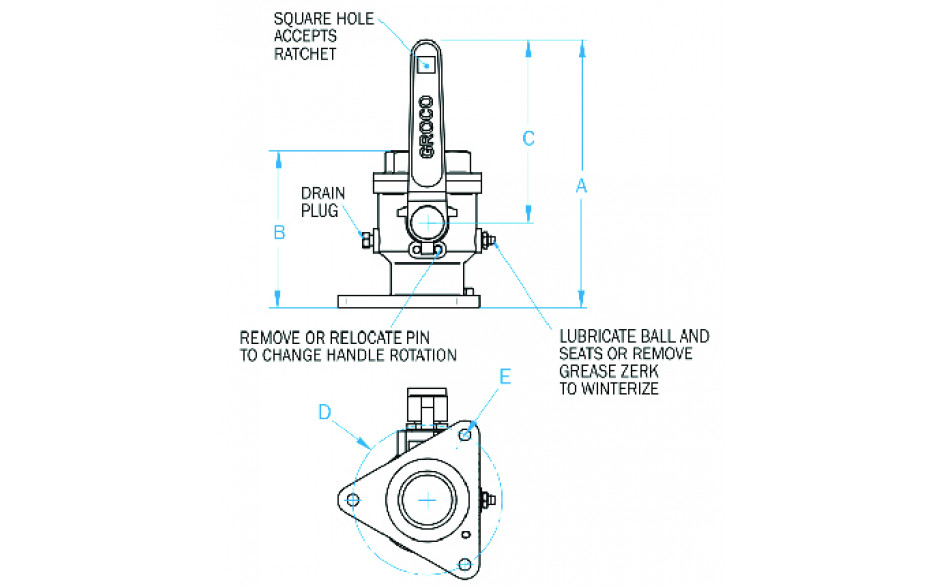

Dimensions
| Thread Bottom NPS | No |
| Thread Top NPT | No |
| A | 5.75 in. |
| B | 3.5 in. |
| C | 3.8 in. |
| D | 3.12 in. |
| E | 5/16 in. |

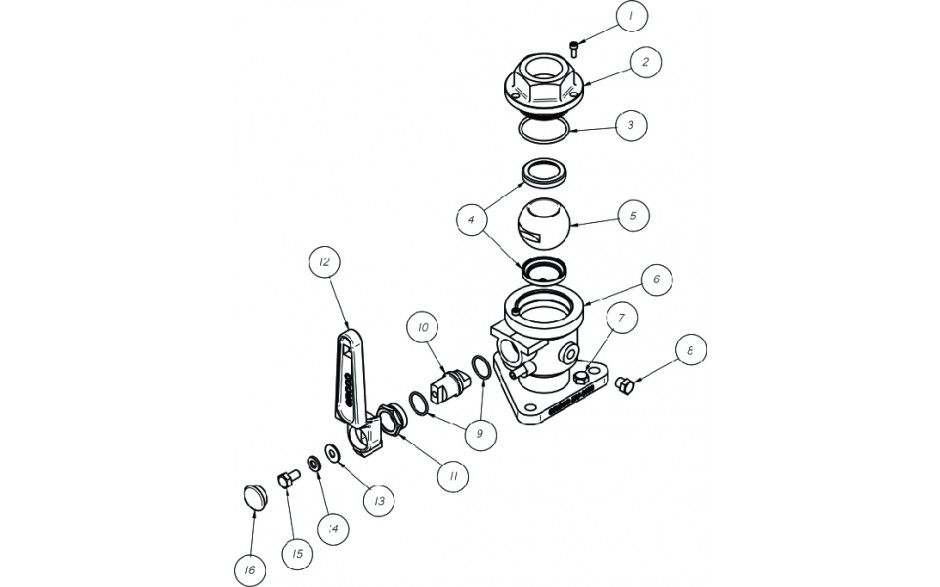

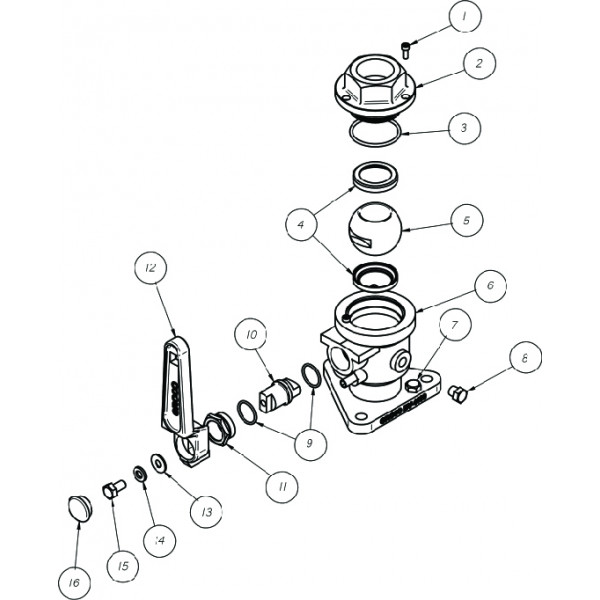

Individual Parts
-
2BV-756$7.00Qty Per Unit: 1
-
32-122$1.00Qty Per Unit: 5
-
4BV-752$38.00Qty Per Unit: 2
-
5BV-754$17.00Qty Per Unit: 2
-
6BV-750-BT$131.00Qty Per Unit: 1
-
81827HB$3.00Qty Per Unit: 1
