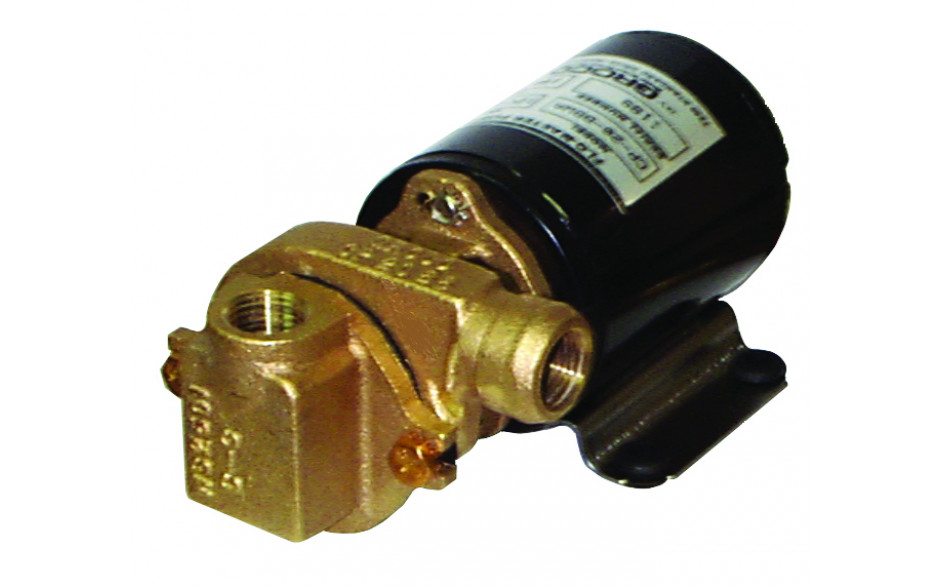

CP-20-BBWA 12V

Bronze Automotive Centrifugal Booster Pump

Features:

  • Bronze construction.
  • #400 SS motor shaft.
  • Continuous-duty face seal.
  • Inlet 1/2" NPT Outlet 1/2" NPT or 1" Hose.
  • "Ignition Protected" ball bearing motor.
  • Metal Base.

Additional Information
Inlet 1/2" FNPT
Outlet 1" Hose or 1/2" FNPT
Self Priming No
Max GPM 17
Breaker DC 10 amp

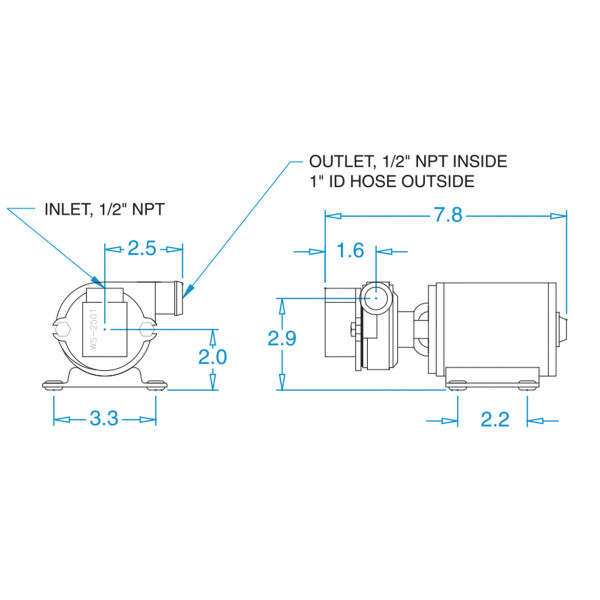

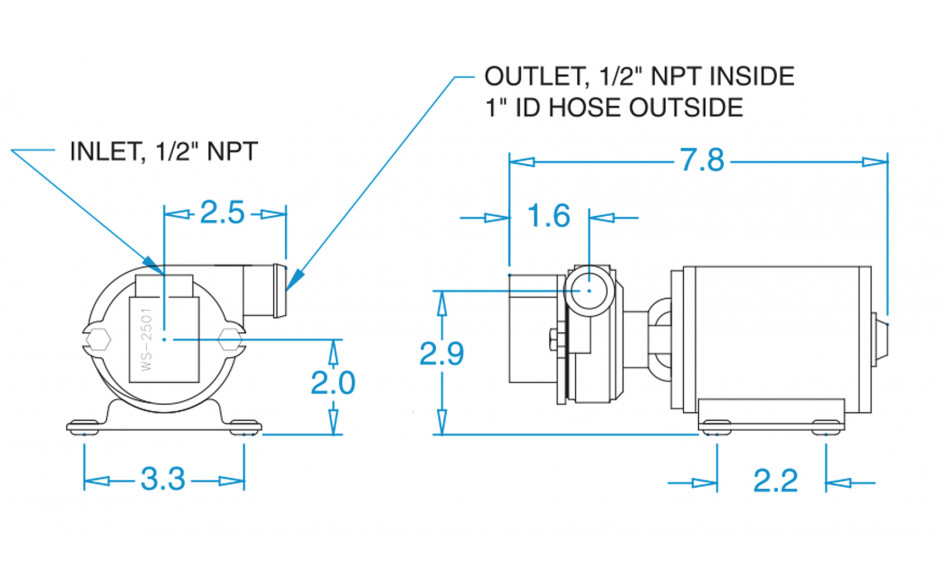

Dimensions
Inlet1/2" FNPT
Outlet1" Hose or 1/2" FNPT
Self PrimingNo
Max GPM17
Breaker DC10 amp
dimensions image
 Download Image  Open in New Window

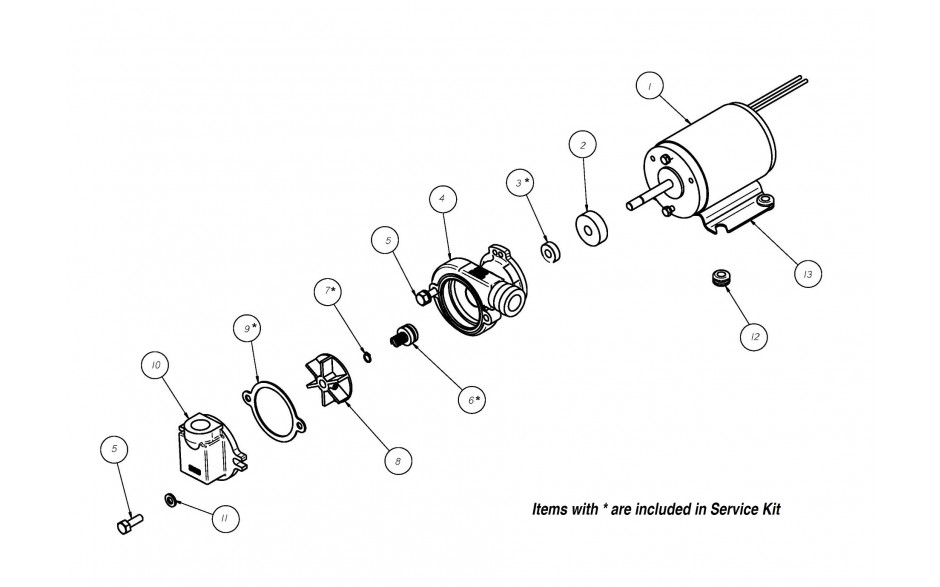

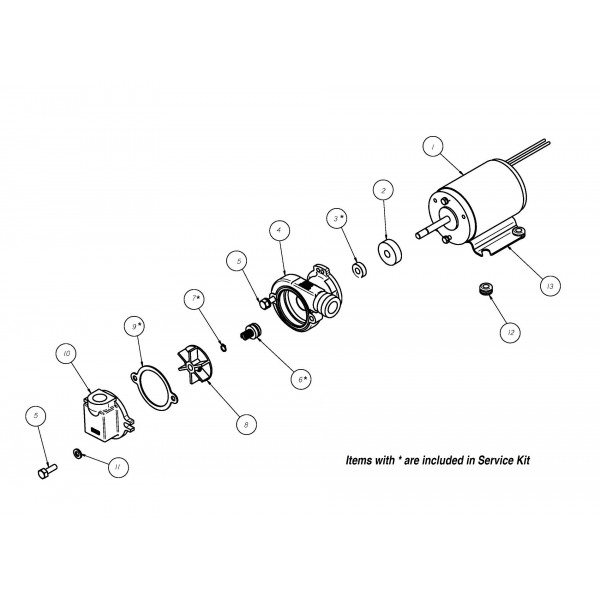

Individual Parts
exploded image
 Download Image  Open in New Window
  • 1
    12V-K
    $205.00
    Qty Per Unit: 1
  • 2
    PFW-27
    $1.00
    Qty Per Unit: 1
  • 3
    031-075-8
    $3.00
    Qty Per Unit: 1
  • 4
    CP-20-BB
    $103.00
    Qty Per Unit: 1
  • 5
    1420X34HS
    $1.00
    Qty Per Unit: 2
  • 6
    69026
    $999,999.99
    Qty Per Unit: 1
  • 7
    SNAP RING-1
    $2.00
    Qty Per Unit: 1
  • 8
    CP-55
    $10.00
    Qty Per Unit: 1
  • 8
    14X14SET
    $2.00
    Qty Per Unit: 1
  • 9
    CP-56
    $3.00
    Qty Per Unit: 1
  • 10
    WS-2501
    $49.00
    Qty Per Unit: 1
  • 11
    14SS
    $1.00
    Qty Per Unit: 2
  • 12
    06-0001-00
    $1.00
    Qty Per Unit: 1
  • 13
    B-200
    $11.00
    Qty Per Unit: 1
  • 14
    P-2
    $64.00
    Qty Per Unit: 1
