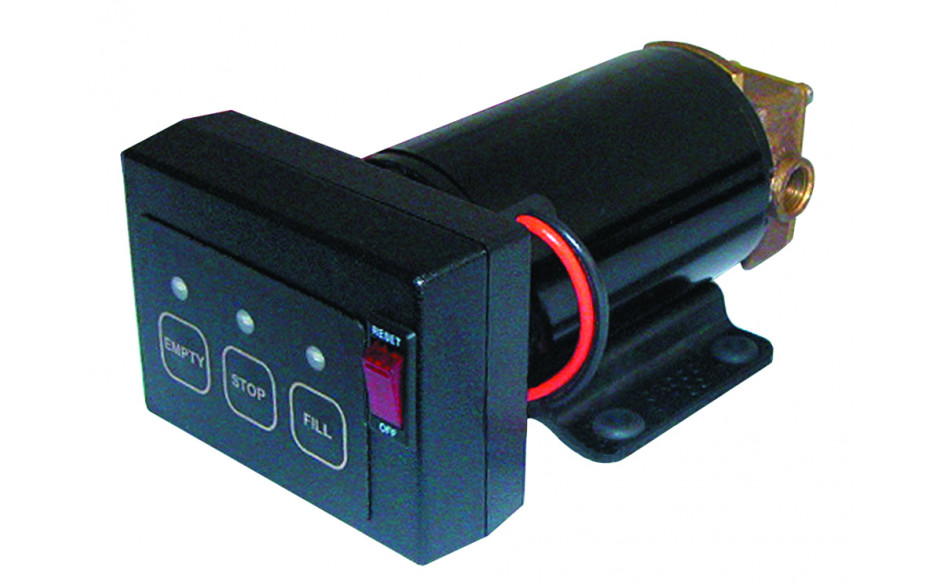

GPBRT-1 24V

Positive Displacement Reversing Gear Pump

The Concept:

    GROCO  Vane Pumps are self-priming, are instantly reversible, and are capable of operation in either direction. Relatively high flow (more than gear pumps) makes them suitable for general purpose duties such as deck-wash, bilge pumping (filtered inlet),  fuel transfer, ballast transfer, and oil change.  All models have an ignition protected motor, #316 stainless steel shaft, and are available in models that provide reversing (R), remote reversing (RR), and  reversing with touchpad (RT) control options. SPO-80 Series Vane Pumps have a more powerful motor and are better suited for long run-time or head pressure greater than 20 PSI.

Additional Information
Self Priming Yes
Thread NPT 3/8"
Control Type Pump Mounted Touch Pad
Max GPM 3
Breaker DC 15 amp
Dimensions
Self PrimingYes
Thread NPT3/8"
Control TypePump Mounted Touch Pad
Max GPM3
Breaker DC15 amp

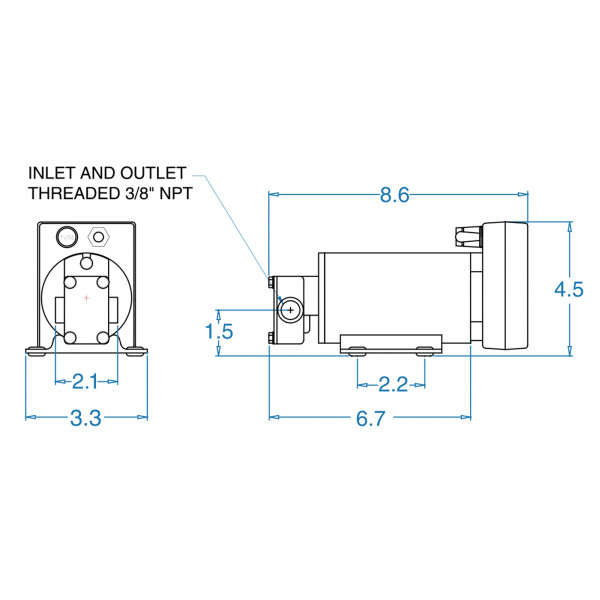

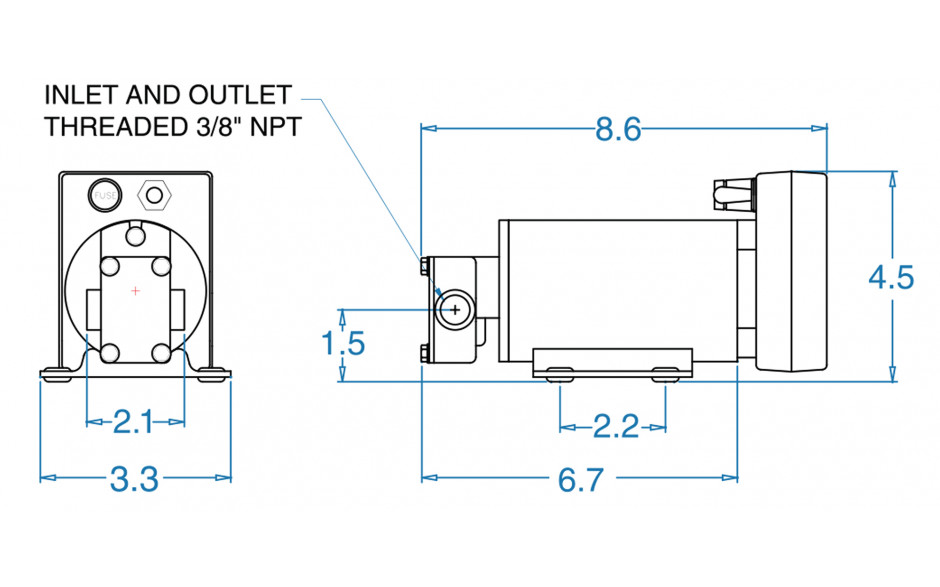

dimensions image
 Download Image  Open in New Window
Individual Parts

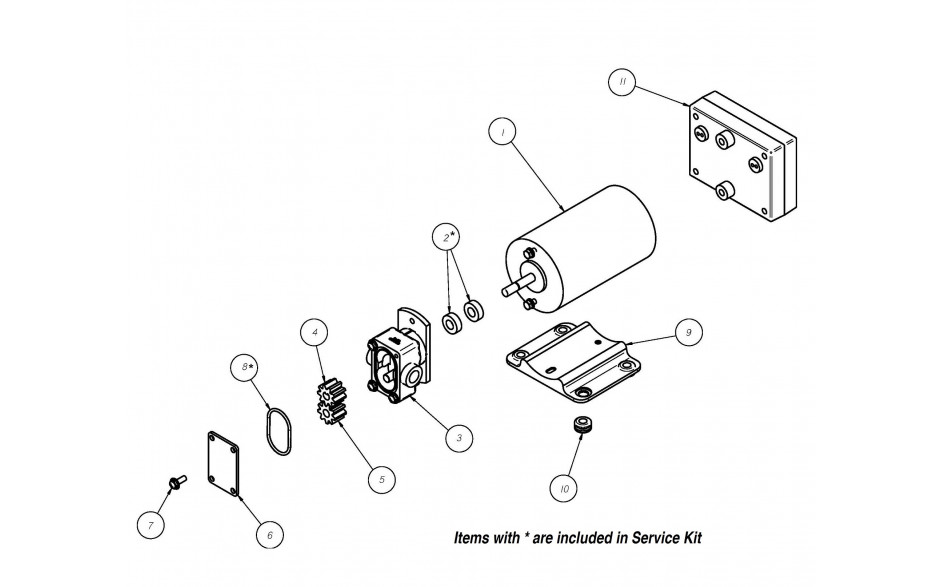

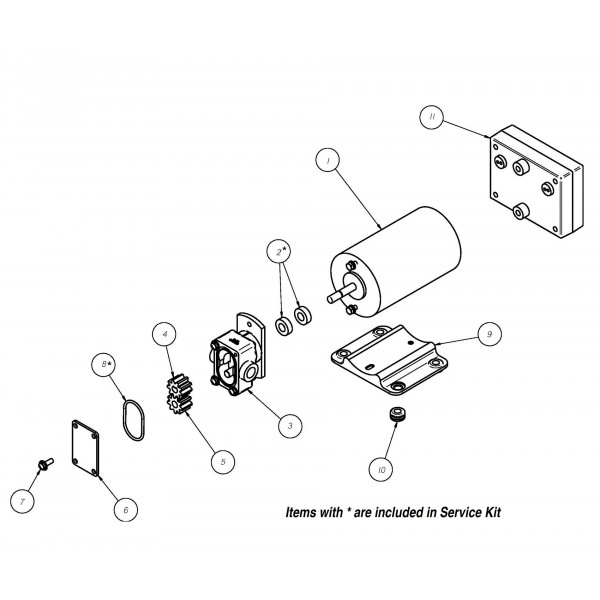

exploded image
 Download Image  Open in New Window
  • 1
    24V-F
    $409.00
    Qty Per Unit: 1
  • 2
    031-075-8
    $3.00
    Qty Per Unit: 2
  • 3
    GP-1-375B
    $133.00
    Qty Per Unit: 1
  • 4
    GP-09-0938
    $17.00
    Qty Per Unit: 1
  • 5
    GPK-09-0938
    $17.00
    Qty Per Unit: 1
  • 6
    GP-1-C
    $13.00
    Qty Per Unit: 1
  • 7
    1032X38HSL
    $3.00
    Qty Per Unit: 4
  • 8
    2-029
    $1.00
    Qty Per Unit: 1
  • 9
    B-200-P
    $5.00
    Qty Per Unit: 1
  • 10
    06-0001-00
    $1.00
    Qty Per Unit: 1
  • 11
    REV-D ASSY
    $484.00
    Qty Per Unit: 1
