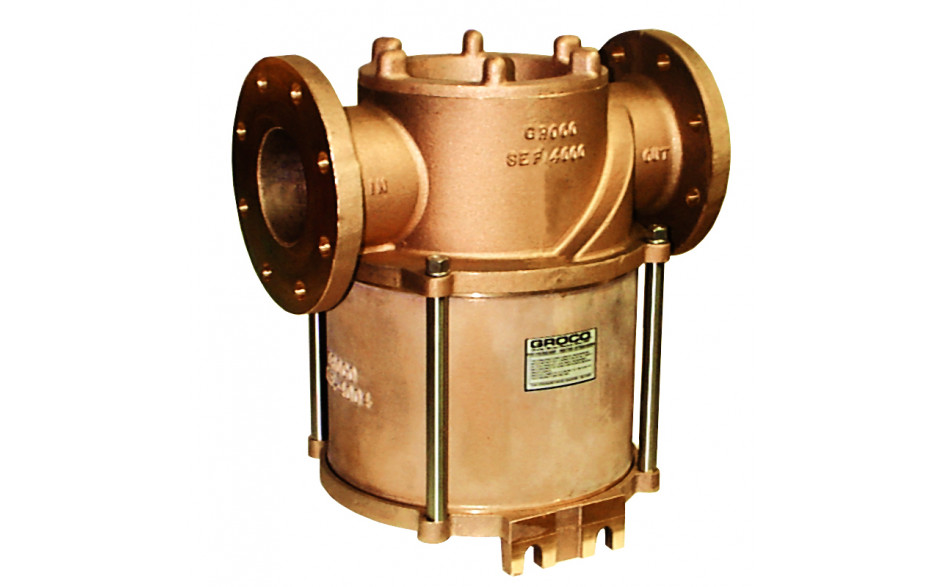

ASEF-5000 Series
5" FLANGE Large Engine Strainer
FEATURES
- For high-powered engines with 4"", 5"" or 6"" intake.
- C84400 bronze construction.
- ABS compliant with cast bronze enclosure.
- Cap and basket have replaceable zinc anode protection.
- Low restriction for maximum cooling water flow.
- No inside tie rods. Cover unscrews for easy filter basket cleaning.
- O-rings seal all mating surfaces.
- All models can be converted to HYDROMATIC (self-cleaning) operation.
- Improved cylindrical filter basket.
- #304-SS basket is standard with .077” holes (.125” and .188” hole sizes are optional).
- Monel basket is optional.
- Bronze flange adaptors are available for connecting pipe or hose to flanged strainers.
Additional Information
| Spec Sheet | No |
|---|---|
| Thread NPT | 5" FLANGE |
| Open Area Ratio | 8.1 |

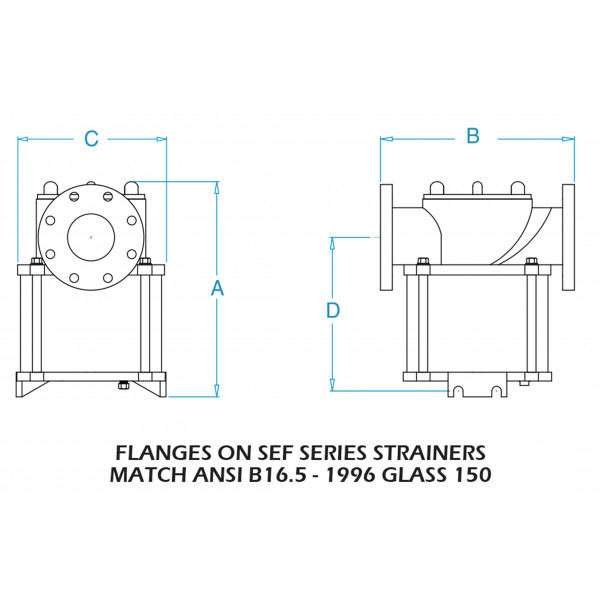

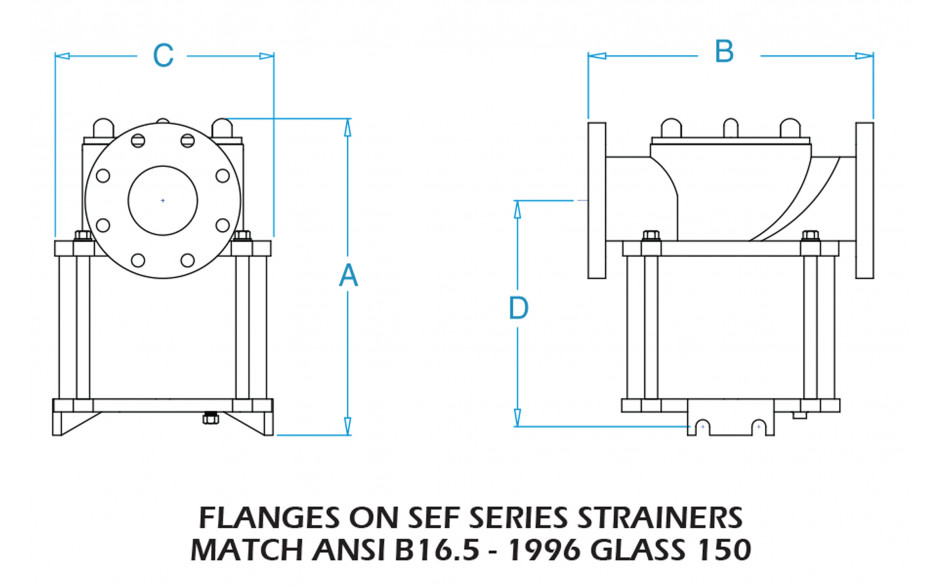

Dimensions
| Thread NPT | 5" FLANGE |
| A | 18.4 |
| B | 16.5 |
| C | 12.5 |
| D | 13.5 |
| E | - |
| Open Area Ratio | 8.1 |

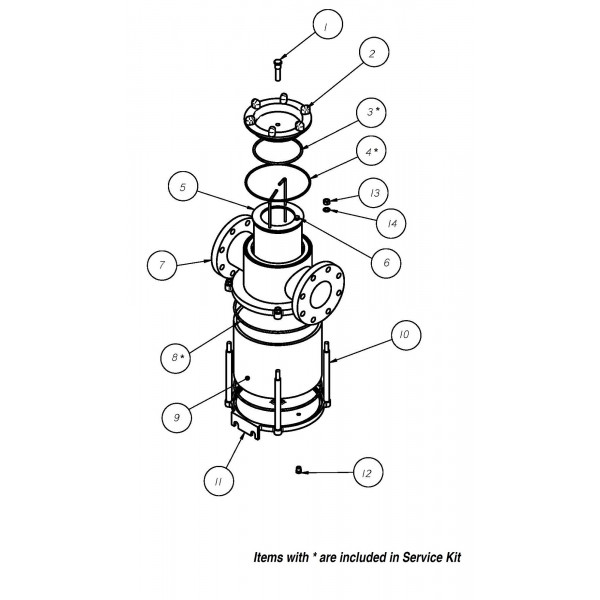

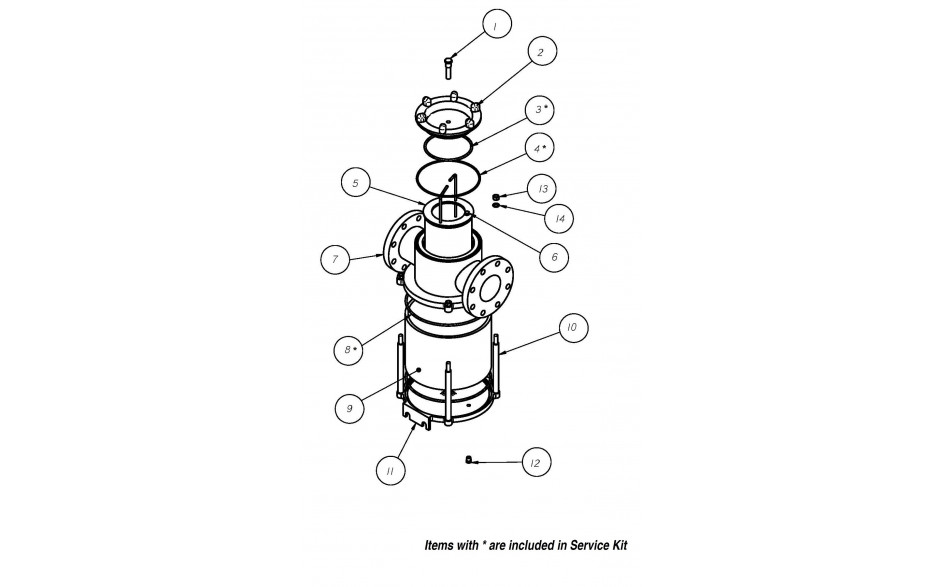

Individual Parts
-
1ZA-2$39.00Qty Per Unit: 1
-
2SE-4001-A$746.00Qty Per Unit: 1
-
32-438$8.00Qty Per Unit: 1
-
42-371$7.00Qty Per Unit: 1
-
5SSE-4003-3$518.00Qty Per Unit: 1
-
5SSE-4003-1$462.00Qty Per Unit: 1
-
5SE-4003-2$497.00Qty Per Unit: 1
-
5SE-4003-1$736.00Qty Per Unit: 1
-
5SSE-4003-2$494.00Qty Per Unit: 1
-
5SE-4003-3$572.00Qty Per Unit: 1
-
6ZA-1$24.00Qty Per Unit: 1
-
7SEF-5010-H$6,762.00Qty Per Unit: 1
-
82-452$11.00Qty Per Unit: 2
-
9ASE-4004$2,035.00Qty Per Unit: 1
-
10SE-4005-1$111.00Qty Per Unit: 4
-
11SE-4002$1,029.00Qty Per Unit: 1
-
121418HB$5.00Qty Per Unit: 1
-
131213HS$2.00Qty Per Unit: 2
-
1412SS$1.00Qty Per Unit: 2
-
15SE$54.00Qty Per Unit: 1
