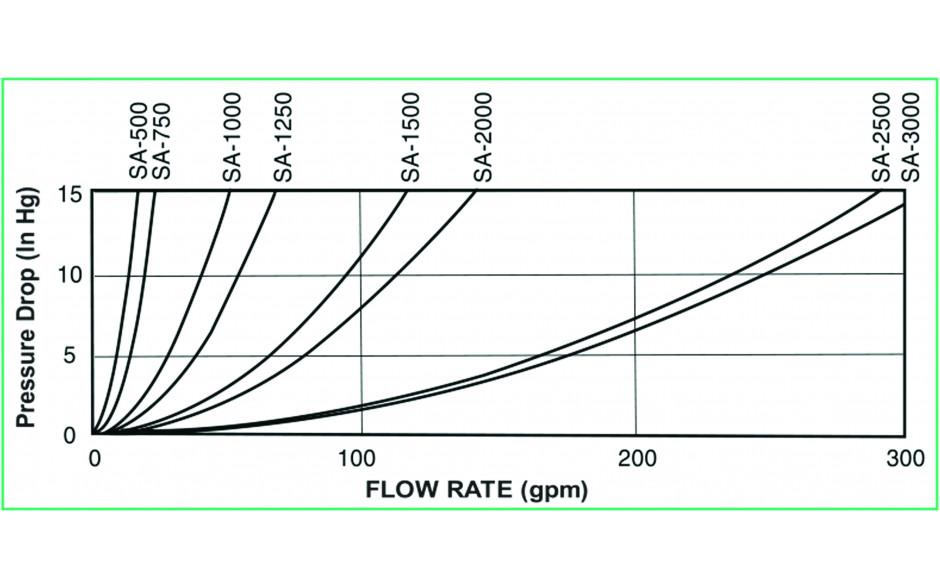

  • flow-chart

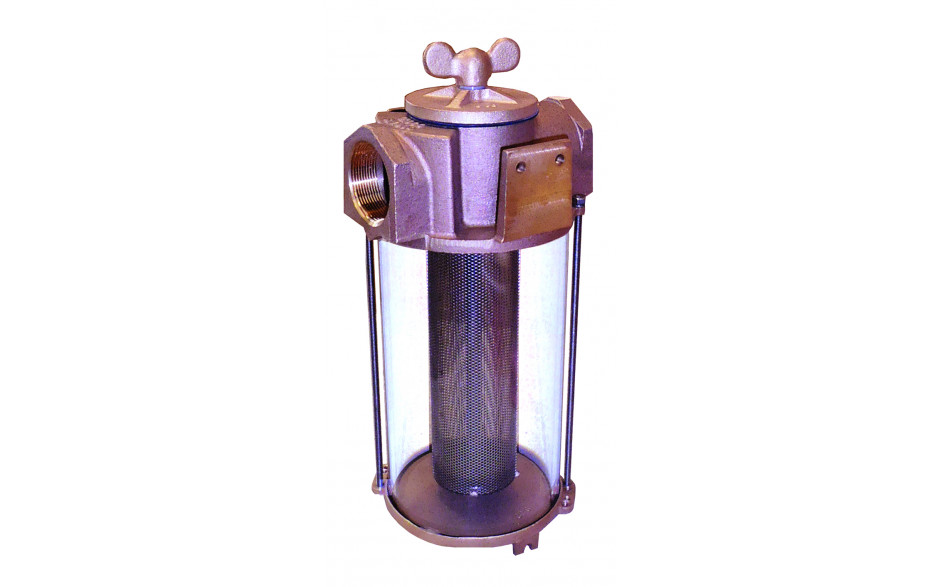

SA-1000 Series

1" Raw Water Strainer

FEATURES

  • Standard with #304 stainless steel filter basket. (Monel is optional)
  • Monel inside tie rod and #316 Stainless Steel outer tie rods.
  • Easy service with spin-off-wingnut.
  • Crystal Clear Cast Acrylic Cylinder
  • Fine mesh filter baskets are also available.
  • C84400 bronze construction.

Additional Information
Spec Sheet No
Thread NPT 1"
Open Area Ratio 29
Dimensions
Thread NPT1"
A10.5
B5.5
C5
D2.8
E -
Open Area Ratio29

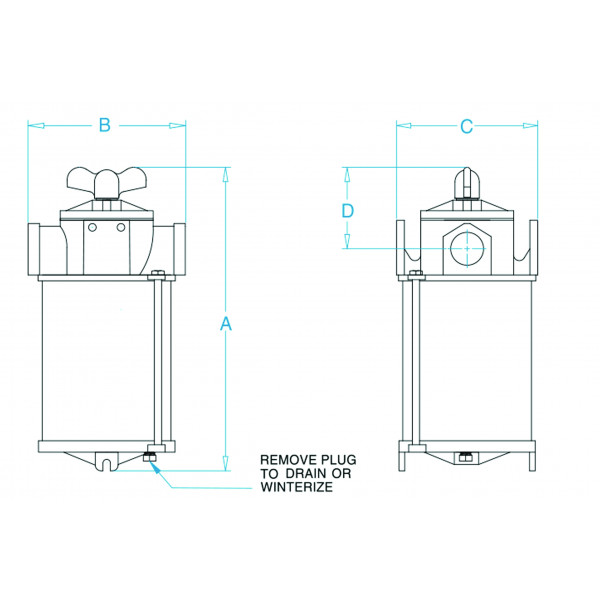

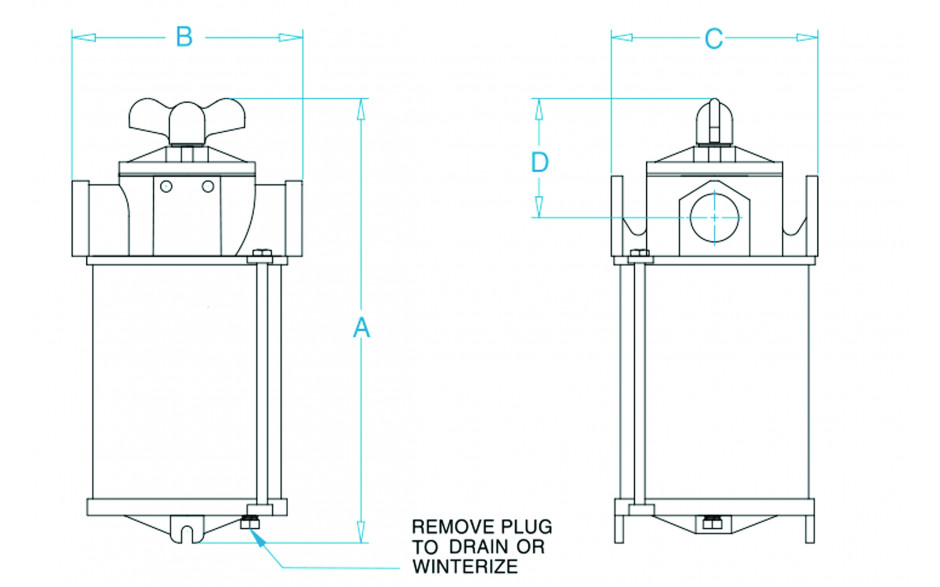

dimensions image
 Download Image  Open in New Window
Individual Parts

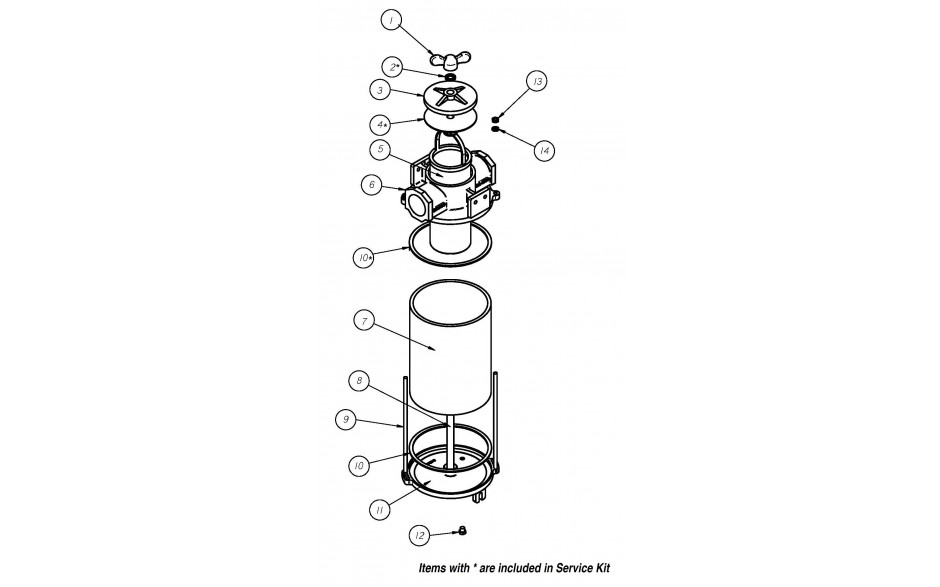

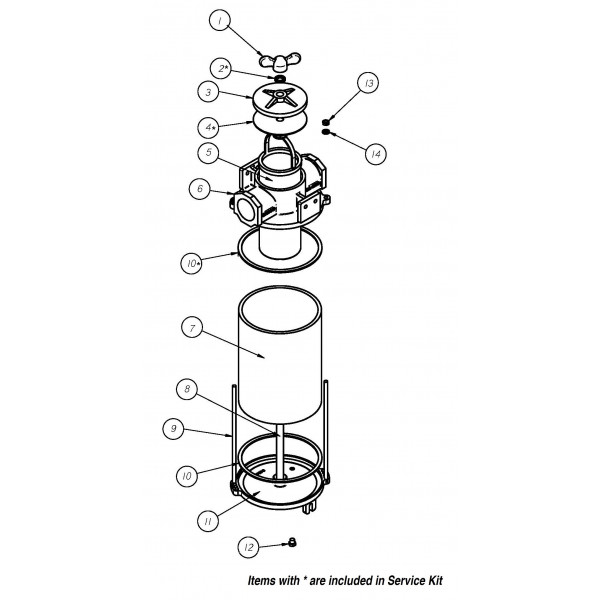

exploded image
 Download Image  Open in New Window
  • 1
    SVS-5
    $15.00
    Qty Per Unit: 1
  • 2
    500-K
    $1.00
    Qty Per Unit: 1
  • 3
    S-751
    $51.00
    Qty Per Unit: 1
  • 4
    S-751-A
    $3.00
    Qty Per Unit: 1
  • 5
    BM-4
    $86.00
    Qty Per Unit: 1
  • 5
    BP-4
    $39.00
    Qty Per Unit: 1
  • 5
    BS-4
    $39.00
    Qty Per Unit: 1
  • 6
    S-1000-A
    $210.00
    Qty Per Unit: 1
  • 7
    S-77
    $92.00
    Qty Per Unit: 1
  • 8
    S-72
    $73.00
    Qty Per Unit: 1
  • 9
    S-73-X
    $6.00
    Qty Per Unit: 2
  • 10
    #8R SET
    $13.00
    Qty Per Unit: 2
  • 11
    S-73-A
    $90.00
    Qty Per Unit: 1
  • 12
    1827HB
    $3.00
    Qty Per Unit: 1
  • 13
    1420HS
    $1.00
    Qty Per Unit: 2
  • 14
    14SS
    $1.00
    Qty Per Unit: 2
  • 15
    SA-2
    $28.00
    Qty Per Unit: 1
