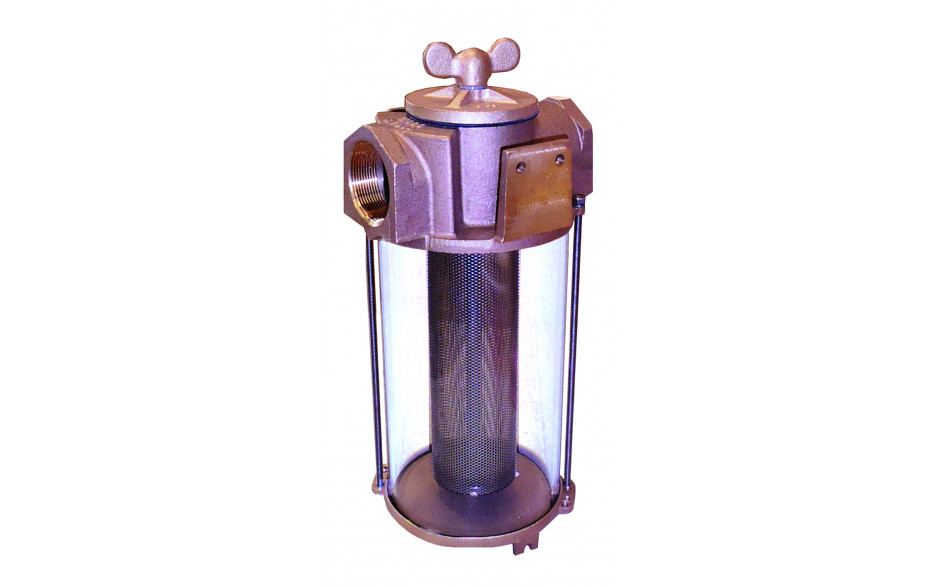

SA-2500 Series

2-1/2" Raw Water Strainer

FEATURES

  • Standard with #304 stainless steel filter basket. (Monel is optional)
  • Monel inside tie rod and #316 Stainless Steel outer tie rods.
  • Easy service with spin-off-wingnut.
  • Crystal Clear Cast Acrylic Cylinder
  • Fine mesh filter baskets are also available.
  • C84400 bronze construction.

Additional Information
Spec Sheet No
Thread NPT 2-1/2"
Open Area Ratio 11
Dimensions
Thread NPT2-1/2"
A18.8
B7.8
C6.3
D3.8
E -
Open Area Ratio11

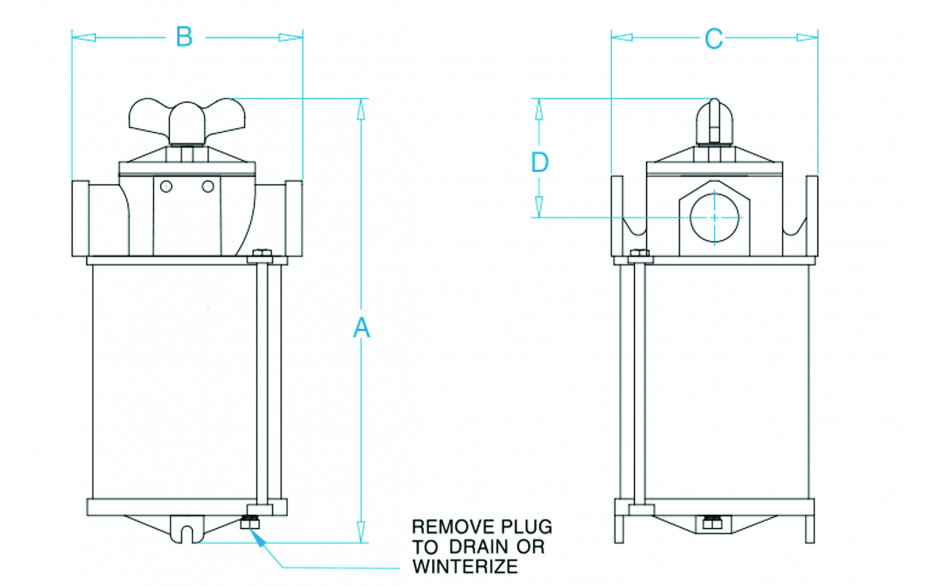

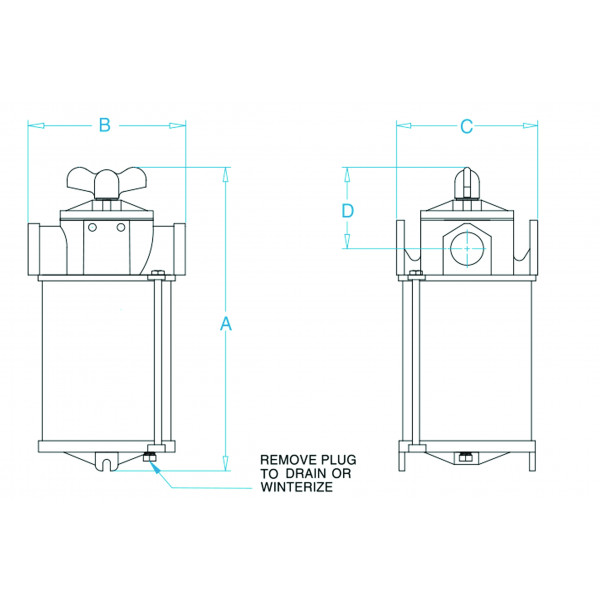

dimensions image
 Download Image  Open in New Window
Individual Parts

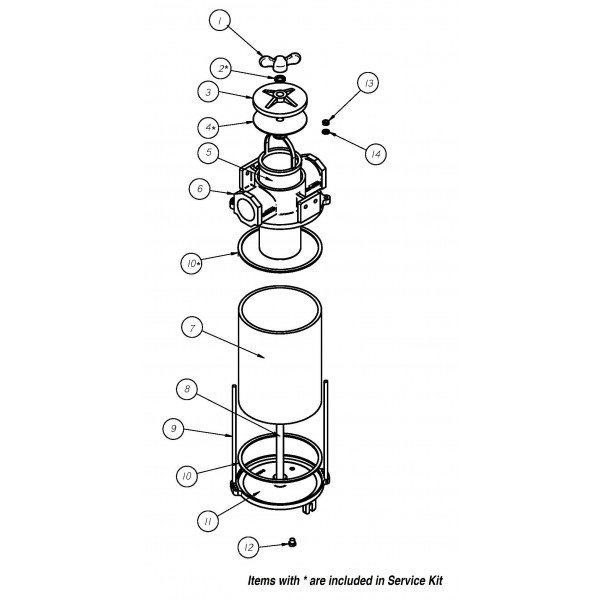

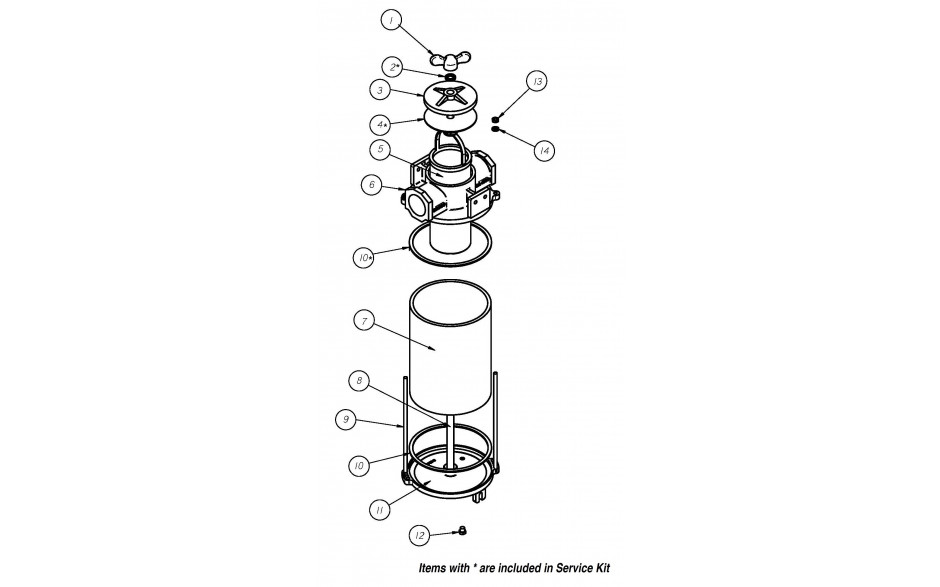

exploded image
 Download Image  Open in New Window
  • 1
    S-75
    $23.00
    Qty Per Unit: 1
  • 2
    504-F
    $1.00
    Qty Per Unit: 1
  • 3
    S-86
    $65.00
    Qty Per Unit: 1
  • 4
    S-86-A
    $2.00
    Qty Per Unit: 1
  • 5
    BP-11
    $52.00
    Qty Per Unit: 1
  • 5
    BS-11
    $52.00
    Qty Per Unit: 1
  • 5
    BM-11
    $163.00
    Qty Per Unit: 1
  • 6
    S-2500-A
    $599.00
    Qty Per Unit: 1
  • 7
    S-88-B
    $210.00
    Qty Per Unit: 1
  • 8
    S-84-C
    $203.00
    Qty Per Unit: 1
  • 9
    S-87-B
    $10.00
    Qty Per Unit: 2
  • 10
    #10R SET
    $13.00
    Qty Per Unit: 2
  • 11
    S-82-A
    $168.00
    Qty Per Unit: 1
  • 12
    1827HB
    $3.00
    Qty Per Unit: 1
  • 13
    1420HS
    $1.00
    Qty Per Unit: 2
  • 14
    14SS
    $1.00
    Qty Per Unit: 2
  • 15
    SA-3
    $26.00
    Qty Per Unit: 1
