911-1000-24

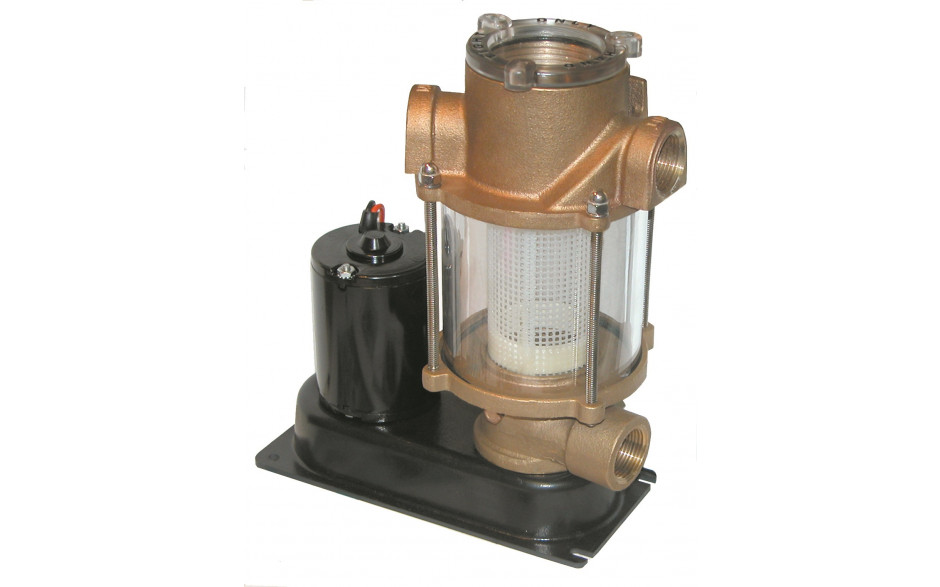

Small Engine Hydromatic Self Cleaning Strainer

FEATURES

  • A 30-second cleaning cycle is automatically performed at user-selected intervals.
  • Optional interface with SSA system initiates cleaning cycle when flow is reduced, independent of the pre-set cleaning interval.
  • The "Purge" option over-rides the selected cleaning interval and performs a one-time 30-second cleaning cycle.
  • Powerful macerator grinds debris and discharges overboard below the waterline.
  • "Ignition Protected" motors for DC models.970 models function as a sea chest to provide filtered water to multiple devices.

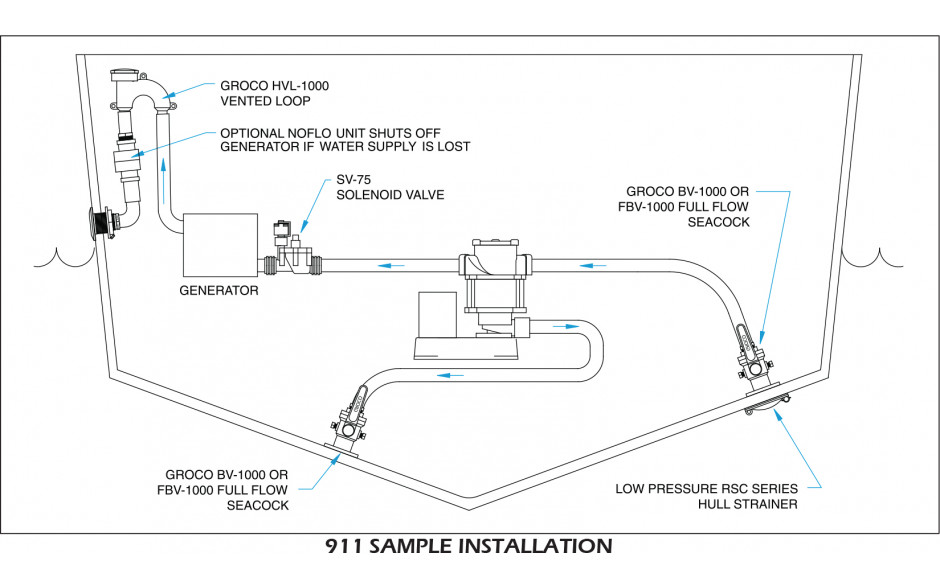

  • Installation can be horizontal or vertical (flooded inlet required)
  • C84400 bronze construction.

Additional Information
Inlet 1" NPT
Outlet 1" NPT
Debris Discharge 1" NPT
Open Area Ratio 21.1

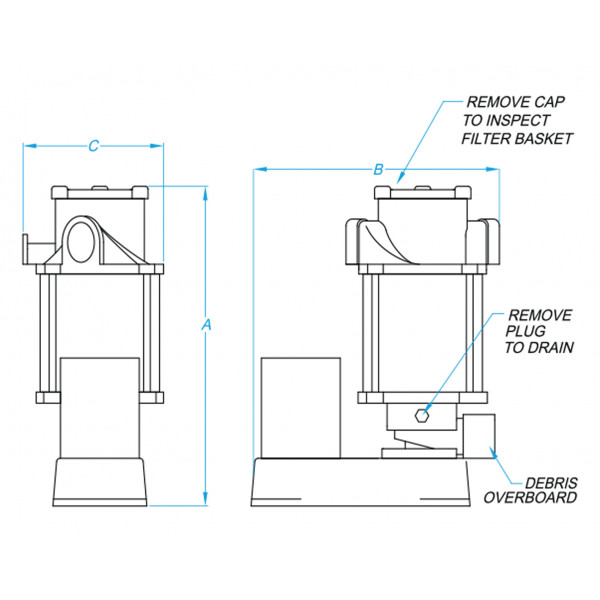

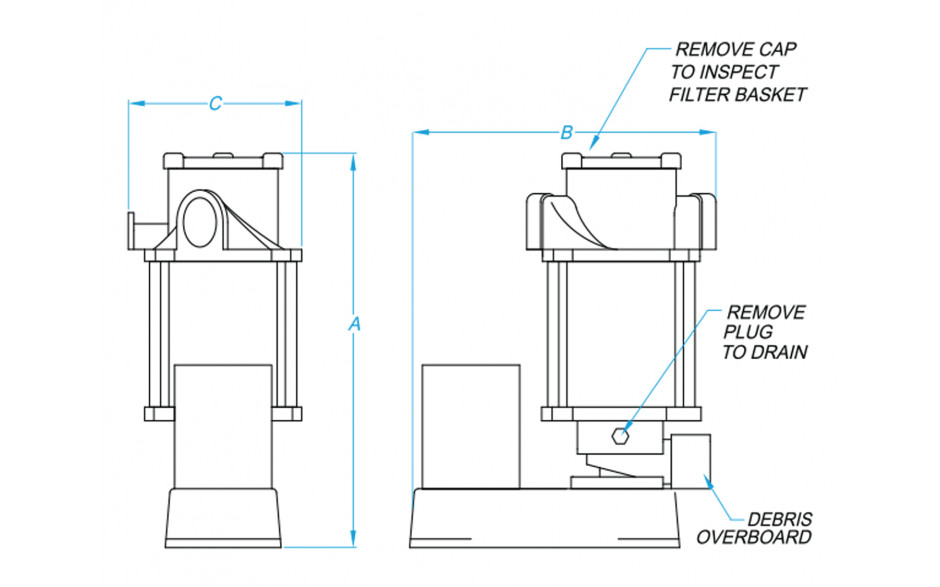

Dimensions
Inlet1" NPT
Outlet1" NPT
Debris Discharge1" NPT
A11.5
B9.2
C5.3
Open Area Ratio21.1

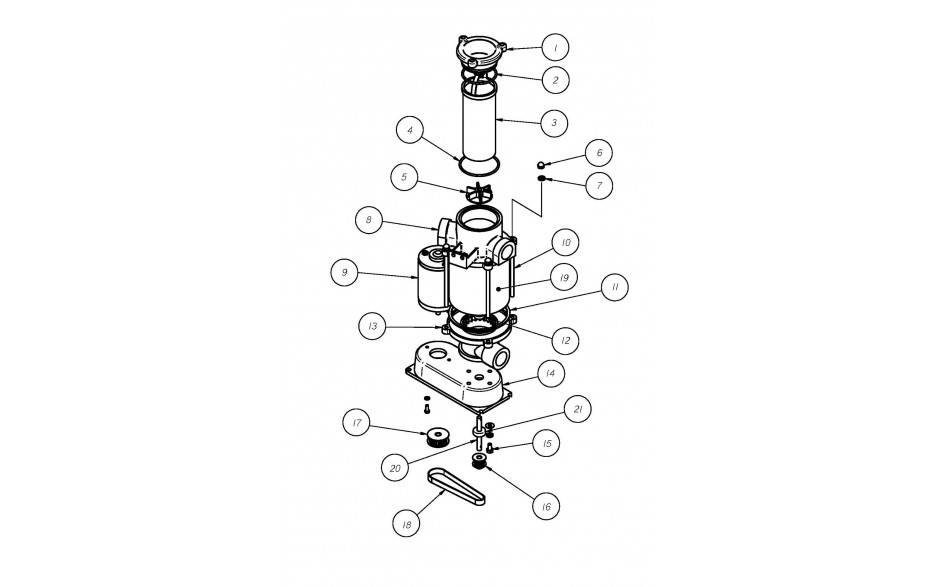

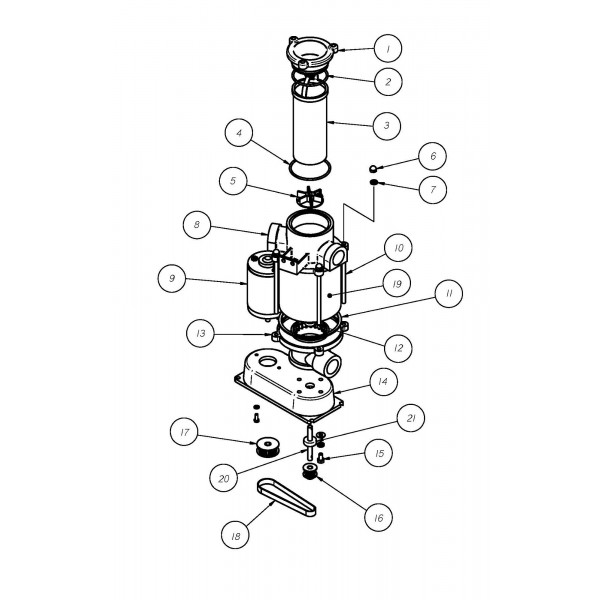

Individual Parts
  • 1
    ARG-1001-PC
    $26.00
    Qty Per Unit: 1
  • 2
    2-229
    $1.00
    Qty Per Unit: 1
  • 3
    BP-20
    $47.00
    Qty Per Unit: 1
  • 4
    2-232
    $2.00
    Qty Per Unit: 1
  • 5
    99-0033-00
    $5.00
    Qty Per Unit: 1
  • 5
    05-0911-00
    $48.00
    Qty Per Unit: 1
  • 6
    1420CS
    $2.00
    Qty Per Unit: 4
  • 7
    14SS
    $1.00
    Qty Per Unit: 8
  • 8
    053-0911-02
    $306.00
    Qty Per Unit: 1
  • 9
    24V-Q
    $435.00
    Qty Per Unit: 1
  • 10
    S-73-F
    $6.00
    Qty Per Unit: 4
  • 11
    #8R SET
    $13.00
    Qty Per Unit: 1
  • 12
    031-075-8
    $3.00
    Qty Per Unit: 1
  • 13
    053-0911-04
    $256.00
    Qty Per Unit: 1
  • 14
    005-0911-00
    $999,999.99
    Qty Per Unit: 1
  • 15
    1420X12HS
    $1.00
    Qty Per Unit: 4
  • 15
    14FS
    $1.00
    Qty Per Unit: 4
  • 16
    P-8007
    $58.00
    Qty Per Unit: 1
  • 17
    P-8006
    $54.00
    Qty Per Unit: 1
  • 18
    P-8003
    $28.00
    Qty Per Unit: 1
  • 19
    S-77-B
    $71.00
    Qty Per Unit: 1
  • 20
    S-911-A
    $22.00
    Qty Per Unit: 1
  • 21
    RG-3038-B
    $49.00
    Qty Per Unit: 1
