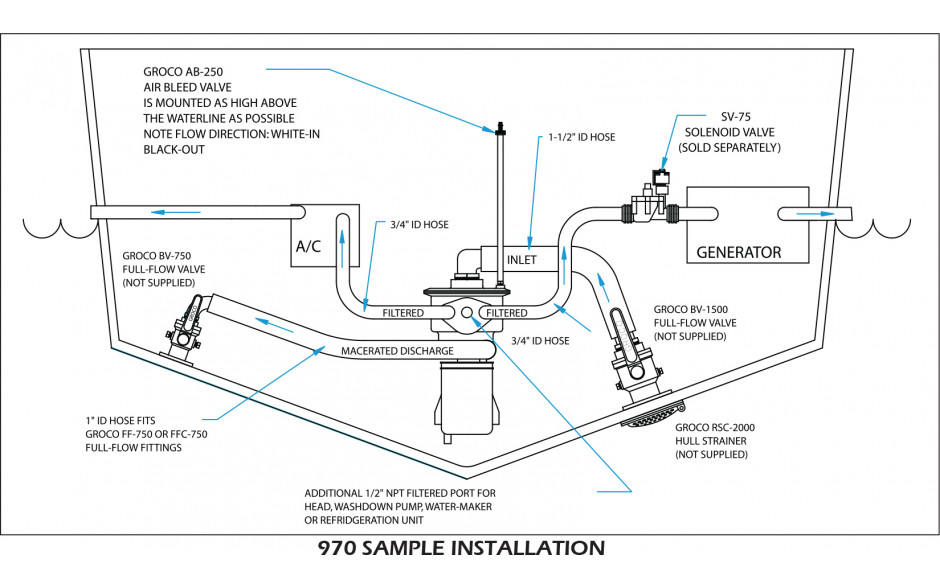

  • installation

970-1500-24

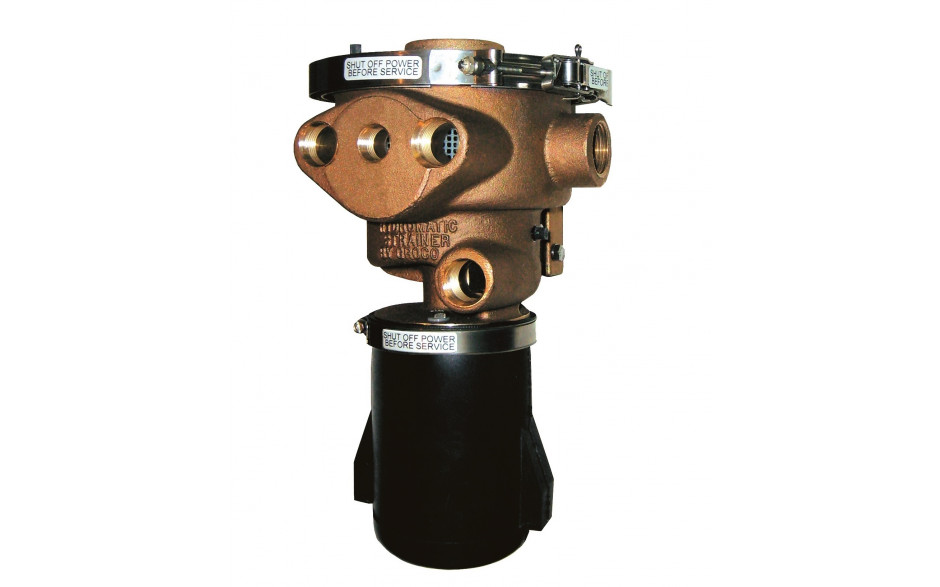

Hydromatic Self Cleaning Strainer

FEATURES

  • 30-second cleaning cycle is automatically performed at user-selected intervals.
  • Optional interface with SSA system ( initiates cleaning cycle when flow is reduced, independent of the pre-set cleaning interval.
  • The "Purge" option over-rides the selected cleaning interval and performs a one-time 30-second cleaning cycle.
  • Powerful macerator grinds debris and discharges overboard below the waterline.
  • "Ignition Protected" motors for DC models.
  • Installation can be horizontal or vertical (flooded inlet required)
  • C84400 bronze construction.

Additional Information
Inlet 1-1/2"NPT
Outlet 1-1/2"NPT
Debris Discharge 3/4" NPT
Open Area Ratio 11:01

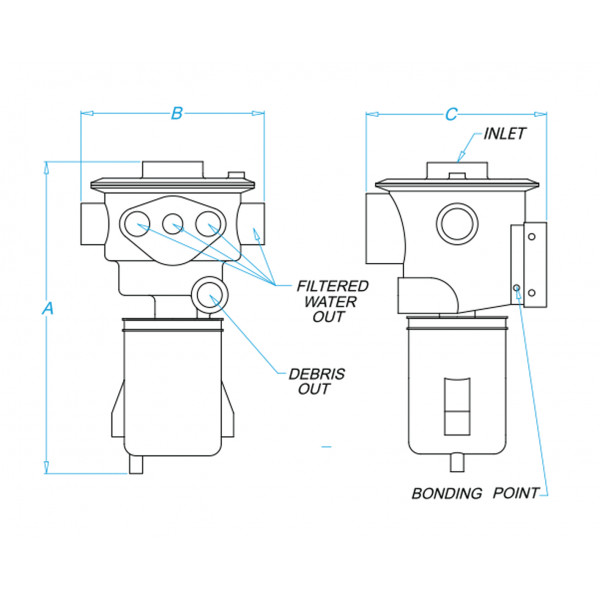

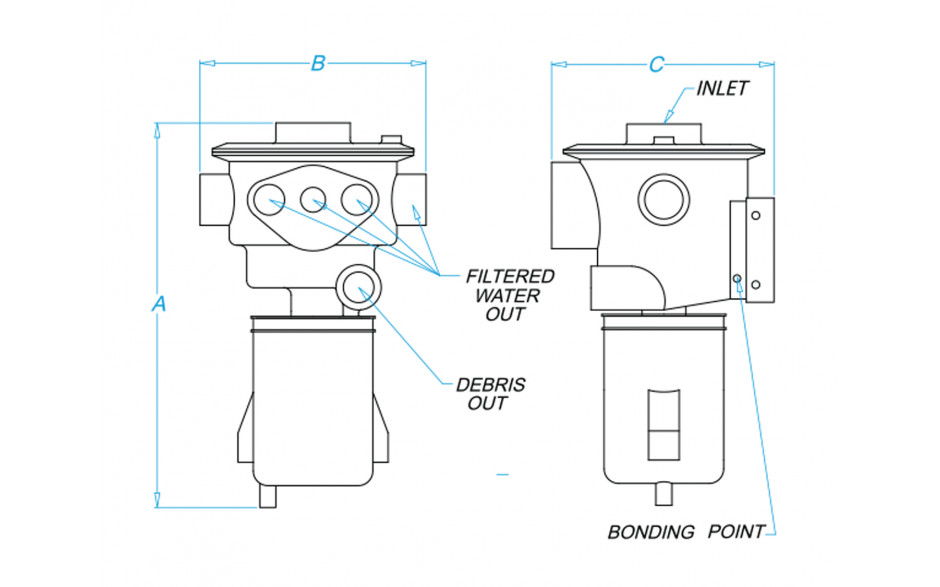

Dimensions
Inlet1-1/2"NPT
Outlet1-1/2"NPT
Debris Discharge3/4" NPT
A13.2
B6.9
C7.6
Open Area Ratio11:01
dimensions image
 Download Image  Open in New Window

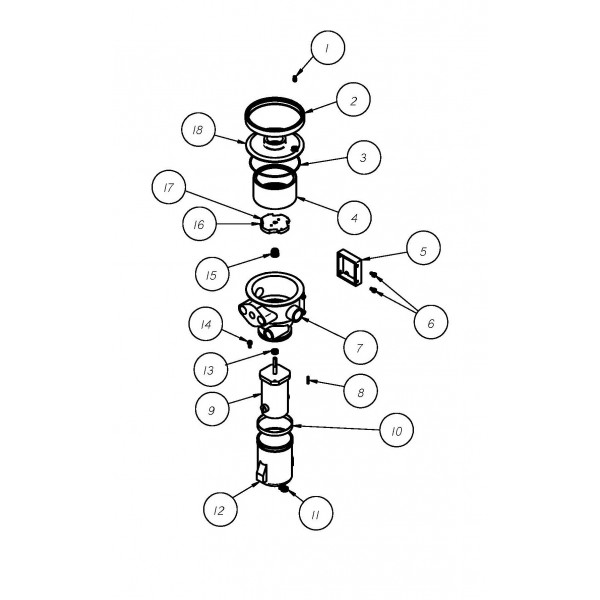

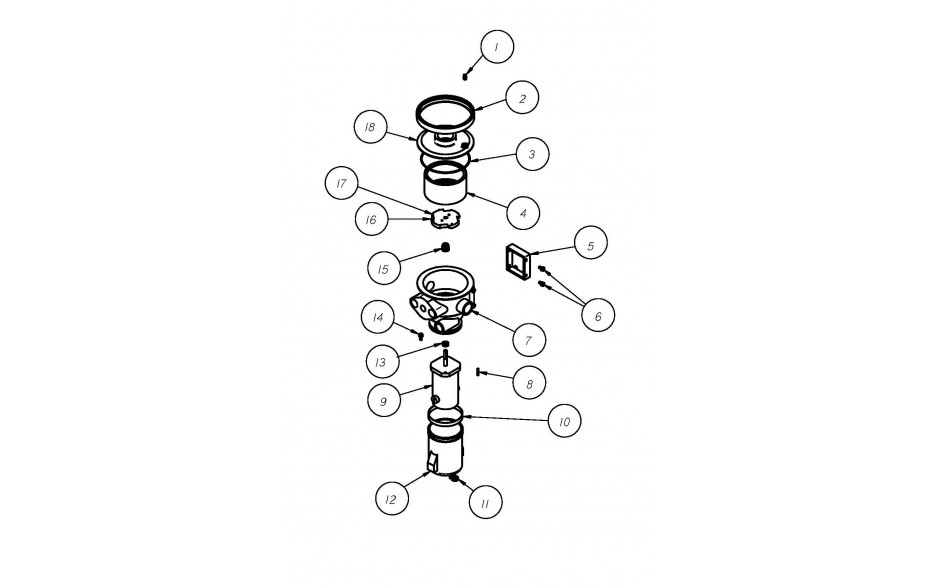

Individual Parts
exploded image
 Download Image  Open in New Window
  • 1
    1827SP
    $1.00
    Qty Per Unit: 2
  • 2
    CLAMP-5
    $155.00
    Qty Per Unit: 1
  • 3
    2-256
    $3.00
    Qty Per Unit: 1
  • 4
    PS-4929
    $43.00
    Qty Per Unit: 1
  • 5
    053-0002-00
    $77.00
    Qty Per Unit: 1
  • 6
    1420X12HS
    $1.00
    Qty Per Unit: 4
  • 7
    053-0001-00
    $993.00
    Qty Per Unit: 1
  • 8
    1/8" SQUARE KEY
    $3.00
    Qty Per Unit: 1
  • 9
    24V-N
    $1,302.00
    Qty Per Unit: 1
  • 10
    CLAMP-6
    $10.00
    Qty Per Unit: 1
  • 11
    CLAMP-14
    $2.00
    Qty Per Unit: 1
  • 12
    CP-5004
    $208.00
    Qty Per Unit: 1
  • 13
    037-075-8
    $4.00
    Qty Per Unit: 1
  • 14
    1428X58HS
    $2.00
    Qty Per Unit: 2
  • 15
    009-0375-00
    $59.00
    Qty Per Unit: 1
  • 16
    99-0033-00
    $5.00
    Qty Per Unit: 1
  • 17
    053-0005-01
    $202.00
    Qty Per Unit: 1
  • 18
    053-0003-00
    $233.00
    Qty Per Unit: 1
