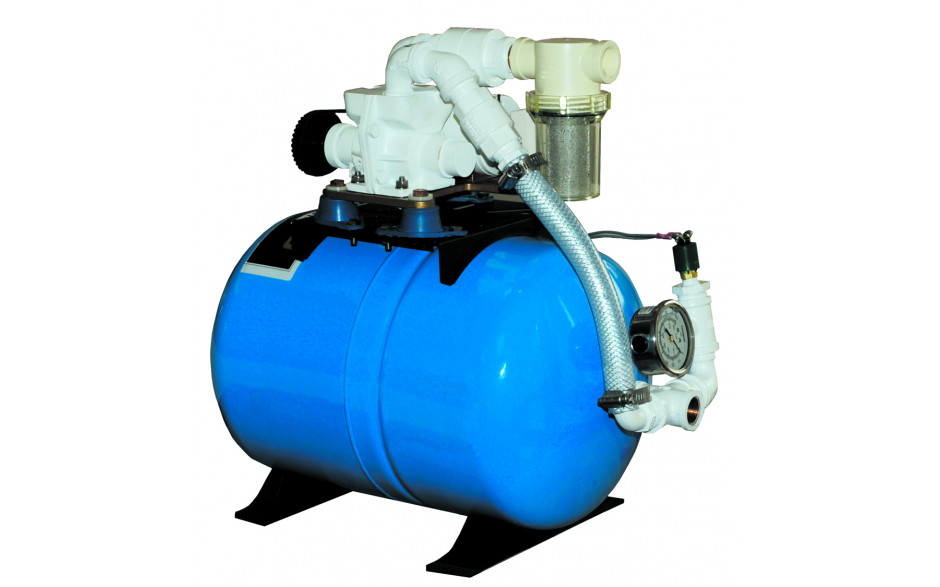

PJR-B 24V

Water Pressure System for Yachts under 50ft

Features:

  • Max 7 GPM.
  • Operating pressure range 20-40 PSI.
  • Intended for yachts 50ft and smaller.
  • Complies with NSF-61 low-lead standard.
  • Compact and powerful 2-stage rotary pump.
  • Pressure gauge and 3/4" strainer included.
  • Patented NOFLO;Dry-run protection.
  • NOTE : Pressure storage tank is required for water pressure system application.

Additional Information
Yacht Size Up to 50’
Pressure Range 20-40
Max GPM 7
Pressure Storage Tank Included 2-Gallon
Self Priming Yes
Breaker DC 20 amp

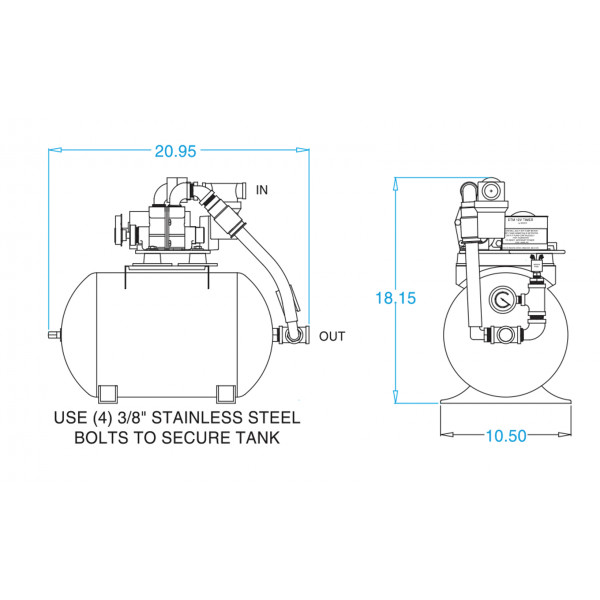

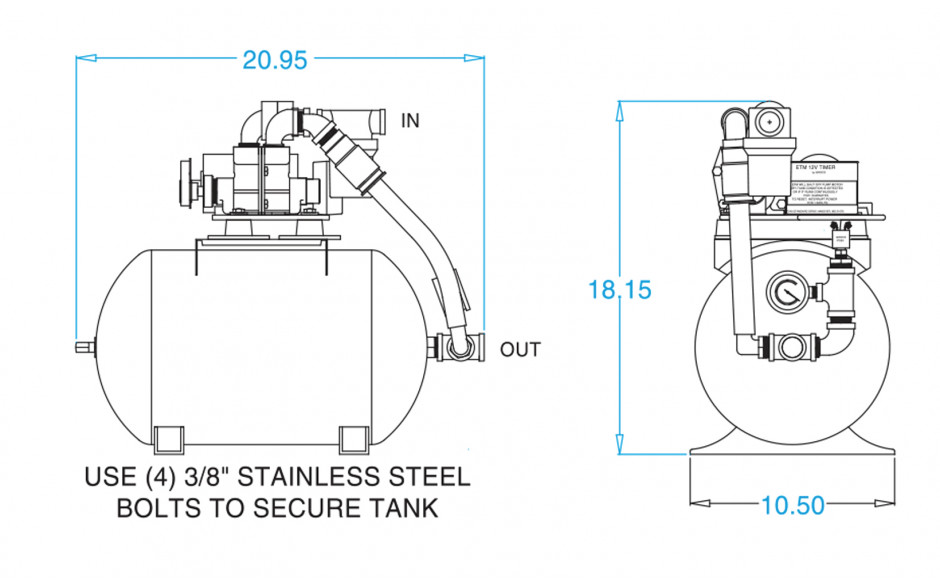

Dimensions
Yacht SizeUp to 50’
Pressure Range20-40
Max GPM7
Pressure Storage Tank Included2-Gallon
Self PrimingYes
Breaker DC20 amp
dimensions image
 Download Image  Open in New Window

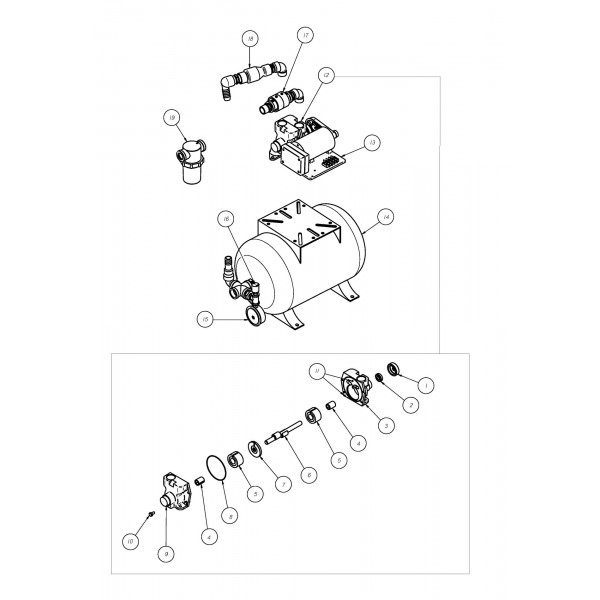

Individual Parts
exploded image
 Download Image  Open in New Window
  • 1
    P-9020-C
    $35.00
    Qty Per Unit: 1
  • 1
    P-9020-A
    $999,999.99
    Qty Per Unit: 1
  • 2
    P-9015
    $3.00
    Qty Per Unit: 2
  • 3
    P-9001-B
    $357.00
    Qty Per Unit: 1
  • 4
    P-9009-A
    $41.00
    Qty Per Unit: 2
  • 5
    P-9014 set
    $191.00
    Qty Per Unit: 1
  • 6
    P-9003/4 ASSY
    $132.00
    Qty Per Unit: 1
  • 7
    P-9006
    $43.00
    Qty Per Unit: 1
  • 8
    2-042
    $2.00
    Qty Per Unit: 1
  • 9
    P-9002
    $999,999.99
    Qty Per Unit: 1
  • 10
    1428X12HS
    $1.00
    Qty Per Unit: 4
  • 11
    PIN-14
    $1.00
    Qty Per Unit: 2
  • 12
    P-9000
    $1,145.00
    Qty Per Unit: 1
  • 13
    P-8004-A
    $159.00
    Qty Per Unit: 1
  • 15
    P-8005-B
    $51.00
    Qty Per Unit: 1
  • 16
    IPS-38
    $111.00
    Qty Per Unit: 1
  • 17
    NOFLO7500
    $122.00
    Qty Per Unit: 1
  • 18
    CV-75-P
    $59.00
    Qty Per Unit: 1
  • 20
    PJR REGULAR
    $33.00
    Qty Per Unit: 1
  • 21
    PJR MASTER
    $577.00
    Qty Per Unit: 1
