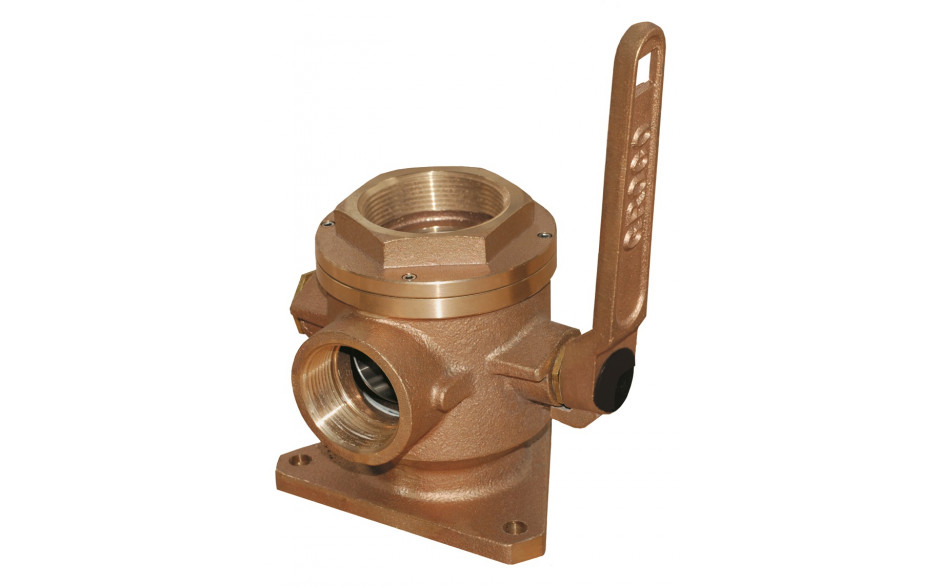

SBV-1250-P
1-1/4"Bronze Flanged Seacock with Side Port
Features:

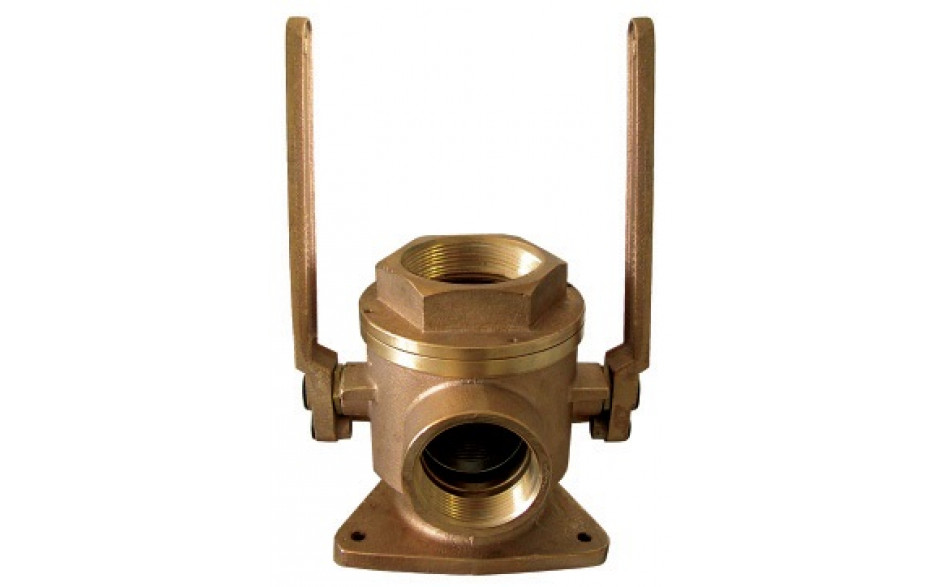

- Two driver ports permit handle relocation.
- NPT threaded side port accepts SSCV or any NPT threaded accessory.
- Handle has square hole that accepts standard ratchet; helps access hard-to-reach valves, or ease actuation of hard-to-operate valves.
- Full flow.
- Serviceable while installed.
- C84400 bronze construction.
- Stainless steel ball and stem.
- Base has bonding attachment.
- PTFE seats and seals.
***Add a GROCO Bilge Strainer to pump out remote bilge locations.
Additional Information
| Thread Bottom NPS | 1-1/4" |
|---|---|
| Thread Top NPT | 1-1/4" |
| Side Port | 1" NPT |

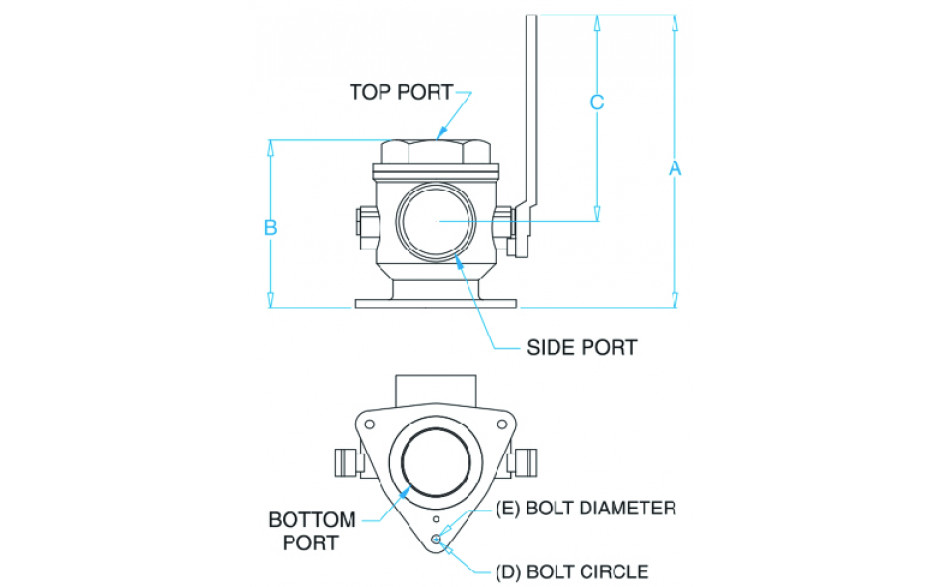

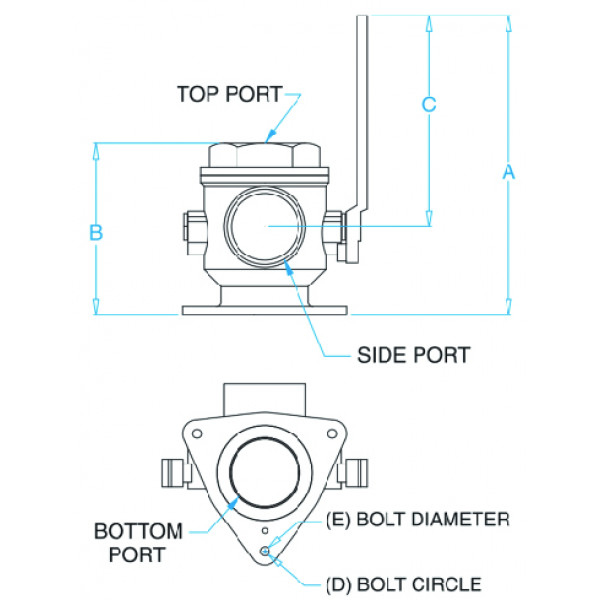

Dimensions
| Thread Bottom NPS | 1-1/4" |
| Thread Top NPT | 1-1/4" |
| Side Port | 1" NPT |
| A | 7 |
| B | 4.5 |
| C | 3.5 |
| D | 3.62 |
| E | 5/16" |

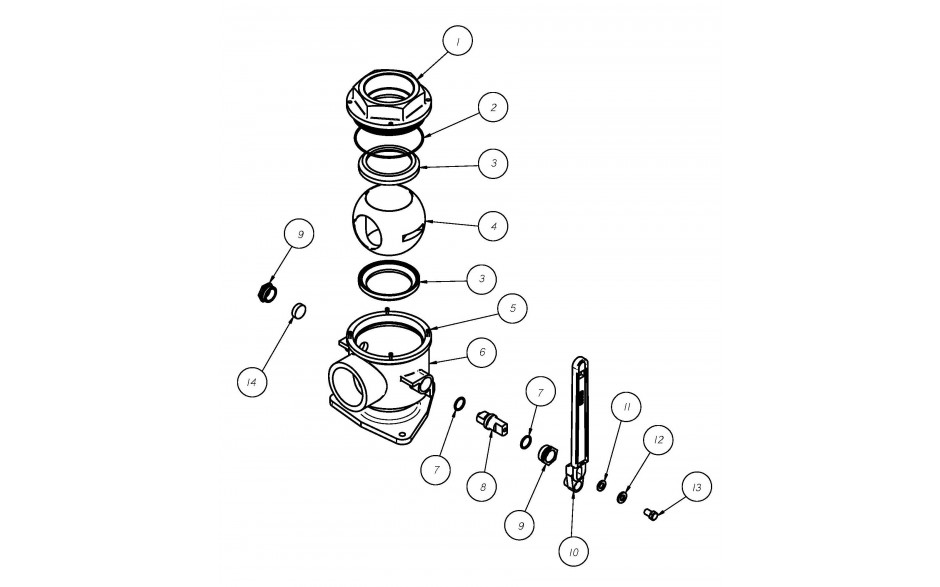

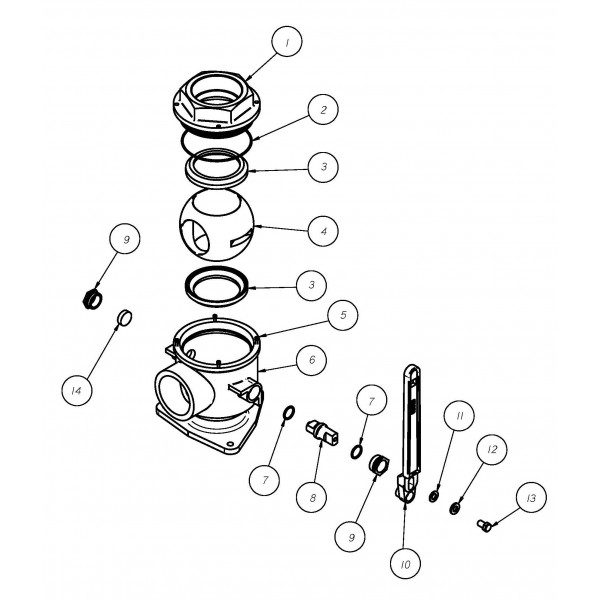

Individual Parts
-
1BV-1252$74.00Qty Per Unit: 1
-
22-135$1.00Qty Per Unit: 1
-
3BV-1256$12.00Qty Per Unit: 2
-
4SBV-1254$85.00Qty Per Unit: 1
-
5632X38SOC$1.00Qty Per Unit: 4
-
6SBVP-1250-BT$251.00Qty Per Unit: 1
-
71-017$2.00Qty Per Unit: 2
-
8BV-1001-A$45.00Qty Per Unit: 1
-
9BV-1003-A$37.00Qty Per Unit: 2
-
10SBV-1008$45.00Qty Per Unit: 1
-
1114FS$1.00Qty Per Unit: 1
-
1214SS$1.00Qty Per Unit: 1
-
131420X12HS$1.00Qty Per Unit: 1
-
14SBV-1250 PLUG$12.00Qty Per Unit: 1
