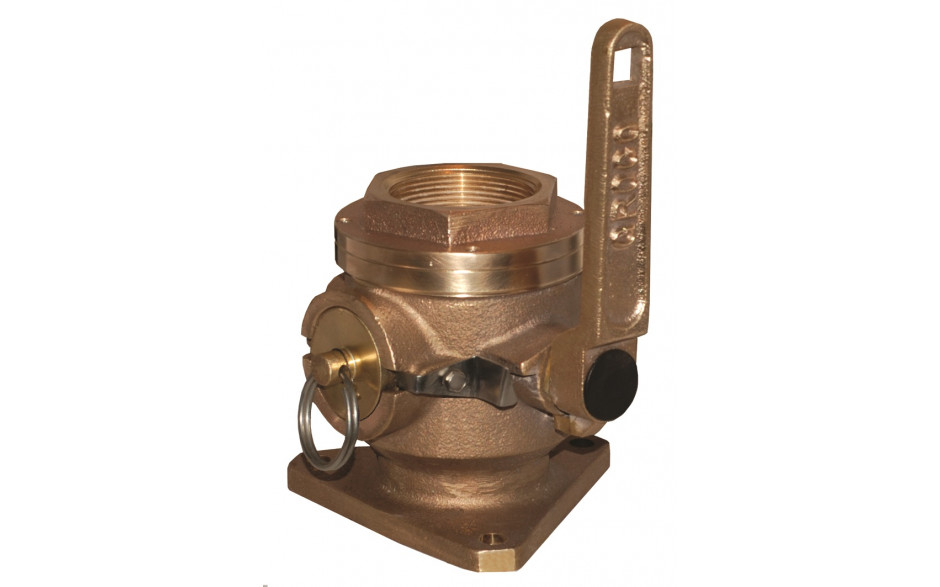

SBV-1500
1-1/2"Bronze Safety Seacock
Features:
- Handle has square hole that accepts standard ratchet; helps access hard-to-reach valves, or ease actuation of hard-to-operate valves.

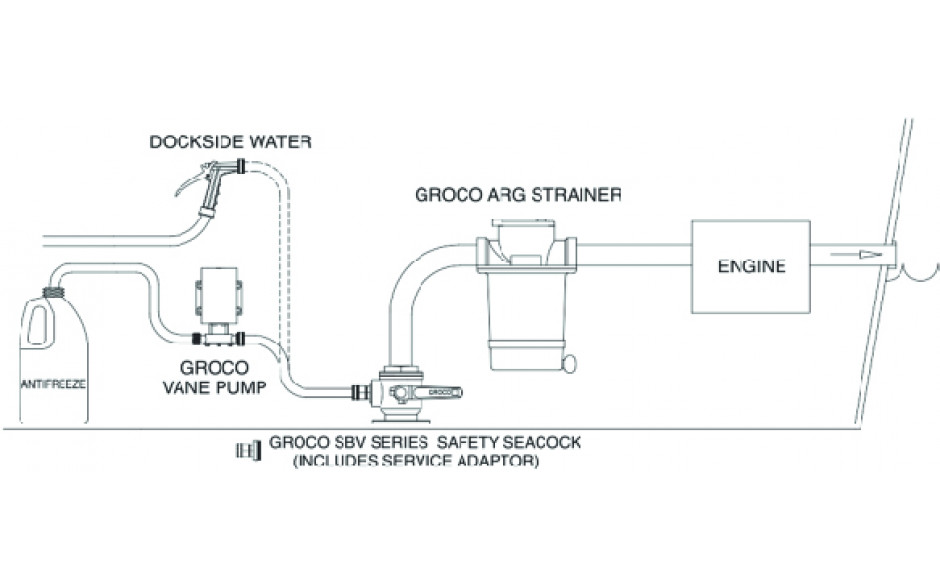

- Side port has a Quick-Release Plug for emergency bilge pumping, and a Service Adaptor for routine winterization and maintenance.
- Full flow.
- Serviceable while installed.
- C84400 bronze construction.
- Stainless steel ball and stem.
- Base has bonding attachment.
- PTFE seats and seals.
- Two driver ports permit handle relocation.

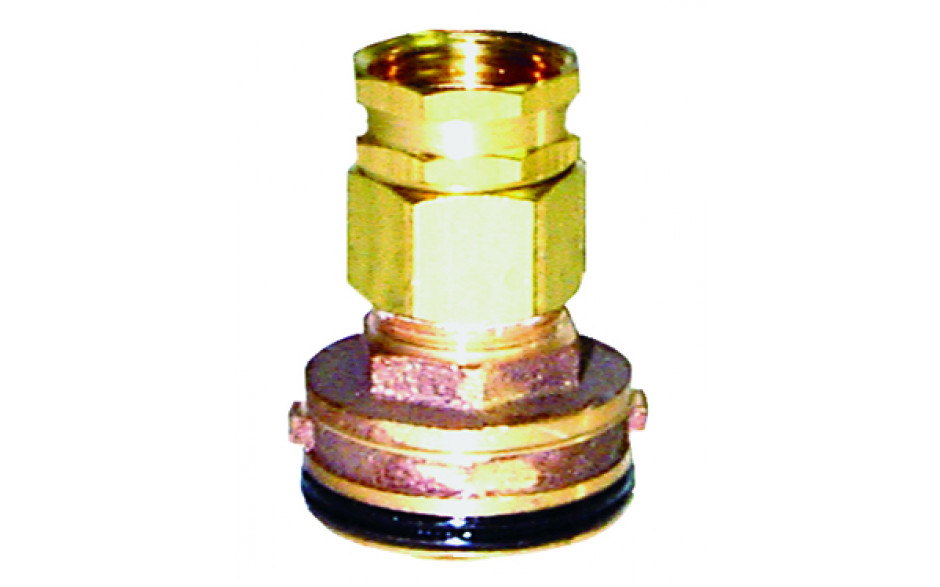

- Service adaptor included.
- UL Listed 647B

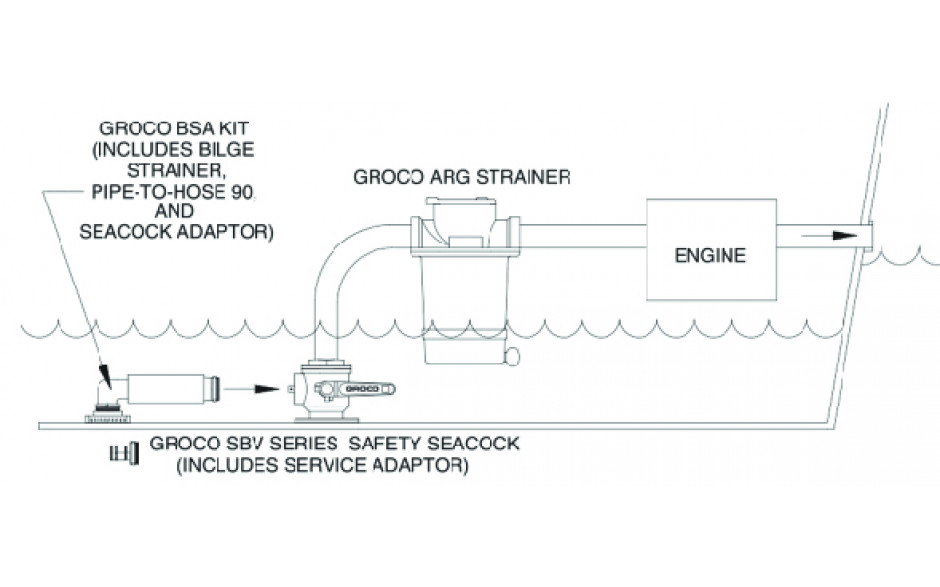

***Add a GROCO Bilge Strainer to pump out remote bilge locations.
Additional Information
| Thread Bottom NPS | 1-1/2" |
|---|---|
| Thread Top NPT | 1-1/2" |
| Side Port | SBVSA-1505 |

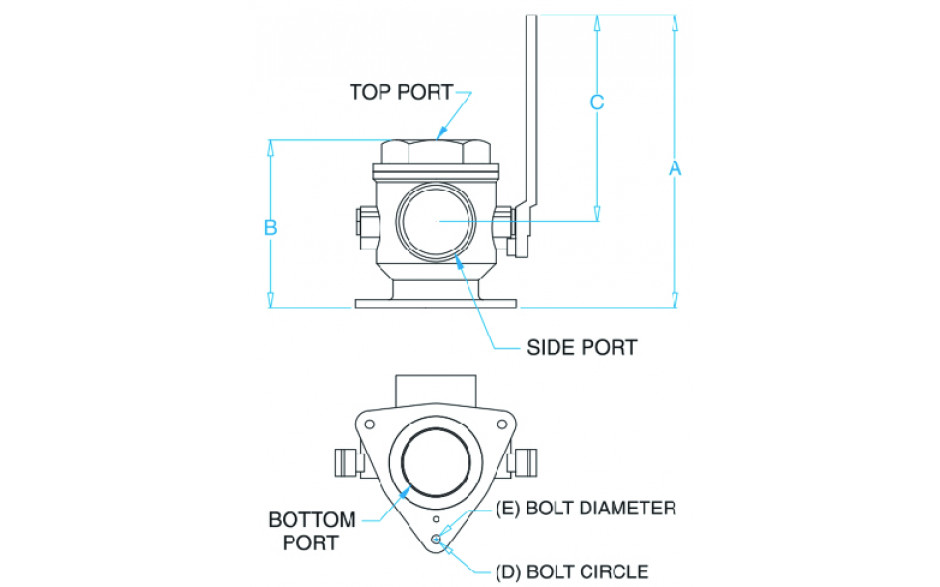

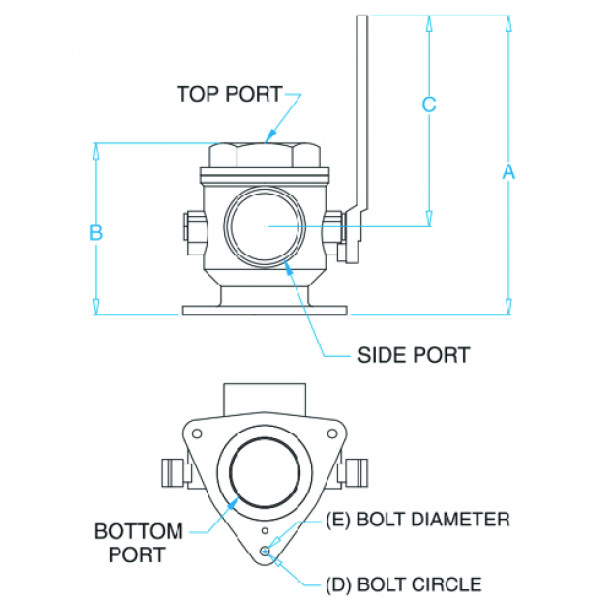

Dimensions
| Thread Bottom NPS | 1-1/2" |
| Thread Top NPT | 1-1/2" |
| Side Port | SBVSA-1505 |
| A | 8 |
| B | 4.63 |
| C | 4.13 |
| D | 4.5 |
| E | 5/16" |

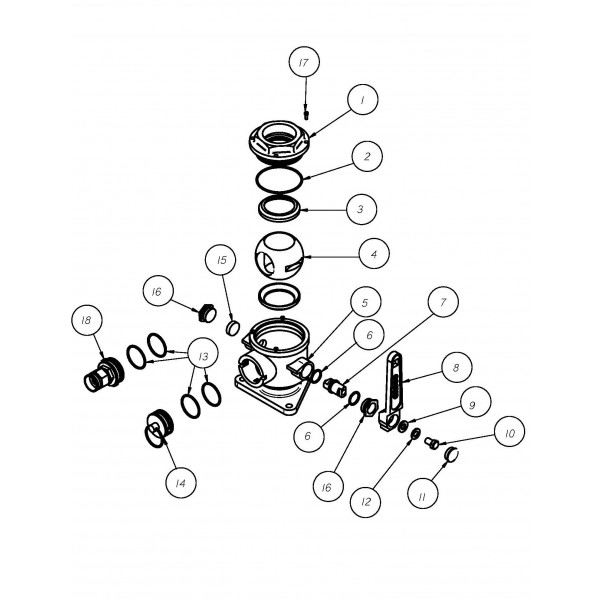

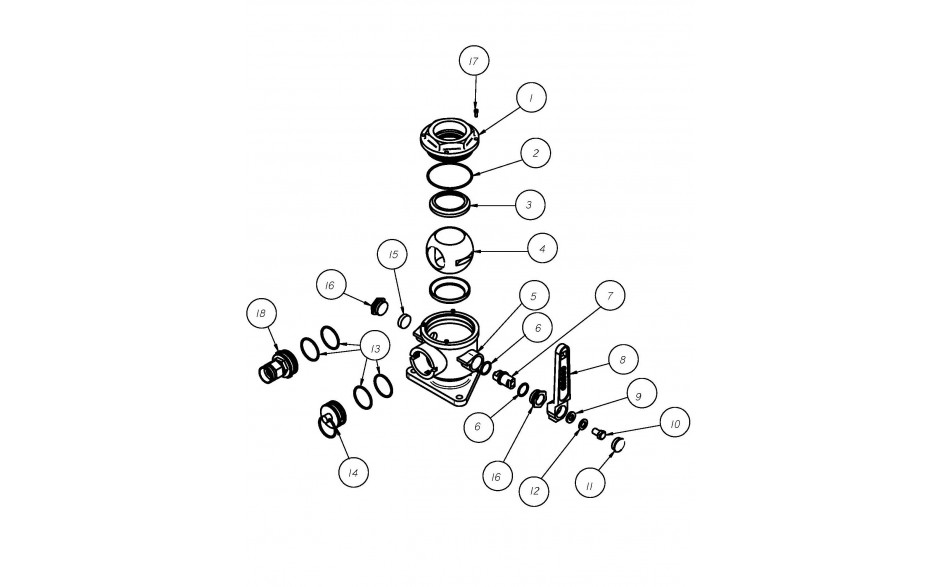

Individual Parts
-
1BV-1502$90.00Qty Per Unit: 1
-
22-140$1.00Qty Per Unit: 2
-
3BV-1506$12.00Qty Per Unit: 2
-
4SBV-1504$128.00Qty Per Unit: 1
-
5SBV-1500-BT$230.00Qty Per Unit: 1
-
61-116$3.00Qty Per Unit: 2
-
7BV-1501-A$58.00Qty Per Unit: 1
-
8BV-1508$40.00Qty Per Unit: 1
-
938FS$1.00Qty Per Unit: 1
-
103816X58HS$2.00Qty Per Unit: 1
-
11PFW-10$1.00Qty Per Unit: 1
-
1238SS$1.00Qty Per Unit: 1
-
132-120$1.00Qty Per Unit: 2
-
14SBV-1505$37.00Qty Per Unit: 1
-
15SBV-2000 PLUG$3.00Qty Per Unit: 1
-
16BV-2003-A$35.00Qty Per Unit: 2
-
17632X38SOC$1.00Qty Per Unit: 3
-
18SBVSA-1505$64.00Qty Per Unit: 1
