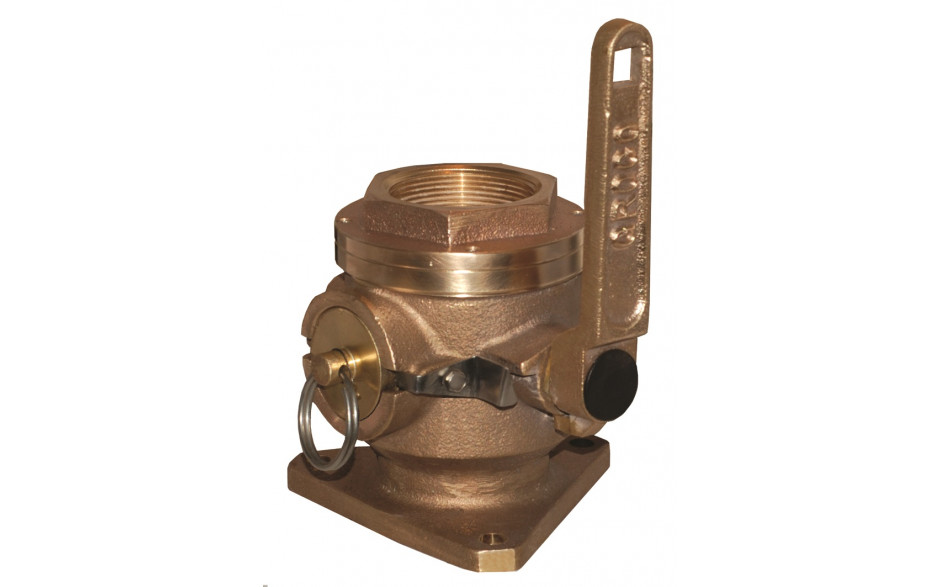

SBV-2000
2"Bronze Safety Seacock
Features:
- Handle has square hole that accepts standard ratchet; helps access hard-to-reach valves, or ease actuation of hard-to-operate valves.

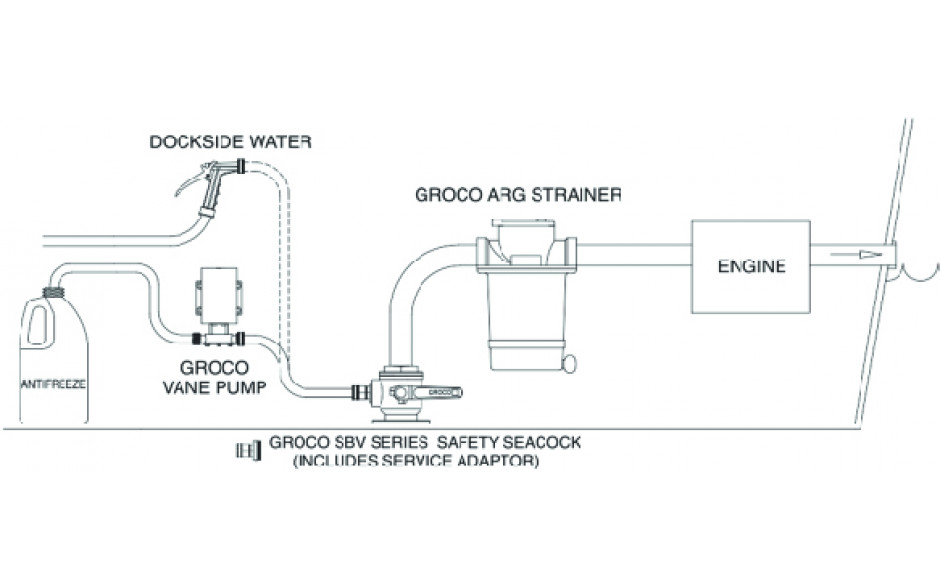

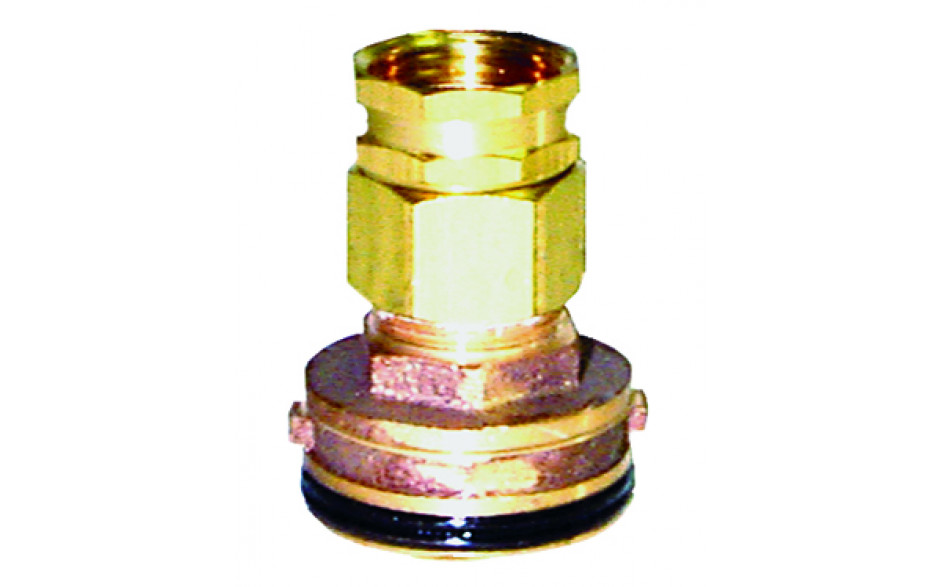

- Side port has a Quick-Release Plug for emergency bilge pumping, and a Service Adaptor for routine winterization and maintenance.
- Full flow.
- Serviceable while installed.
- C84400 bronze construction.
- Stainless steel ball and stem.
- Base has bonding attachment.
- PTFE seats and seals.
- Two driver ports permit handle relocation.
- Service adaptor included.
- UL Listed 647B

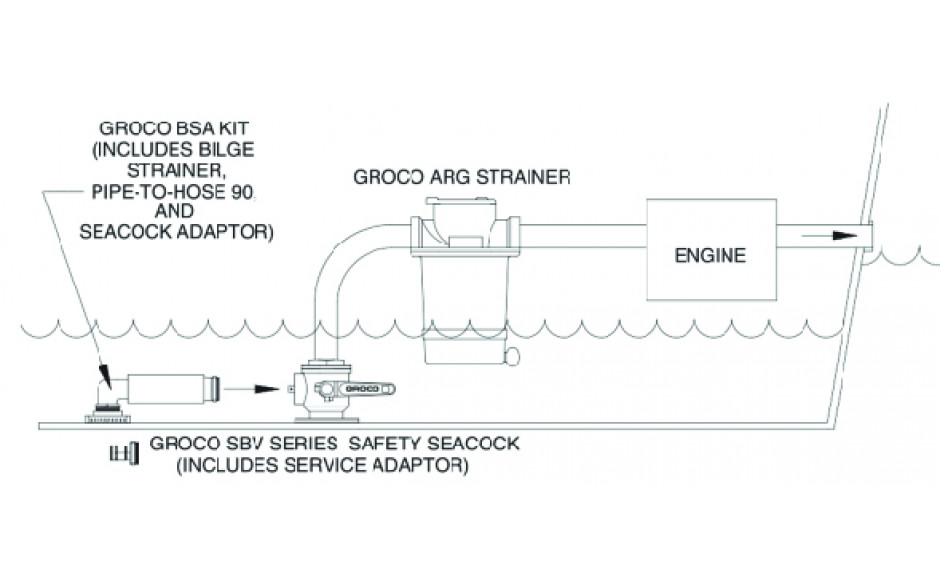

***Add a GROCO Bilge Strainer to pump out remote bilge locations.
Additional Information
| Thread Bottom NPS | 2" |
|---|---|
| Thread Top NPT | 2" |
| Side Port | SBVSA-2005 |

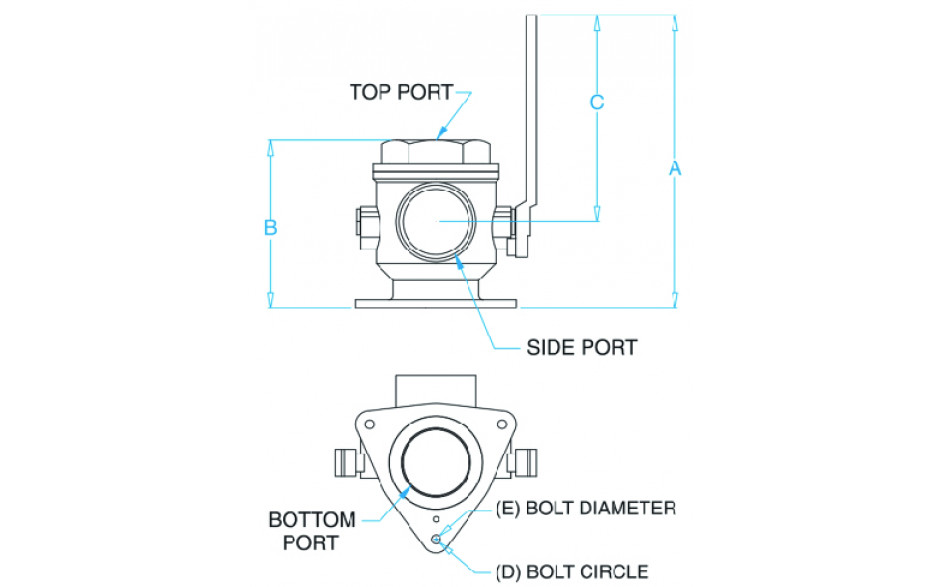

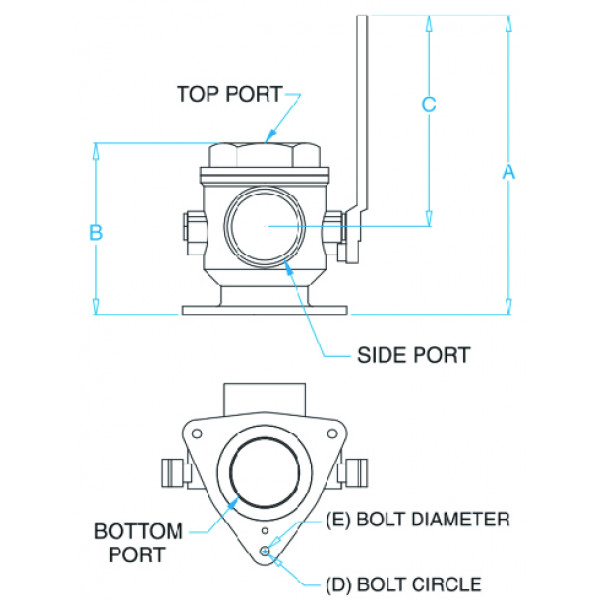

Dimensions
| Thread Bottom NPS | 2" |
| Thread Top NPT | 2" |
| Side Port | SBVSA-2005 |
| A | 8.38 |
| B | 5.25 |
| C | 5.13 |
| D | 5 |
| E | 3/8" |

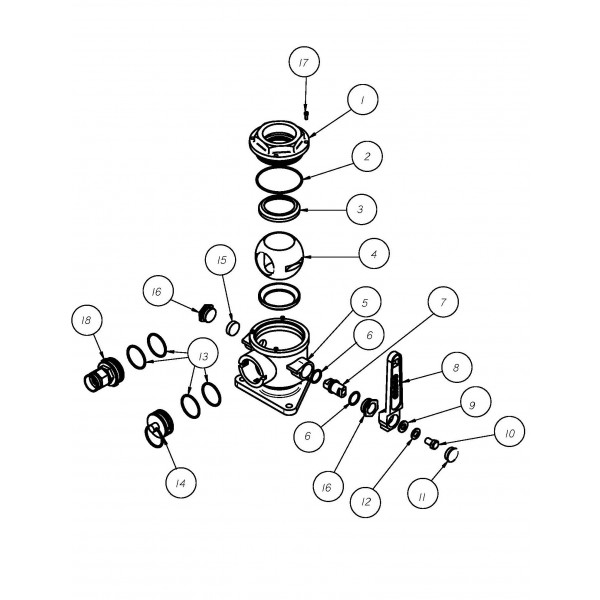

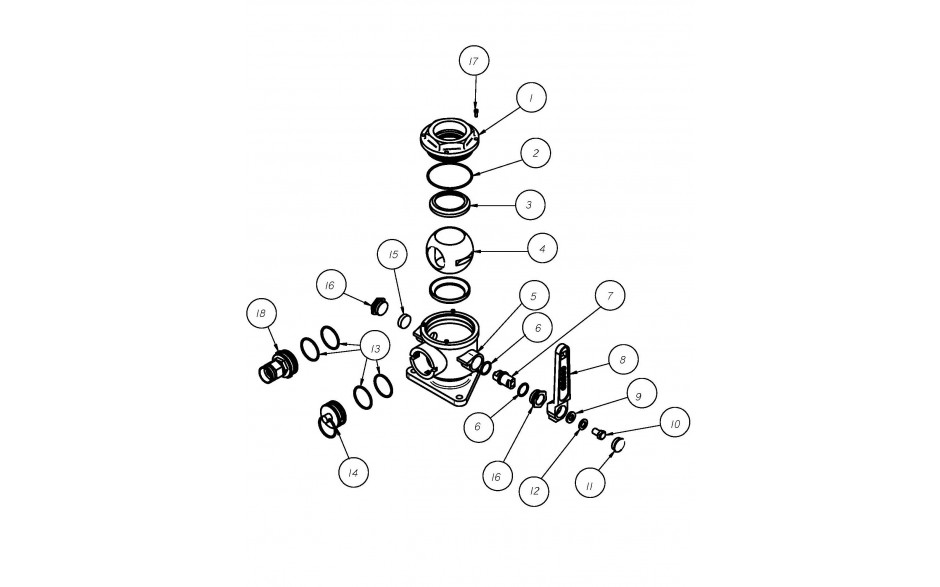

Individual Parts
-
1BV-2002$133.00Qty Per Unit: 1
-
22-150$1.00Qty Per Unit: 2
-
3BV-2006-1$18.00Qty Per Unit: 2
-
4SBV-2004$176.00Qty Per Unit: 1
-
5SBV-2000-BT$334.00Qty Per Unit: 1
-
61-116$3.00Qty Per Unit: 2
-
7BV-1501-A$58.00Qty Per Unit: 1
-
8BV-1508$40.00Qty Per Unit: 1
-
938FS$1.00Qty Per Unit: 1
-
103816X58HS$2.00Qty Per Unit: 1
-
11PFW-10$1.00Qty Per Unit: 1
-
1238SS$1.00Qty Per Unit: 1
-
132-128$1.00Qty Per Unit: 2
-
14SBV-2005$49.00Qty Per Unit: 1
-
15SBV-2000 PLUG$3.00Qty Per Unit: 1
-
16BV-2003-A$35.00Qty Per Unit: 2
-
17632X38SOC$1.00Qty Per Unit: 3
-
18SBVSA-2005$66.00Qty Per Unit: 1
