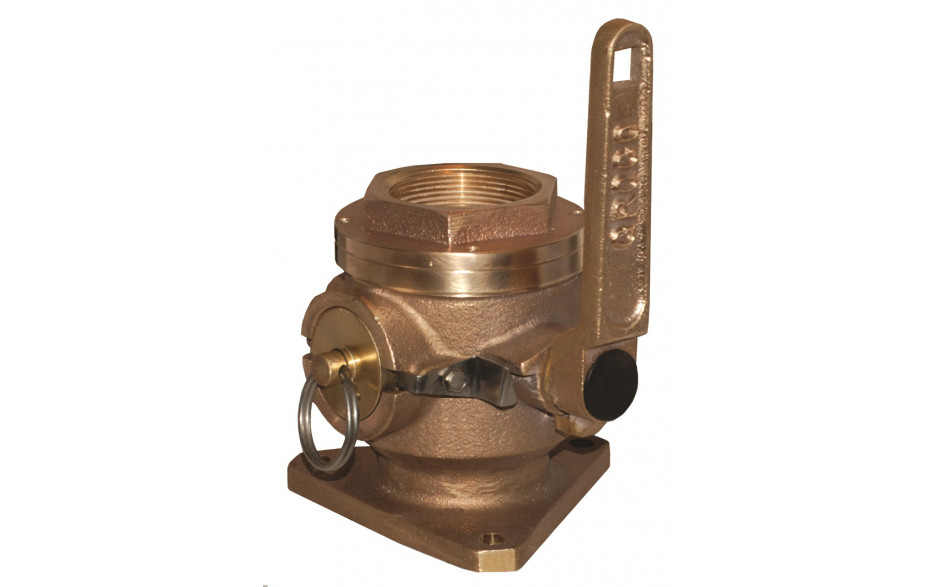

SBV-2500
2-1/2"Bronze Safety Seacock
Features:
- Handle has square hole that accepts standard ratchet; helps access hard-to-reach valves, or ease actuation of hard-to-operate valves.

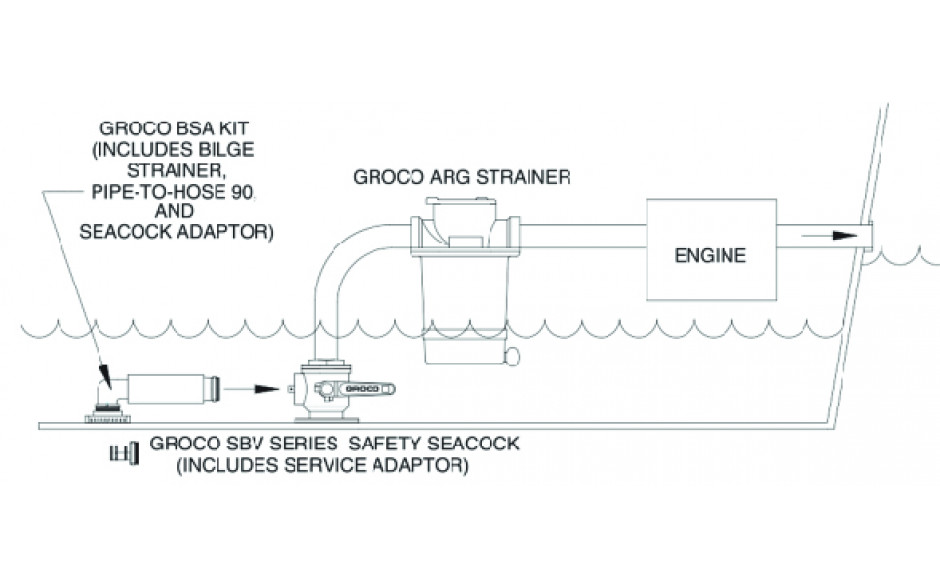

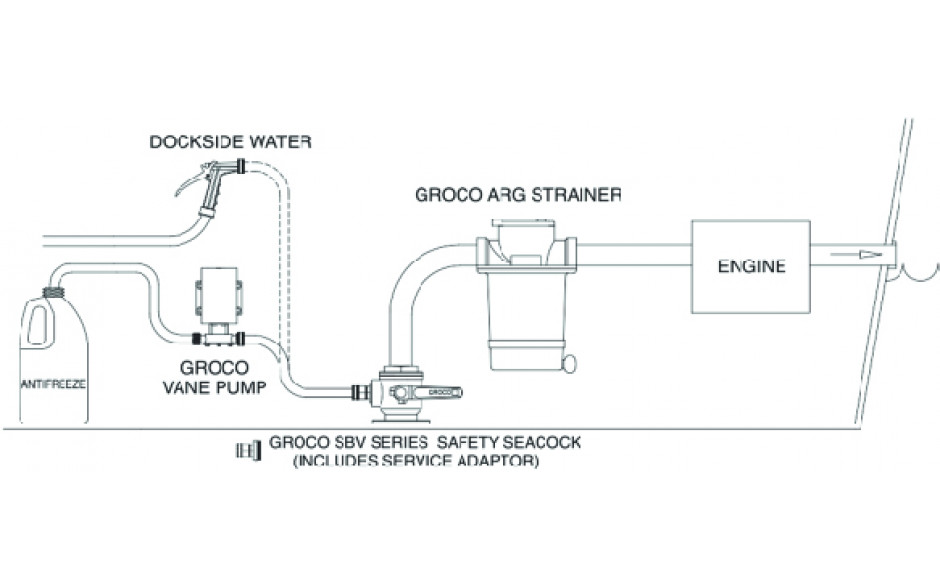

- Side port has a Quick-Release Plug for emergency bilge pumping, and a Service Adaptor for routine winterization and maintenance.
- Full flow.
- Serviceable while installed.
- C84400 bronze construction.
- Stainless steel ball and stem.
- Base has bonding attachment.
- PTFE seats and seals.
- Two driver ports permit handle relocation.

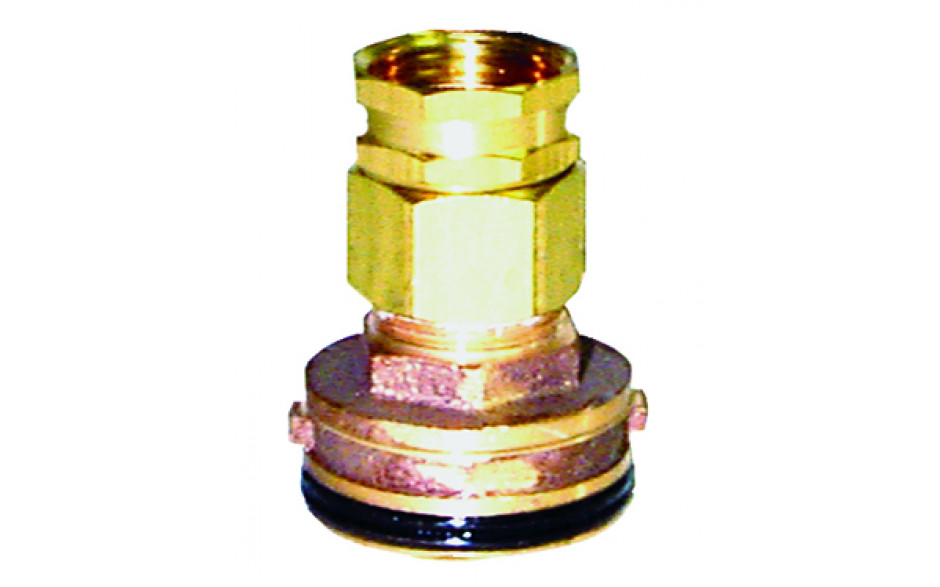

- Service adaptor included.
- UL Listed 647B
***Add a GROCO Bilge Strainer to pump out remote bilge locations.
Additional Information
| Thread Bottom NPS | 2-1/2" |
|---|---|
| Thread Top NPT | 2-1/2" |
| Side Port | SBVSA-2505 |

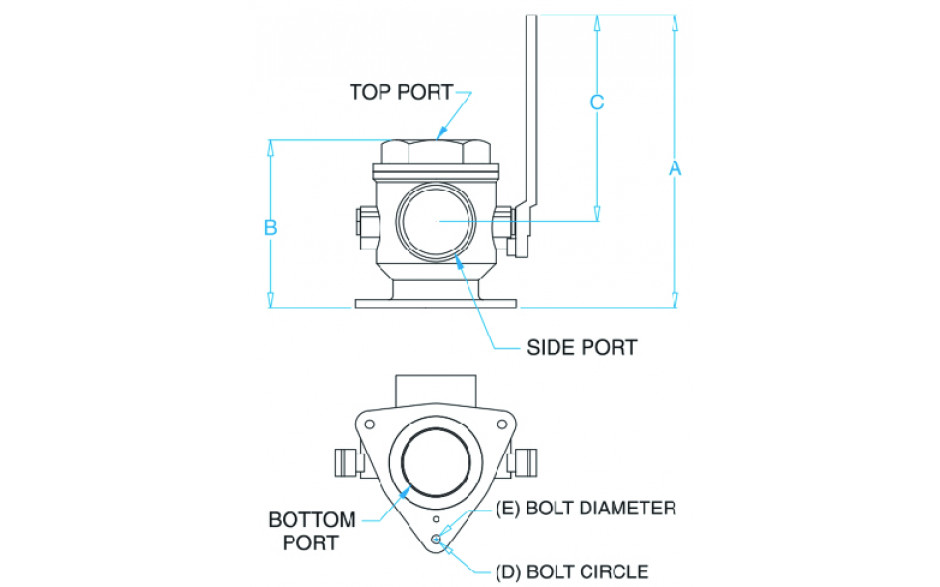

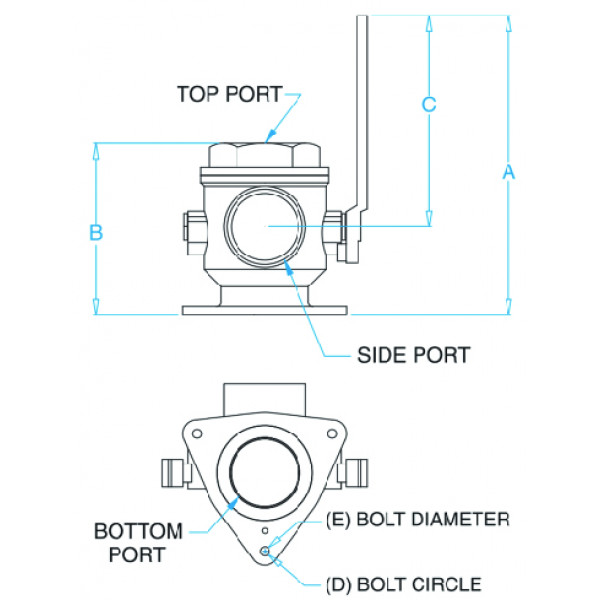

Dimensions
| Thread Bottom NPS | 2-1/2" |
| Thread Top NPT | 2-1/2" |
| Side Port | SBVSA-2505 |
| A | 10.31 |
| B | 6.75 |
| C | 5.88 |
| D | 5.88 |
| E | 3/8" |

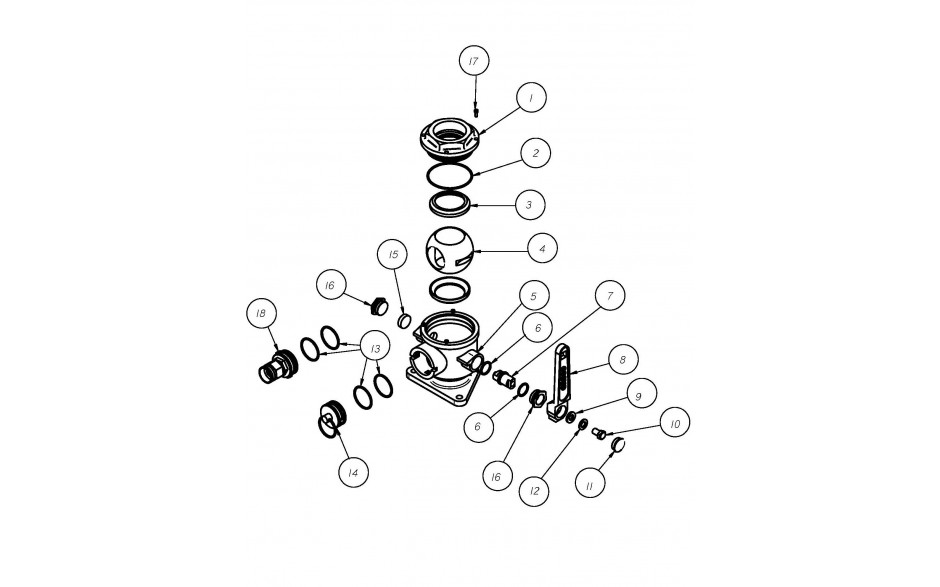

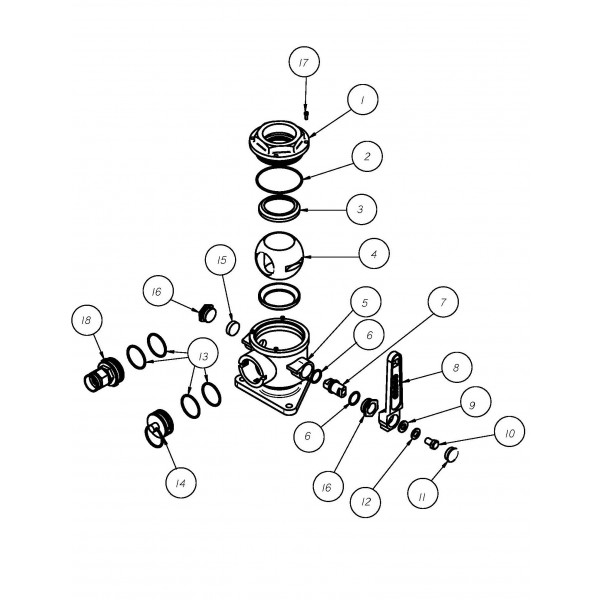

Individual Parts
-
1BV-2502$204.00Qty Per Unit: 1
-
22-154$2.00Qty Per Unit: 2
-
3BV-2506-1$41.00Qty Per Unit: 2
-
4SBV-2504$361.00Qty Per Unit: 1
-
5SBV-2500-BT$558.00Qty Per Unit: 1
-
61-118$4.00Qty Per Unit: 2
-
7BV-2501-B$75.00Qty Per Unit: 1
-
8BV-2508-A$64.00Qty Per Unit: 1
-
938FS$1.00Qty Per Unit: 1
-
103816X58HS$2.00Qty Per Unit: 1
-
11PFW-10$1.00Qty Per Unit: 1
-
1238SS$1.00Qty Per Unit: 1
-
132-136$1.00Qty Per Unit: 2
-
14SBV-2505$59.00Qty Per Unit: 1
-
15SBV-3000 PLUG$4.00Qty Per Unit: 1
-
16BV-2503-A$13.00Qty Per Unit: 2
-
17632X38SOC$1.00Qty Per Unit: 3
-
18SBVSA-2505$78.00Qty Per Unit: 1
