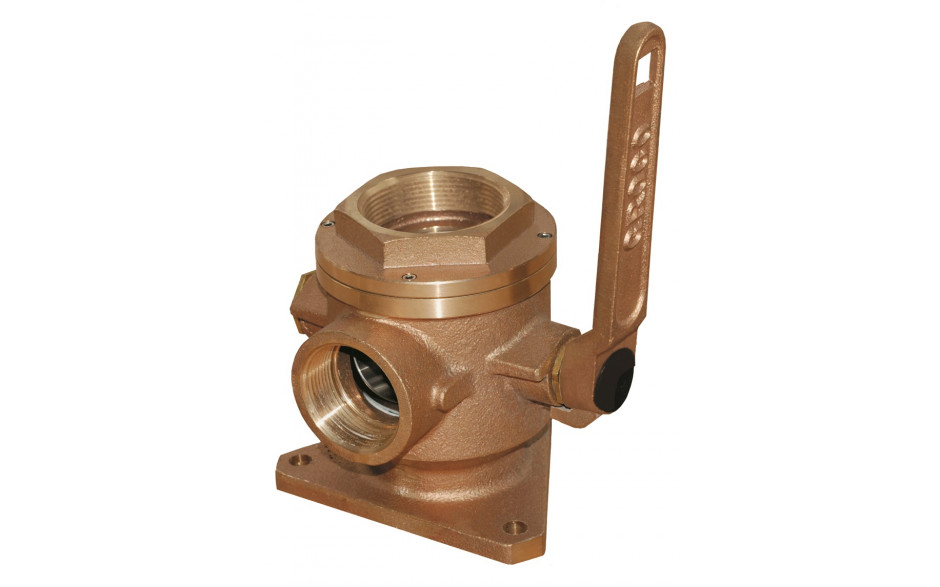

SBV-2500-P

2-1/2"Bronze Flanged Seacock with Side Port

Features:

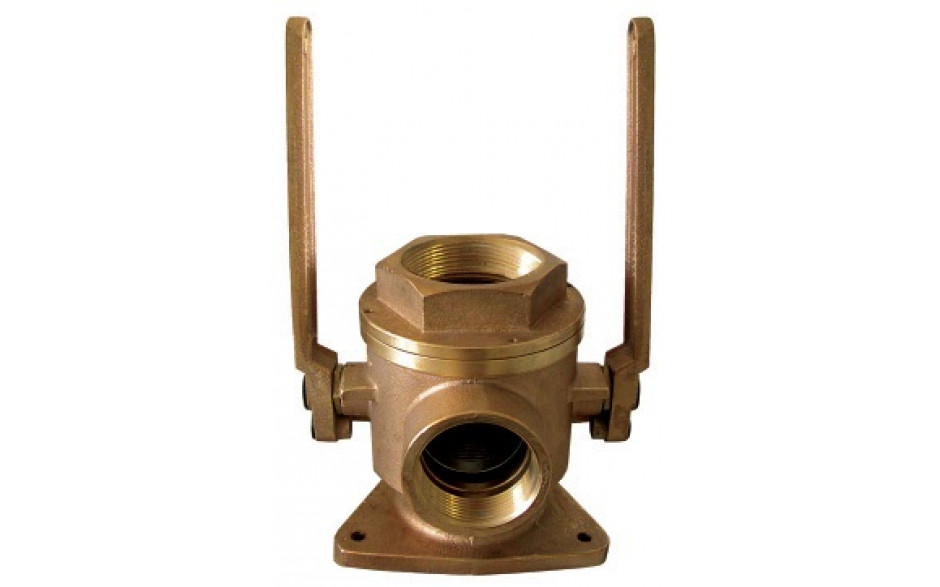

  • Two driver ports permit handle relocation.
  • NPT threaded side port accepts SSCV or any NPT threaded accessory.
  • Handle has square hole that accepts standard ratchet; helps access hard-to-reach valves, or ease actuation of hard-to-operate valves.
  • Full flow.
  • Serviceable while installed.
  • C84400 bronze construction.
  • Stainless steel ball and stem.
  • Base has bonding attachment.
  • PTFE seats and seals.

  ***Add a GROCO Bilge Strainer to pump out remote bilge locations.

Additional Information
Thread Bottom NPS 2-1/2"
Thread Top NPT 2-1/2"
Side Port 2" NPT

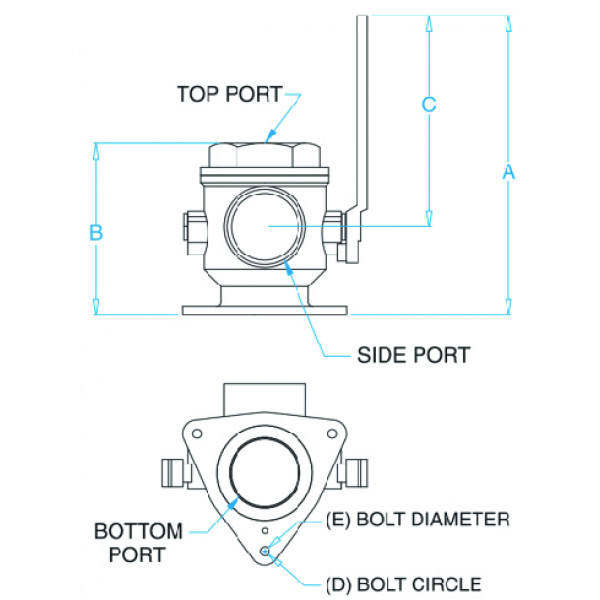

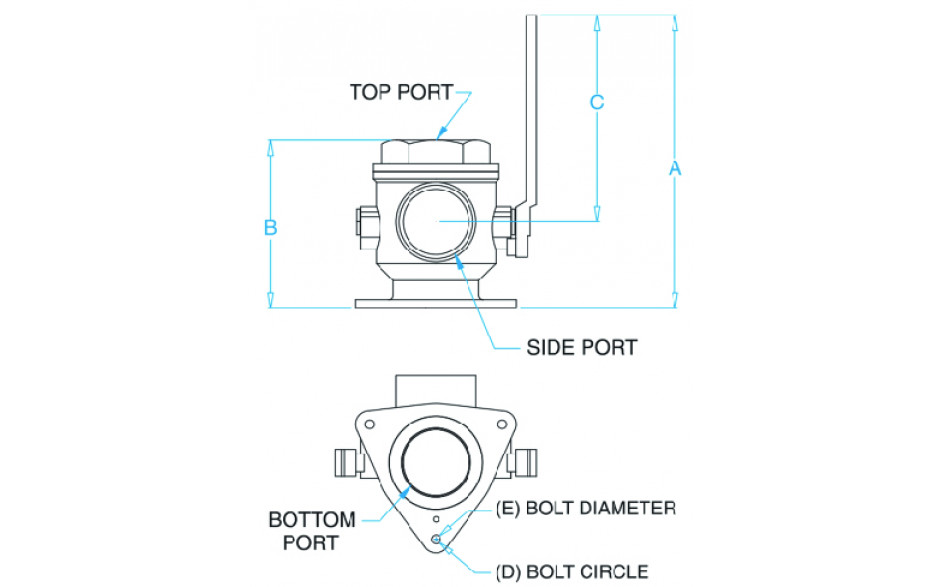

Dimensions
Thread Bottom NPS2-1/2"
Thread Top NPT2-1/2"
Side Port2" NPT
A10.31
B6.75
C5.88
D5.88
E3/8"
dimensions image
 Download Image  Open in New Window

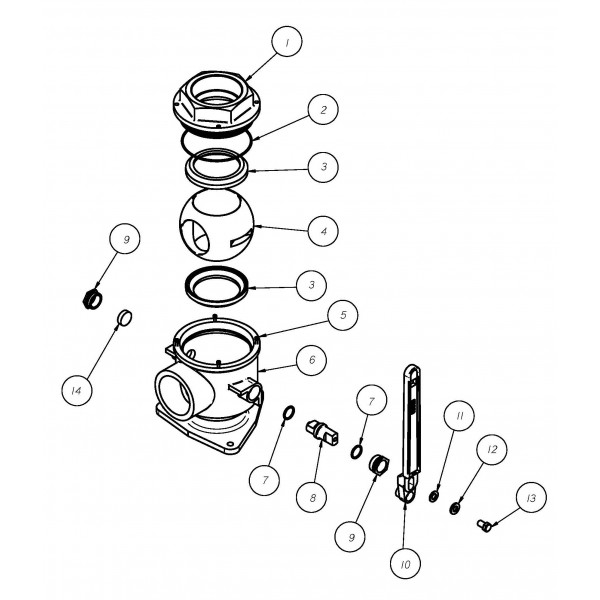

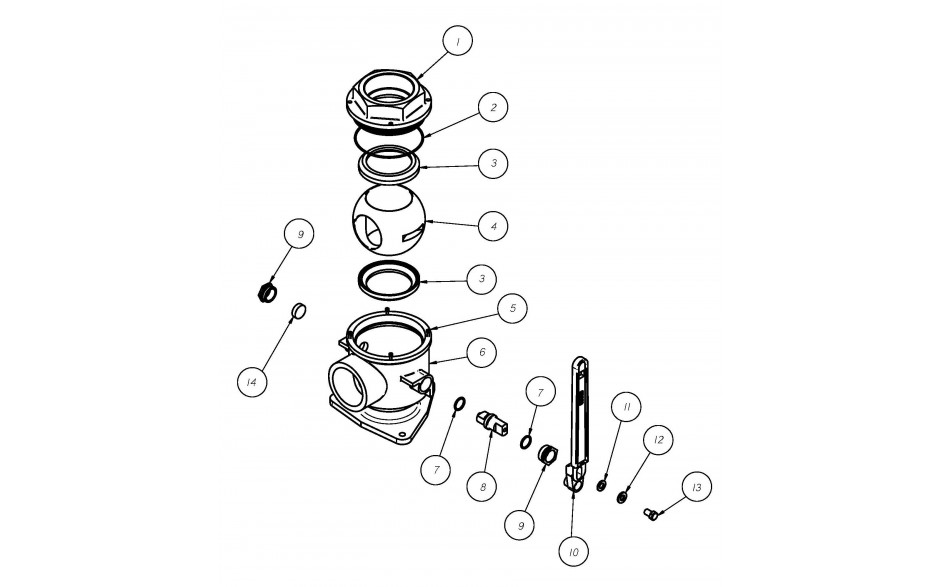

Individual Parts
exploded image
 Download Image  Open in New Window
  • 1
    BV-2502
    $204.00
    Qty Per Unit: 1
  • 2
    2-154
    $2.00
    Qty Per Unit: 1
  • 3
    BV-2506-1
    $41.00
    Qty Per Unit: 2
  • 4
    SBV-2504
    $361.00
    Qty Per Unit: 1
  • 5
    632X38SOC
    $1.00
    Qty Per Unit: 4
  • 6
    SBVP-2500-BT
    $569.00
    Qty Per Unit: 1
  • 7
    1-118
    $4.00
    Qty Per Unit: 2
  • 8
    BV-2501-B
    $75.00
    Qty Per Unit: 1
  • 9
    BV-2503-A
    $13.00
    Qty Per Unit: 2
  • 10
    BV-2508-A
    $64.00
    Qty Per Unit: 1
  • 11
    38FS
    $1.00
    Qty Per Unit: 1
  • 12
    38SS
    $1.00
    Qty Per Unit: 1
  • 13
    3816X58HS
    $2.00
    Qty Per Unit: 1
  • 14
    SBV-3000 PLUG
    $4.00
    Qty Per Unit: 1
