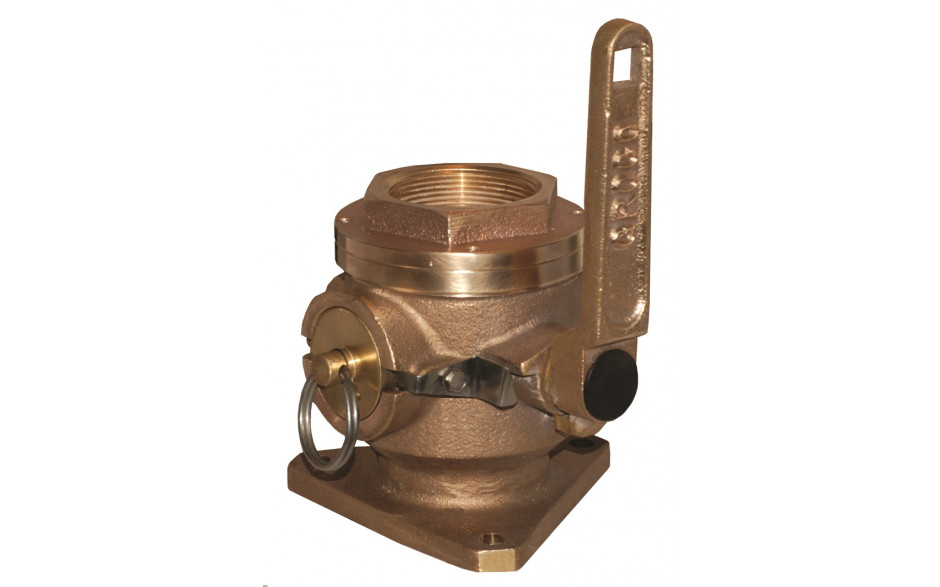

SBV-3000
3"Bronze Safety Seacock
Features:
- Handle has square hole that accepts standard ratchet; helps access hard-to-reach valves, or ease actuation of hard-to-operate valves.

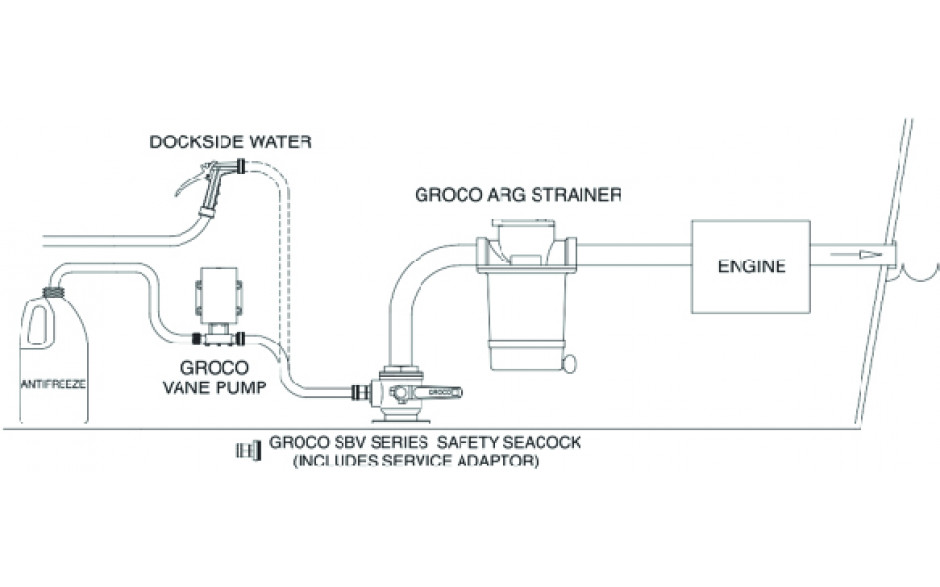

- Side port has a Quick-Release Plug for emergency bilge pumping, and a Service Adaptor for routine winterization and maintenance.
- Full flow.
- Serviceable while installed.
- C84400 bronze construction.
- Stainless steel ball and stem.
- Base has bonding attachment.
- PTFE seats and seals.
- Two driver ports permit handle relocation.

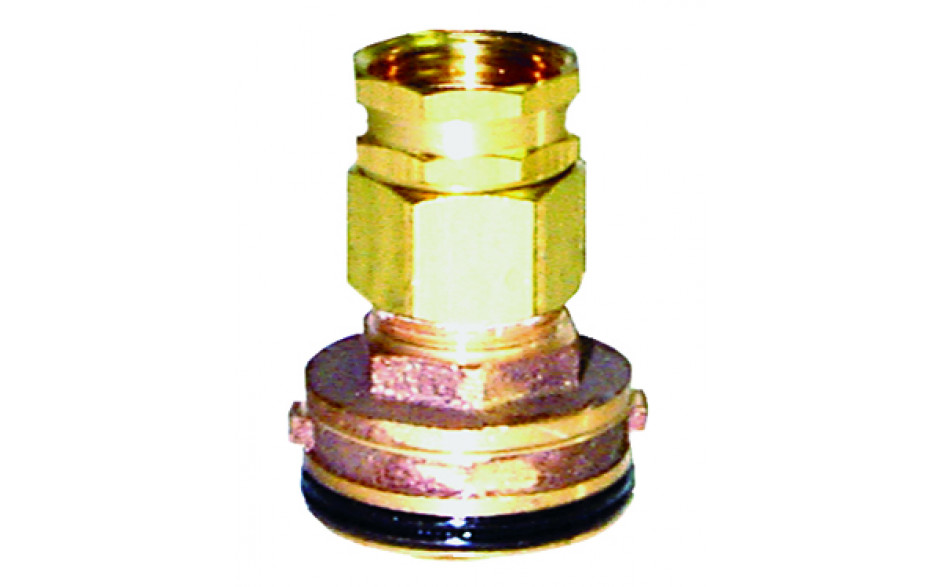

- Service adaptor included.
- UL Listed 647B

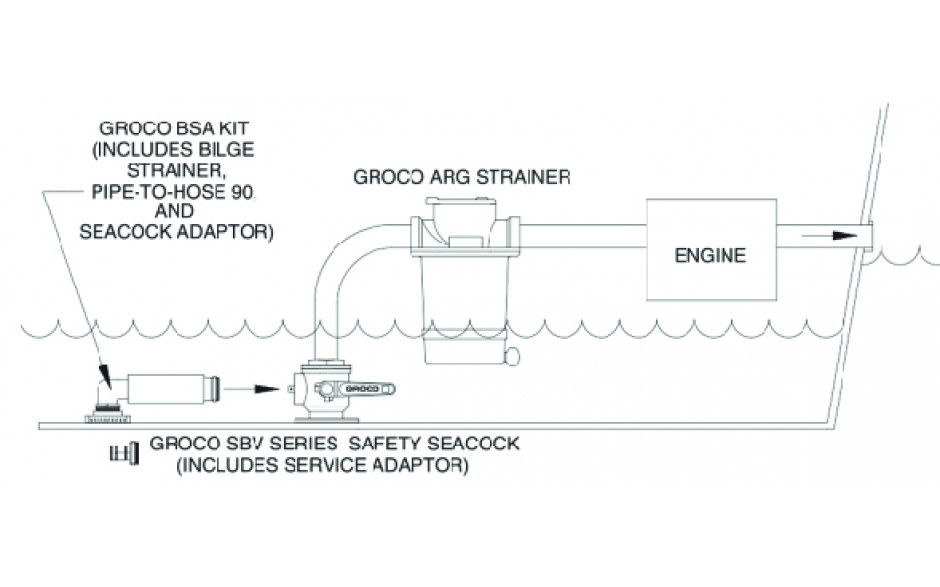

***Add a GROCO Bilge Strainer to pump out remote bilge locations.
Additional Information
| Thread Bottom NPS | 3" |
|---|---|
| Thread Top NPT | 3" |
| Side Port | SBVSA-3005 |

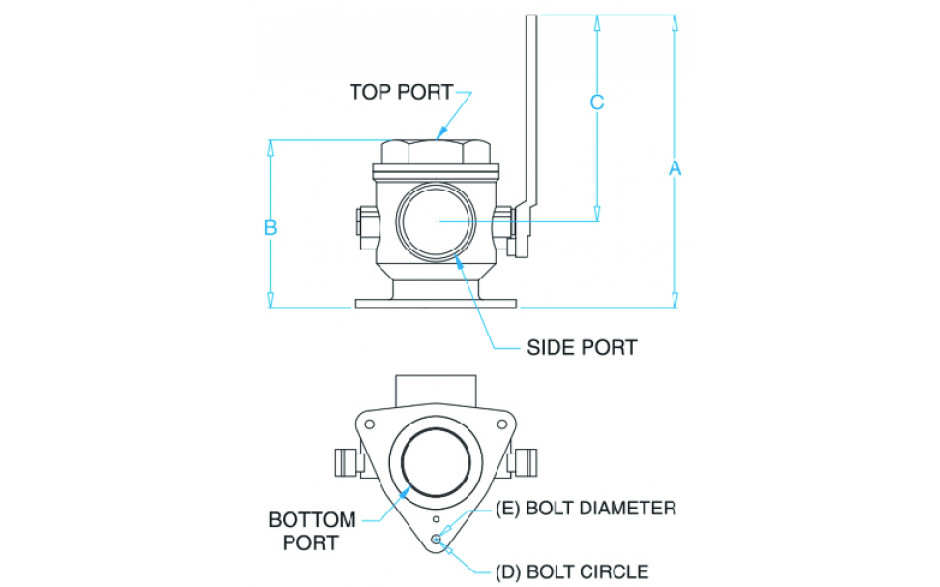

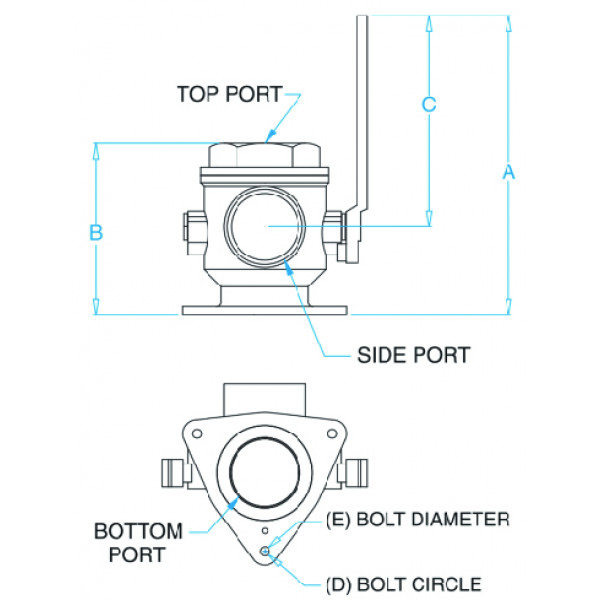

Dimensions
| Thread Bottom NPS | 3" |
| Thread Top NPT | 3" |
| Side Port | SBVSA-3005 |
| A | 13.5 |
| B | 7.75 |
| C | 6.81 |
| D | 7 |
| E | 3/8" |

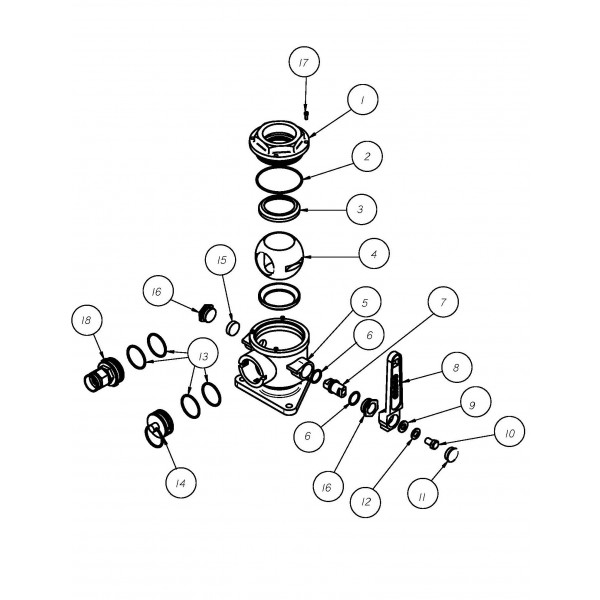

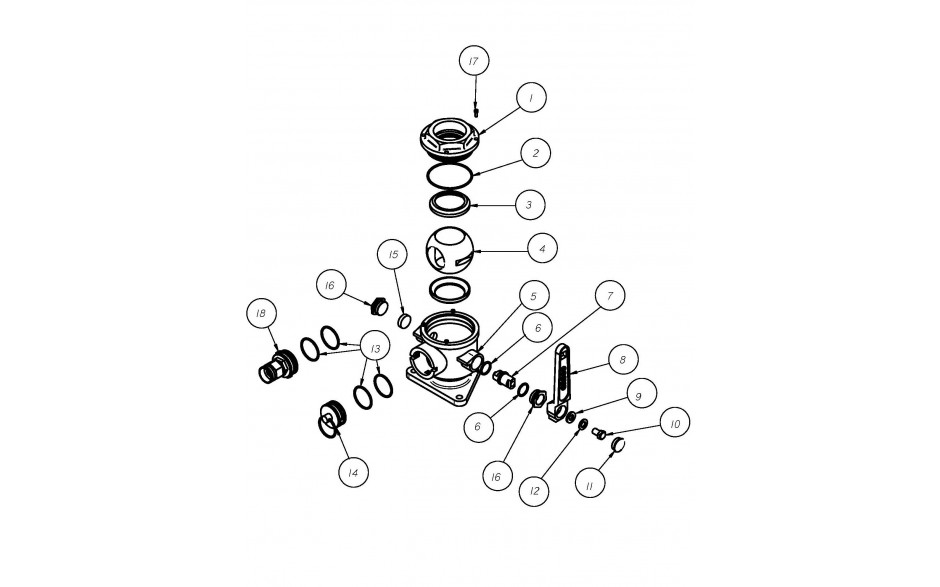

Individual Parts
-
1BV-3002$321.00Qty Per Unit: 1
-
22-157$2.00Qty Per Unit: 2
-
3BV-3006-1$60.00Qty Per Unit: 2
-
4SBV-3004$561.00Qty Per Unit: 1
-
5SBV-3000-BT$716.00Qty Per Unit: 1
-
61-118$4.00Qty Per Unit: 2
-
7BV-2501-B$75.00Qty Per Unit: 1
-
8SBV-3008-A$92.00Qty Per Unit: 1
-
938FS$1.00Qty Per Unit: 1
-
103816X58HS$2.00Qty Per Unit: 1
-
11PFW-10$1.00Qty Per Unit: 1
-
1238SS$1.00Qty Per Unit: 1
-
132-144$1.00Qty Per Unit: 2
-
14SBV-3005$76.00Qty Per Unit: 1
-
15SBV-3000 PLUG$4.00Qty Per Unit: 1
-
16BV-2503-A$13.00Qty Per Unit: 2
-
17632X38SOC$1.00Qty Per Unit: 3
-
18SBVSA-3005$86.00Qty Per Unit: 1
