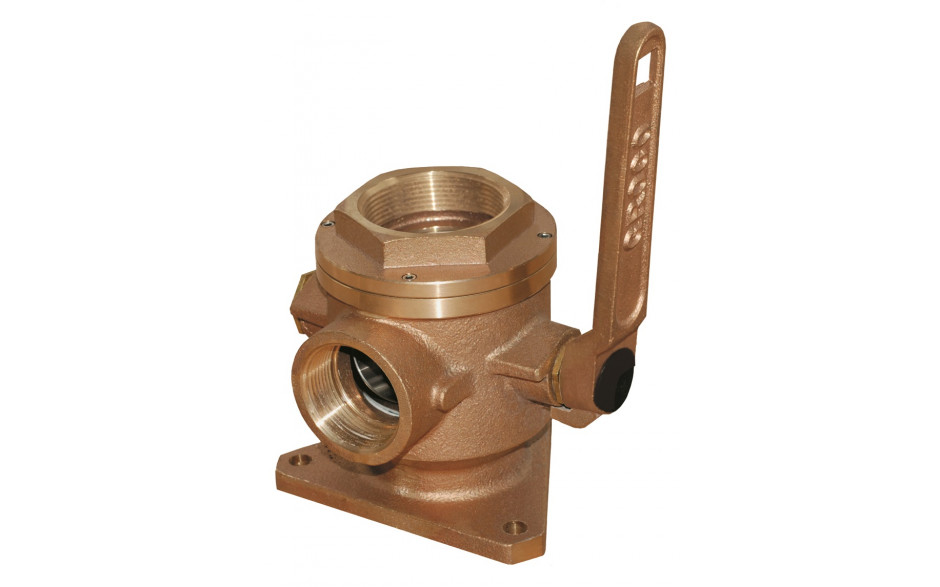

SBV-3000-P
3"Bronze Flanged Seacock with Side Port
Features:
- Two driver ports permit handle relocation.
- NPT threaded side port accepts SSCV or any NPT threaded accessory.
- Handle has square hole that accepts standard ratchet; helps access hard-to-reach valves, or ease actuation of hard-to-operate valves.
- Full flow.
- Serviceable while installed.
- C84400 bronze construction.
- Stainless steel ball and stem.
- Base has bonding attachment.
- PTFE seats and seals.
***Add a GROCO Bilge Strainer to pump out remote bilge locations.
Additional Information
| Thread Bottom NPS | 3" |
|---|---|
| Thread Top NPT | 3" |
| Side Port | 2-1/2" NPT |

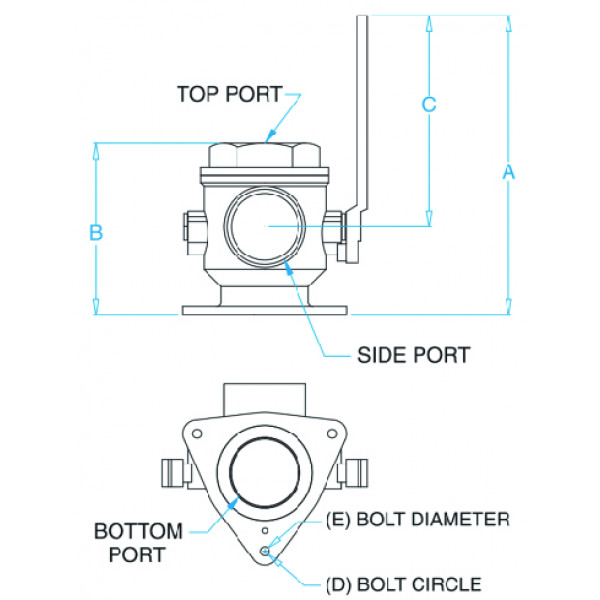

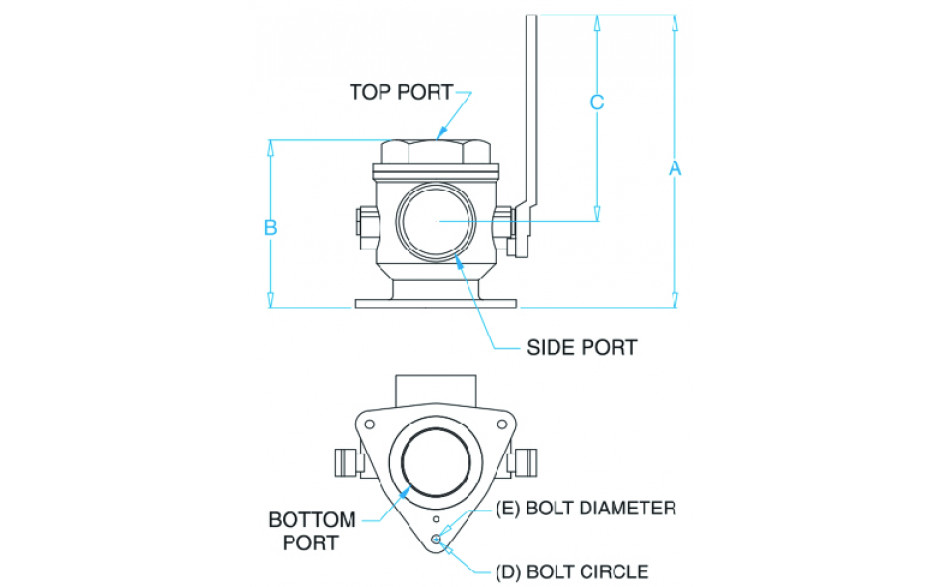

Dimensions
| Thread Bottom NPS | 3" |
| Thread Top NPT | 3" |
| Side Port | 2-1/2" NPT |
| A | 13.5 |
| B | 7.75 |
| C | 6.81 |
| D | 7 |
| E | 3/8" |

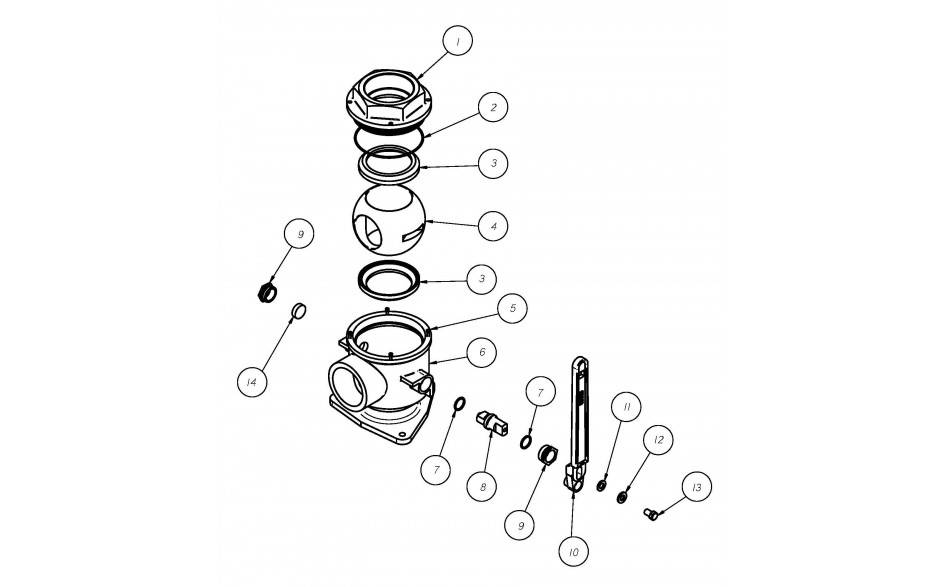

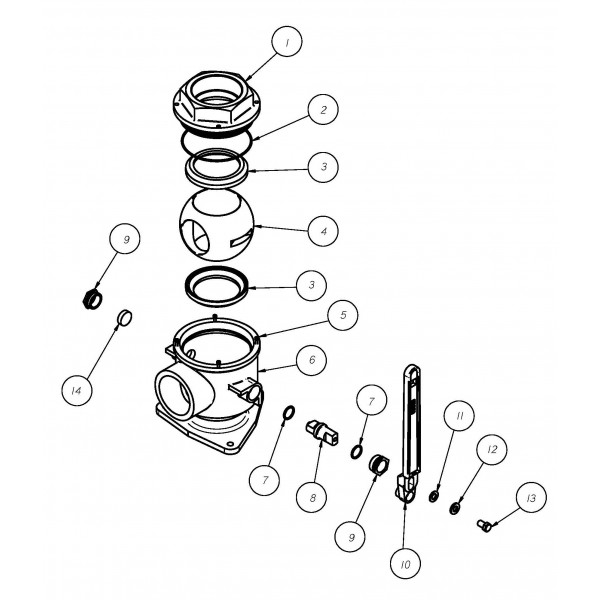

Individual Parts
-
1BV-3002$321.00Qty Per Unit: 1
-
22-157$2.00Qty Per Unit: 1
-
3BV-3006-1$60.00Qty Per Unit: 2
-
4SBV-3004$561.00Qty Per Unit: 1
-
5632X38SOC$1.00Qty Per Unit: 1
-
6SBVP-3000-BT$873.00Qty Per Unit: 1
-
71-118$4.00Qty Per Unit: 2
-
9BV-2503-A$13.00Qty Per Unit: 2
-
10SBV-3008-A$92.00Qty Per Unit: 1
-
1138FS$1.00Qty Per Unit: 1
-
1238SS$1.00Qty Per Unit: 1
-
133816X58HS$2.00Qty Per Unit: 1
-
14SBV-3000 PLUG$4.00Qty Per Unit: 1
