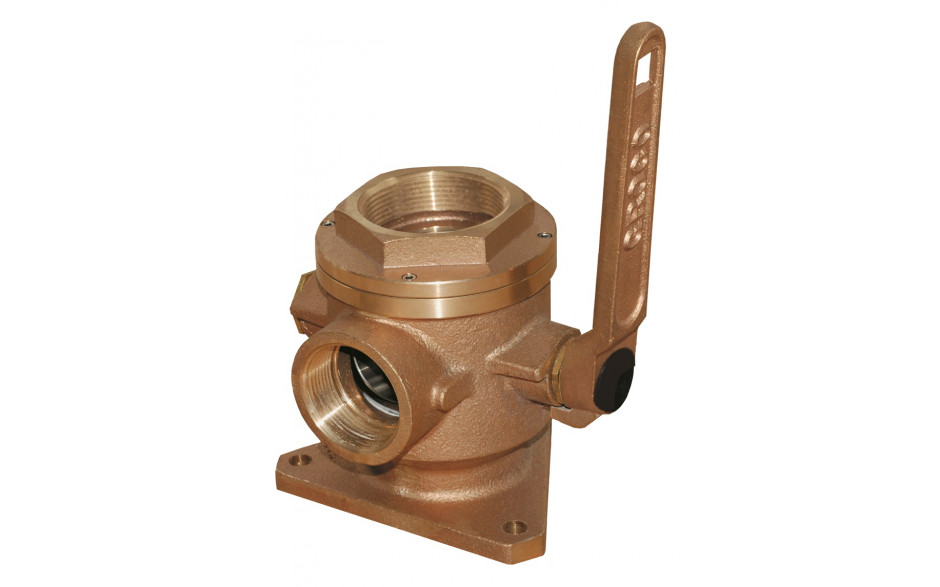

SBV-4000-P

4"Bronze Flanged Seacock with Side Port

Features:

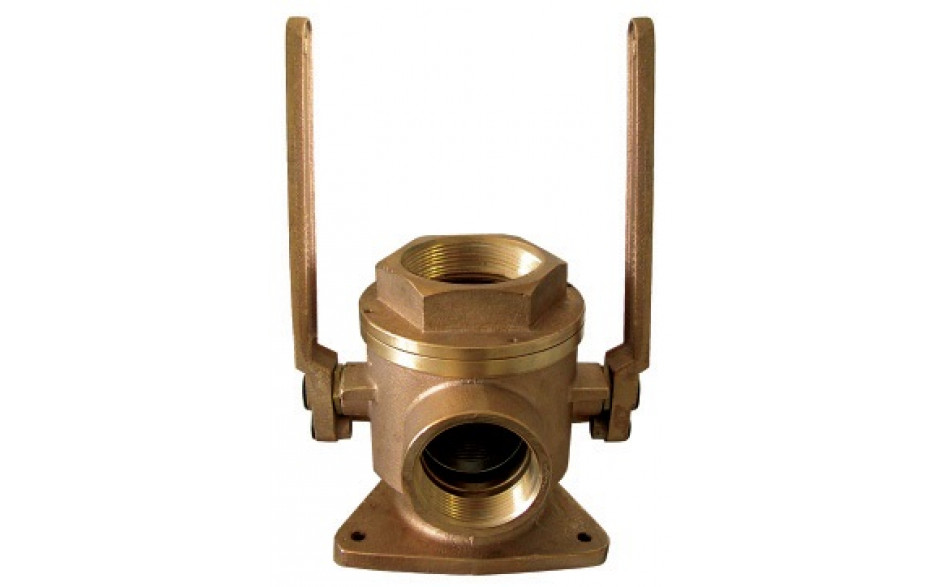

  • Two driver ports permit handle relocation.
  • NPT threaded side port accepts SSCV or any NPT threaded accessory.
  • Handle has square hole that accepts standard ratchet; helps access hard-to-reach valves, or ease actuation of hard-to-operate valves.
  • Full flow.
  • Serviceable while installed.
  • C84400 bronze construction.
  • Stainless steel ball and stem.
  • Base has bonding attachment.
  • PTFE seats and seals.

  ***Add a GROCO Bilge Strainer to pump out remote bilge locations.

Additional Information
Thread Bottom NPS 4"
Thread Top NPT 4"
Side Port 3" NPT
Dimensions
Thread Bottom NPS4"
Thread Top NPT4"
Side Port3" NPT
A19.2
B9.6
C14.13
D8
E1/2"

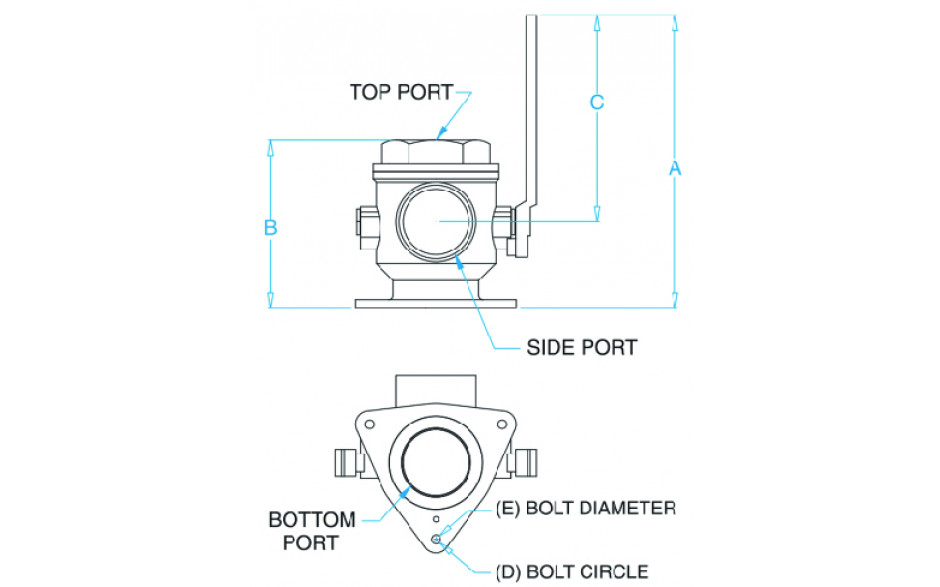

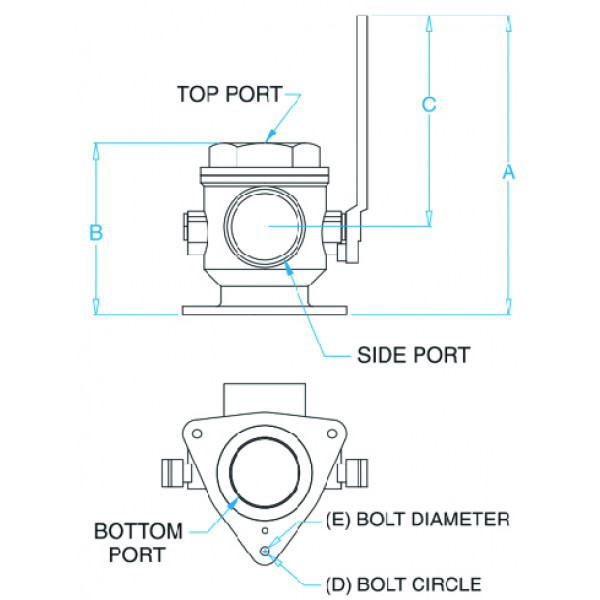

dimensions image
 Download Image  Open in New Window
Individual Parts

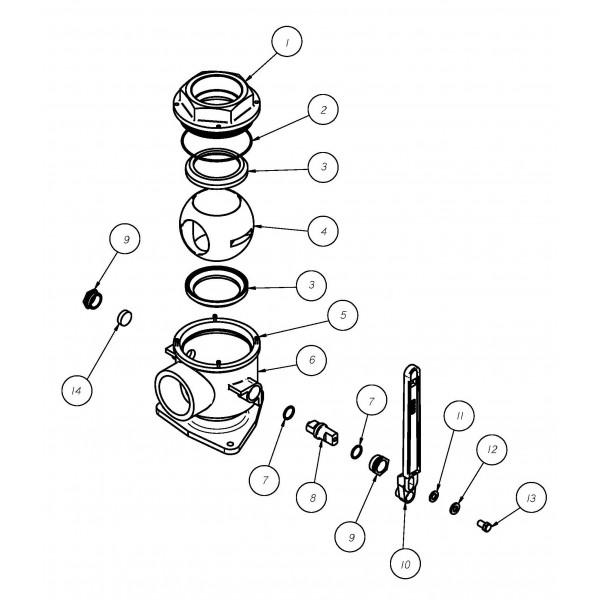

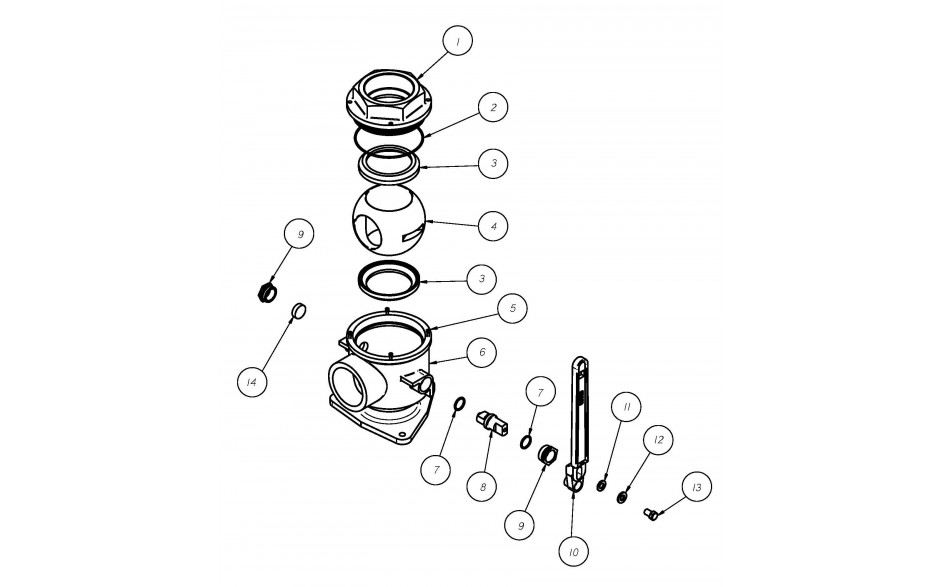

exploded image
 Download Image  Open in New Window
  • 1
    BV-4002
    $735.00
    Qty Per Unit: 1
  • 2
    2-162
    $3.00
    Qty Per Unit: 1
  • 3
    BV-4006-1
    $125.00
    Qty Per Unit: 2
  • 4
    SBV-4004
    $961.00
    Qty Per Unit: 1
  • 5
    632X38SOC
    $1.00
    Qty Per Unit: 4
  • 6
    SBVP-4000-BT
    $2,247.00
    Qty Per Unit: 1
  • 7
    1-216
    $5.00
    Qty Per Unit: 2
  • 8
    BV-4001-A
    $78.00
    Qty Per Unit: 1
  • 9
    BV-4003
    $41.00
    Qty Per Unit: 2
  • 10
    BV-4008-A
    $271.00
    Qty Per Unit: 1
  • 11
    38FS
    $1.00
    Qty Per Unit: 1
  • 12
    38SS
    $1.00
    Qty Per Unit: 1
  • 14
    SBV-4000 PLUG
    $5.00
    Qty Per Unit: 1
