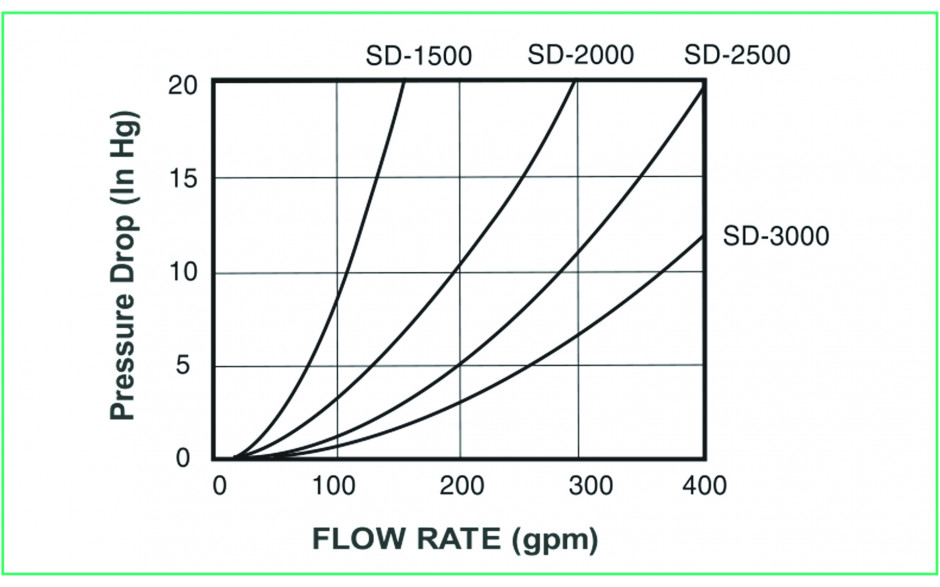

  • flow-chart

SD-1500-S

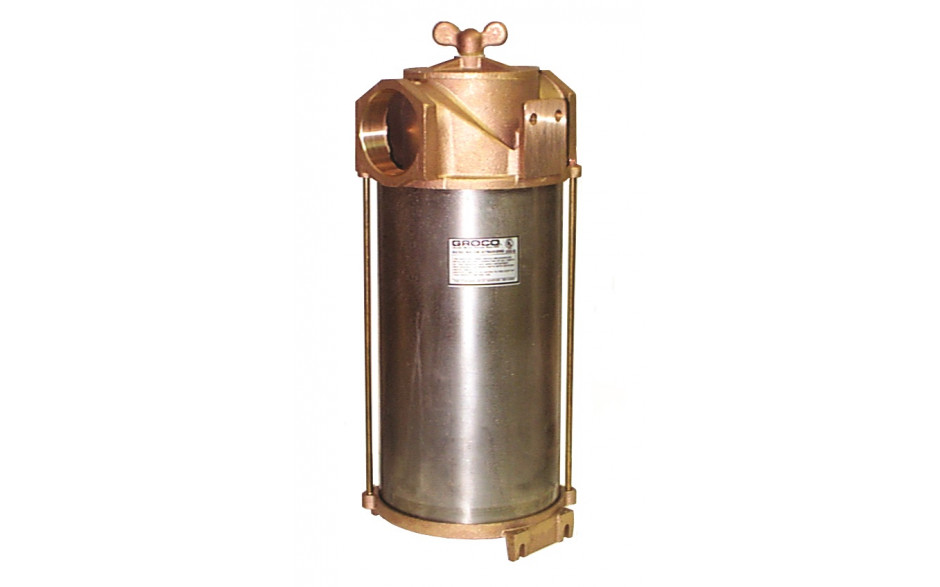

SD-1500-S 1-1/2" Raw Water Strainer

Features

  • Greater filtering capacity than GROCO ARG or SA model strainers.
  • Improved cylindrical filter basket.
  • Improved design secures filter basket under all flow conditions.
  • O-rings seal all mating surfaces.
  • Monel inside tie rod.
  • Crystal Clear cast acrylic sight glass
  • Easy service is provided by the spin-off wingnut.
  • C84400 bronze construction.
  • UL Listed 255D

Additional Information
Spec Sheet No
Basket Type #304 Stainless Steel (-S Suffix)
Thread NPT 1-1/2"
Open Area Ratio 36

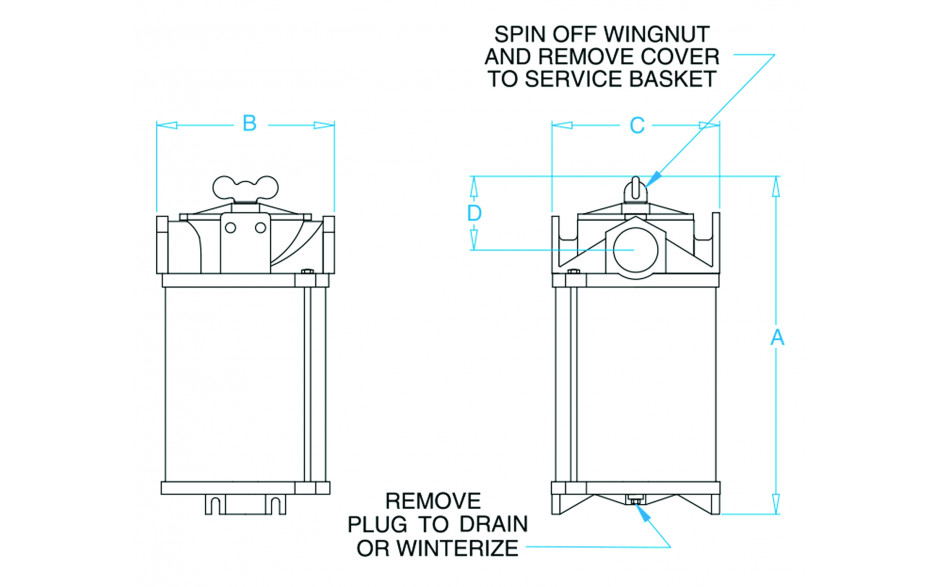

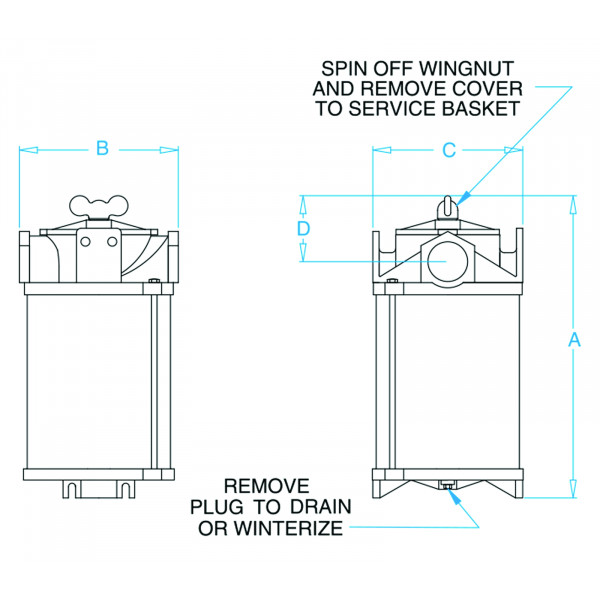

Dimensions
Thread NPT1-1/2"
A14.5
B8.9
C8.4
D3.8
E -
Open Area Ratio36
dimensions image
 Download Image  Open in New Window

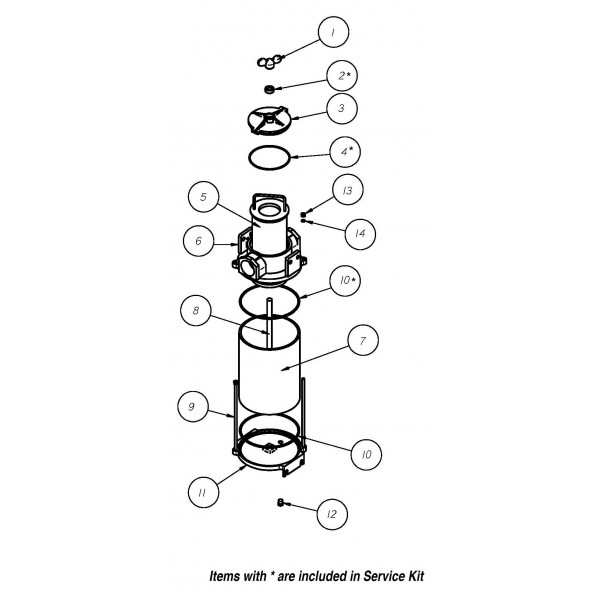

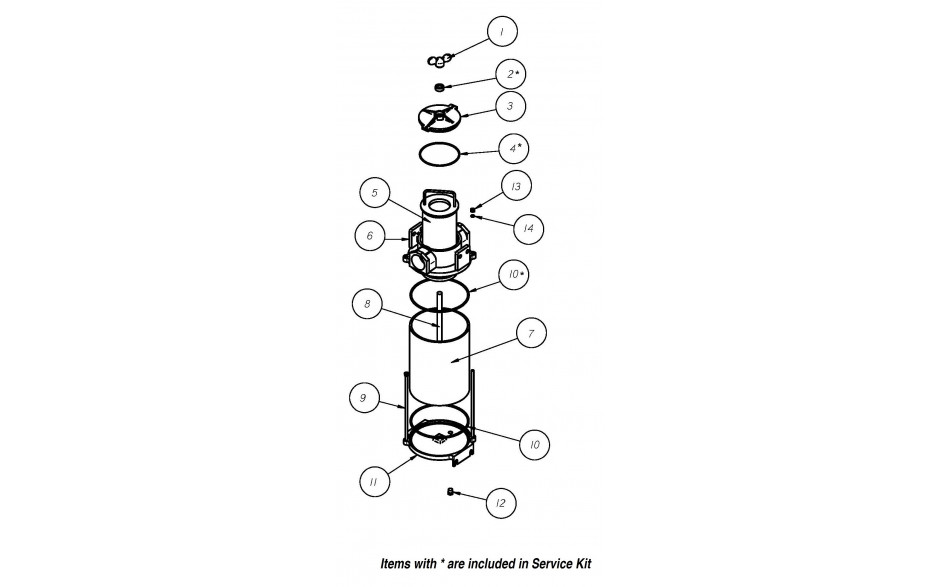

Individual Parts
exploded image
 Download Image  Open in New Window
  • 1
    S-85
    $39.00
    Qty Per Unit: 1
  • 2
    SD-11
    $4.00
    Qty Per Unit: 1
  • 3
    SD-14
    $196.00
    Qty Per Unit: 1
  • 4
    2-251
    $3.00
    Qty Per Unit: 1
  • 5
    SSD-17-D
    $213.00
    Qty Per Unit: 1
  • 6
    SD-1500-H
    $750.00
    Qty Per Unit: 1
  • 7
    SD-21-D
    $173.00
    Qty Per Unit: 1
  • 8
    SD-15-D
    $259.00
    Qty Per Unit: 1
  • 9
    SD-20-D
    $10.00
    Qty Per Unit: 2
  • 10
    2-367
    $5.00
    Qty Per Unit: 2
  • 11
    SD-16
    $310.00
    Qty Per Unit: 1
  • 12
    1418HB
    $5.00
    Qty Per Unit: 1
  • 14
    516SS
    $1.00
    Qty Per Unit: 2
  • 15
    SD
    $32.00
    Qty Per Unit: 1
