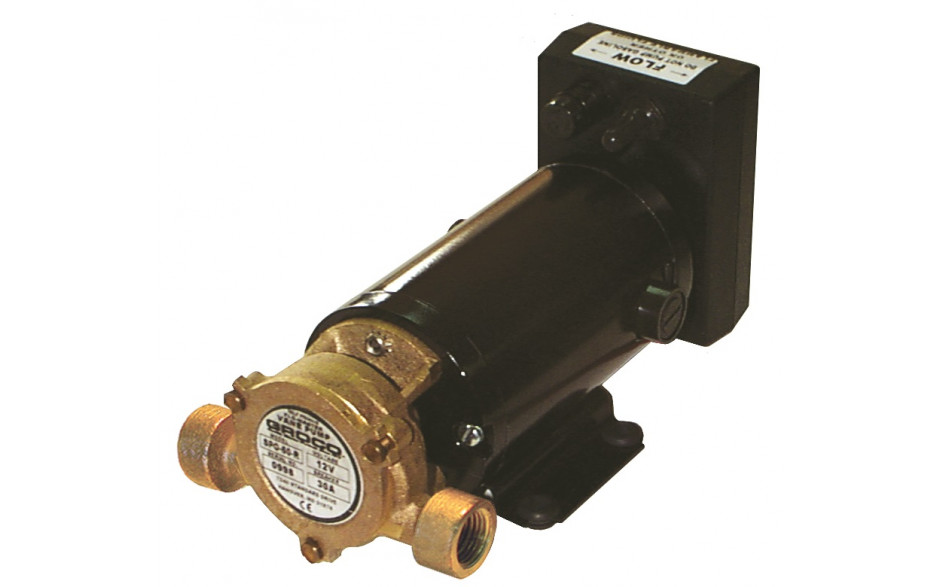

SPO-80-R 24V

Heavy Duty Positive Displacement Reversing Vane Pump

The Concept:

    GROCO  Vane Pumps are self-priming, are instantly reversible, and are capable of operation in either direction. Relatively high flow (more than gear pumps) makes them suitable for general purpose duties such as deck-wash, bilge pumping (filtered inlet),  fuel transfer, ballast transfer, and oil change.  All models have an ignition protected motor, #316 stainless steel shaft, and are available in models that provide reversing (R), remote reversing (RR), and  reversing with touchpad (RT) control options. SPO-80 Series Vane Pumps have a more powerful motor and are better suited for long run-time or head pressure greater than 20 PSI.

Additional Information
Self Priming Yes
Thread NPT 1/2" + Garden Hose Adaptor
Control Type Pump Mounted Reversing Switch
Max GPM 7
Breaker DC 15 amp

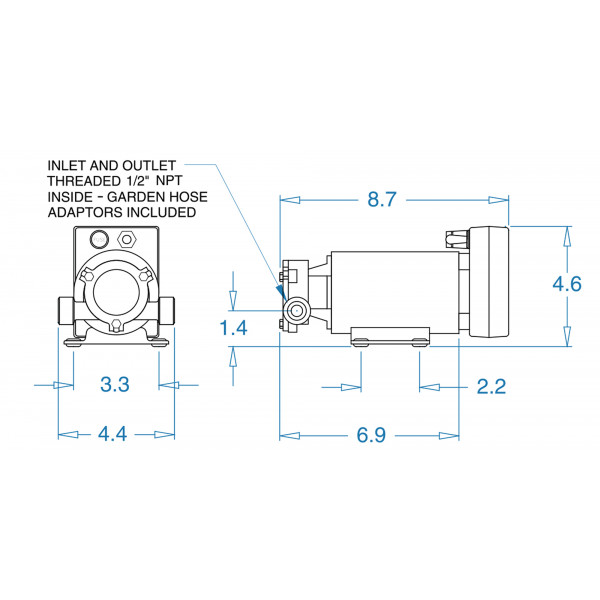

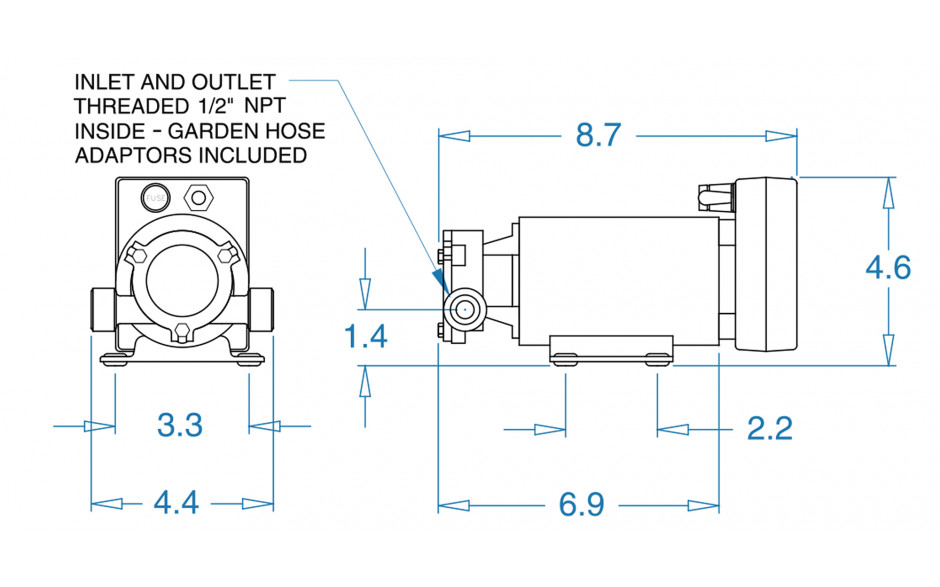

Dimensions
Self PrimingYes
Thread NPT1/2" + Garden Hose Adaptor
Control TypePump Mounted Reversing Switch
Max GPM7
Breaker DC15 amp
dimensions image
 Download Image  Open in New Window

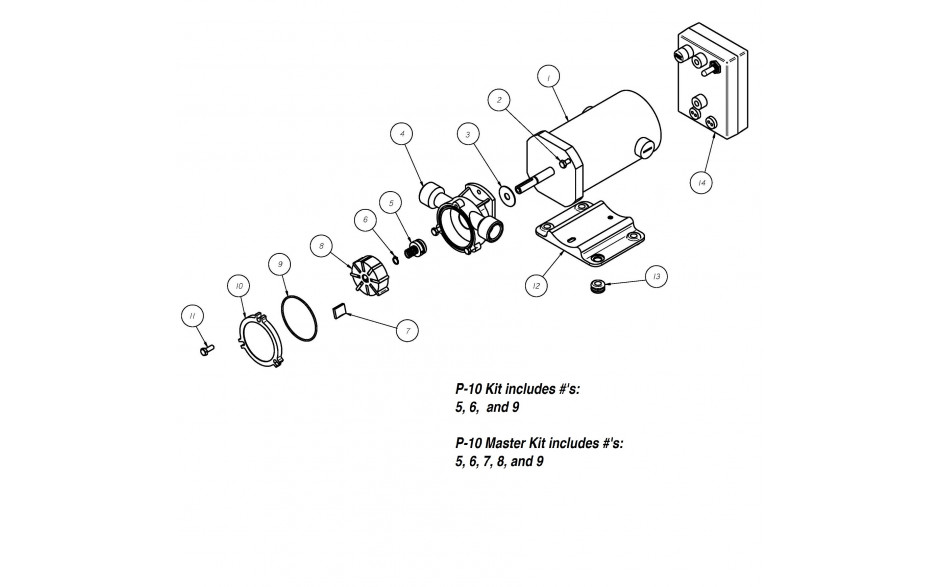

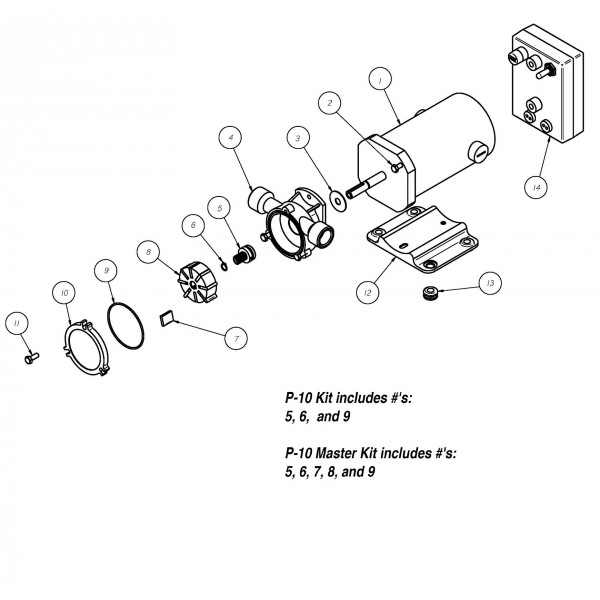

Individual Parts
exploded image
 Download Image  Open in New Window
  • 1
    24V-R
    $1,266.00
    Qty Per Unit: 1
  • 2
    1032X12HS
    $1.00
    Qty Per Unit: 2
  • 3
    SP-95
    $1.00
    Qty Per Unit: 1
  • 4
    SP-49-C
    $111.00
    Qty Per Unit: 1
  • 5
    69089
    $999,999.99
    Qty Per Unit: 1
  • 6
    SNAP RING-1
    $2.00
    Qty Per Unit: 1
  • 7
    SP-98
    $30.00
    Qty Per Unit: 1
  • 8
    SP-99-A
    $23.00
    Qty Per Unit: 1
  • 9
    2-034
    $1.00
    Qty Per Unit: 1
  • 10
    SP-91
    $23.00
    Qty Per Unit: 1
  • 11
    1024X12HB
    $1.00
    Qty Per Unit: 3
  • 12
    B-200-P
    $5.00
    Qty Per Unit: 1
  • 13
    06-0001-00
    $1.00
    Qty Per Unit: 1
  • 14
    REV-B ASSY 24V
    $332.00
    Qty Per Unit: 1
  • 15
    P-10
    $54.00
    Qty Per Unit: 1
  • 16
    P-10 MASTER
    $125.00
    Qty Per Unit: 1
