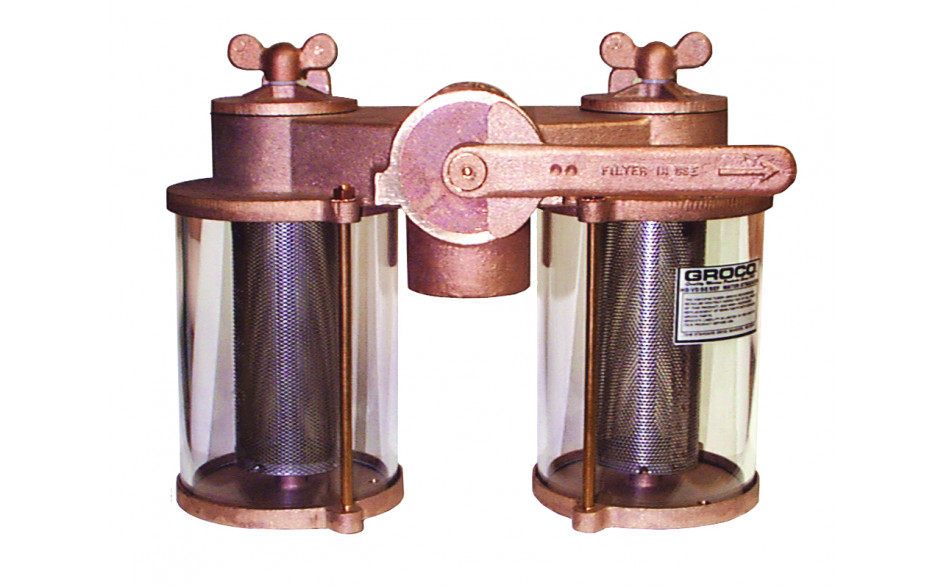

VD-2000
2" Duplex Strainer with Monel Basket
FEATURES
- Standard with #304 stainless steel filter basket. (Monel is optional)
- Monel inside tie rod.
- Easy service with spin-off-wingnut.
- C84400 bronze construction.
- Crystal Clear Cast Acrylic Cylinder
- Fine mesh filter basket is also available.
Additional Information
Spec Sheet | No |
---|---|
Basket Type | Monel |
Thread NPT | 2" |
Open Area Ratio | 14 |

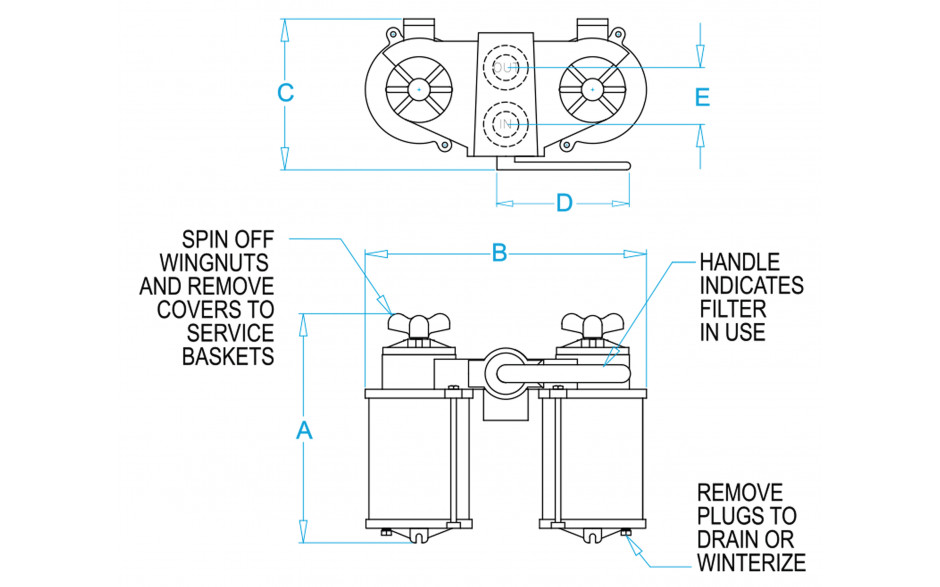

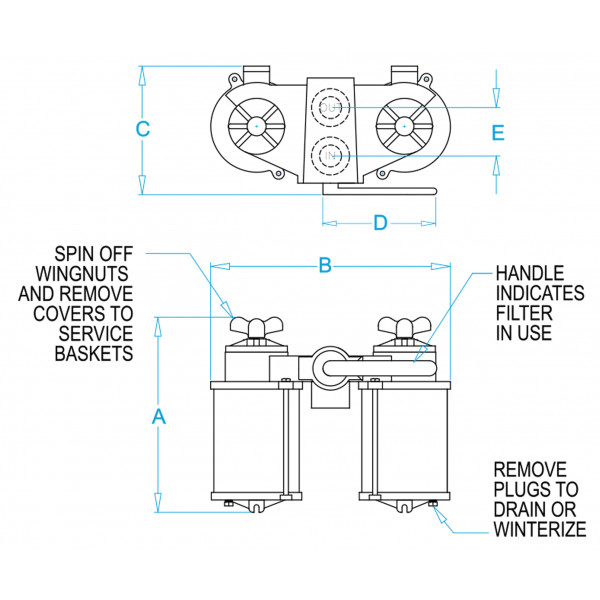

Dimensions
Thread NPT | 2" |
A | 16.5 |
B | 16 |
C | 8 |
D | 6.5 |
E | 6.5 |
Open Area Ratio | 14 |

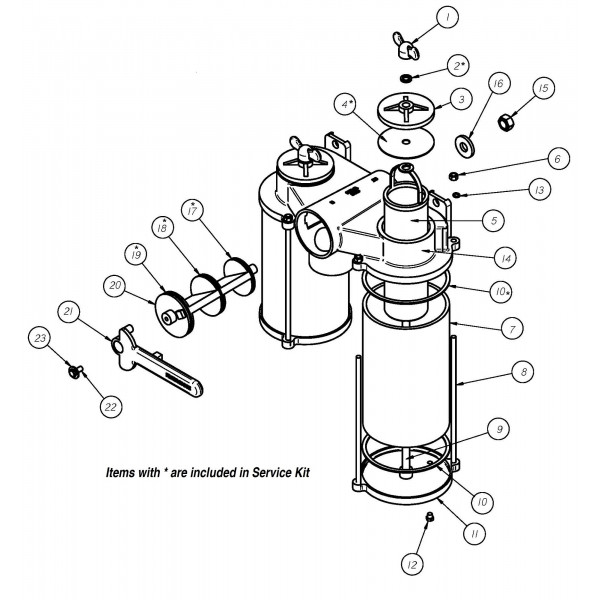

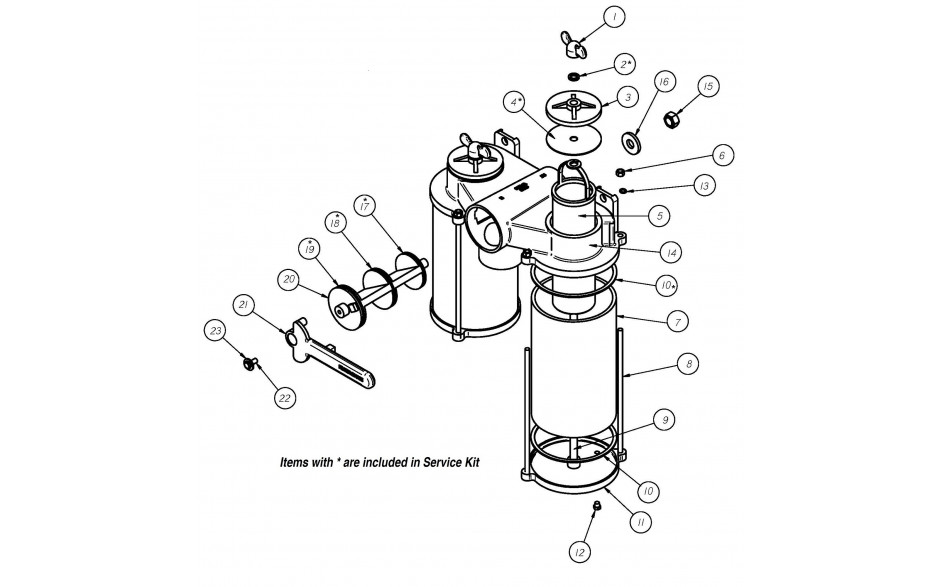

Individual Parts
-
1S-75$23.00Qty Per Unit: 2
-
2504-F$1.00Qty Per Unit: 2
-
3S-86$65.00Qty Per Unit: 2
-
4S-86-A$2.00Qty Per Unit: 2
-
5BM-16$138.00Qty Per Unit: 1
-
651618HS$1.00Qty Per Unit: 4
-
7S-88-A$163.00Qty Per Unit: 1
-
8S-82-C$12.00Qty Per Unit: 4
-
9S-82-F$163.00Qty Per Unit: 2
-
10#10R SET$13.00Qty Per Unit: 2
-
11S-82-AB$194.00Qty Per Unit: 2
-
121827HB$3.00Qty Per Unit: 2
-
13516SS$1.00Qty Per Unit: 4
-
14VD-2000 BPA$1,864.00Qty Per Unit: 1
-
155818HB$5.00Qty Per Unit: 1
-
16VD-B$7.00Qty Per Unit: 1
-
172-229$1.00Qty Per Unit: 1
-
182-231$2.00Qty Per Unit: 1
-
192-234$2.00Qty Per Unit: 1
-
21VD-2502$106.00Qty Per Unit: 1
-
2251618X34HB$3.00Qty Per Unit: 1
-
2324L$2.00Qty Per Unit: 1
-
24VD-3$51.00Qty Per Unit: 1
