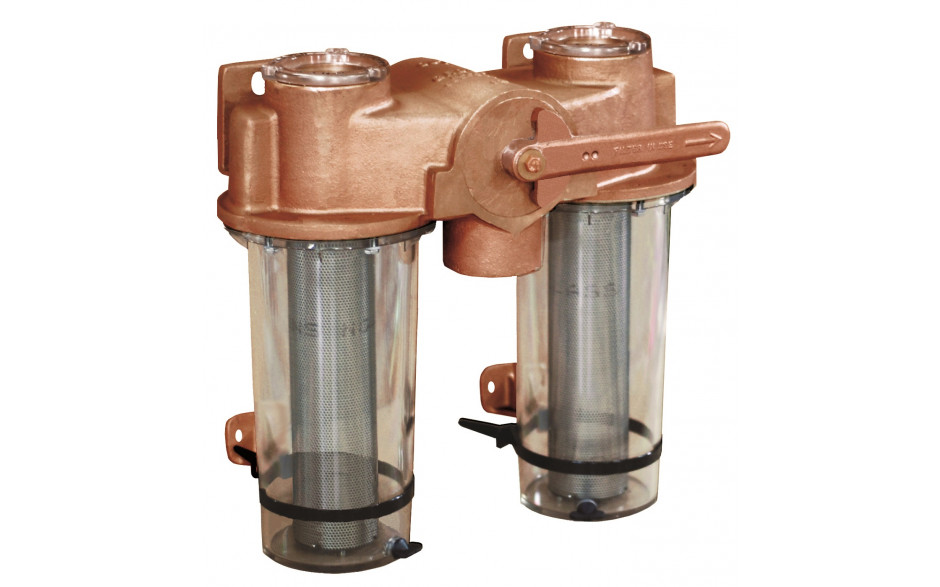

932-1000-01
1" Duplex Strainer with Monel Basket
FEATURES
- No tie rods or gaskets.
- Easy service with screw-on cap.
- Patent-pending valve handle has square hole to accept a standard ratchet for improved leverage or greater access.
- C84400 bronze construction.
- #304 stainless steel filter baskets are standard
- Monel basket available.
- ABS Compliant version available with bronze enclosures. 933 Series.
Additional Information
Spec Sheet | No |
---|---|
Basket Type | Monel |
Thread NPT | 1" |

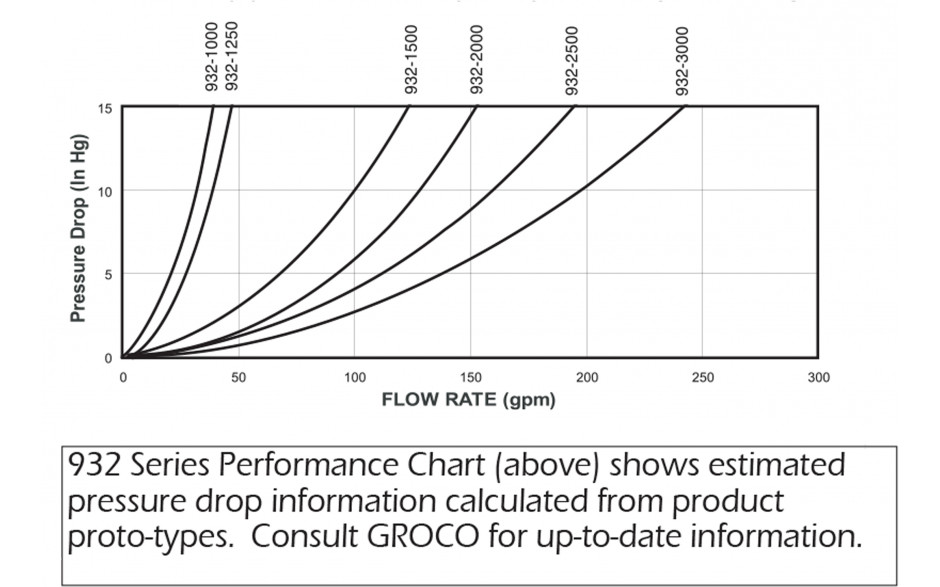

Open Area Ratio | 28 |

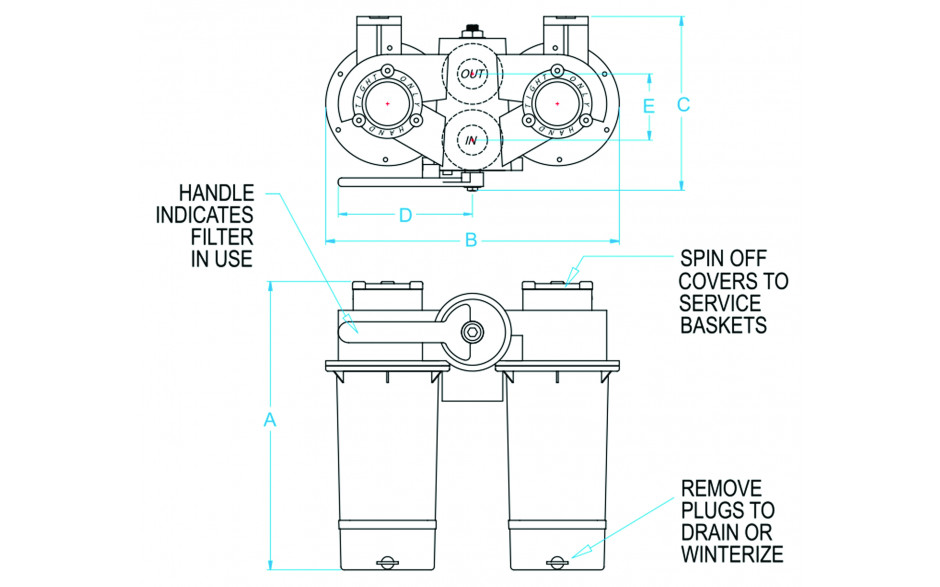

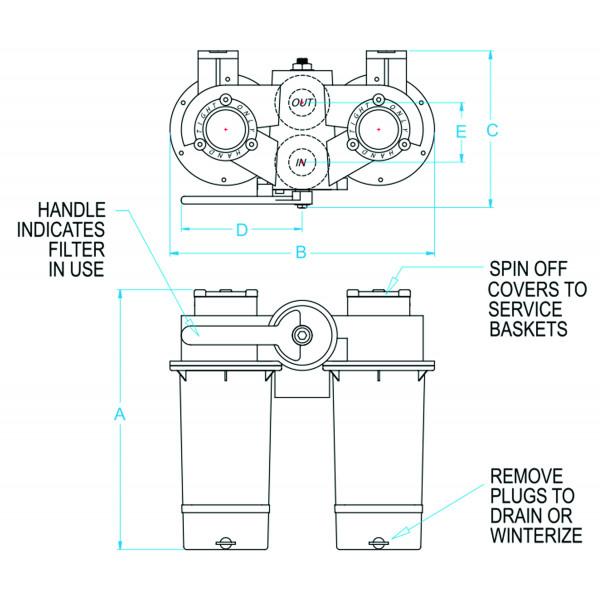

Dimensions
Thread NPT | 1" |
A | 9.4 |
B | 13.5 |
C | 6.5 |
D | 3.3 |
E | 2.5 |
Open Area Ratio | 28 |

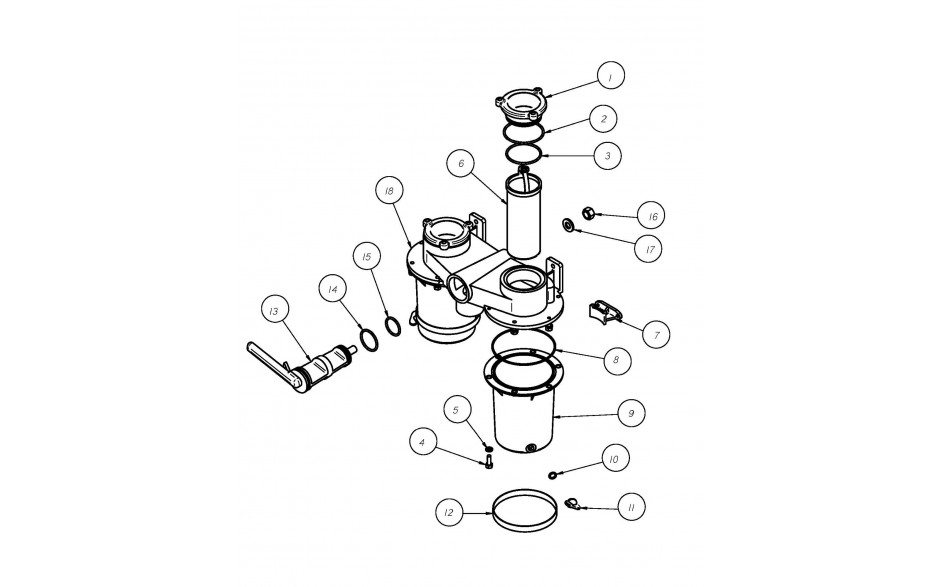

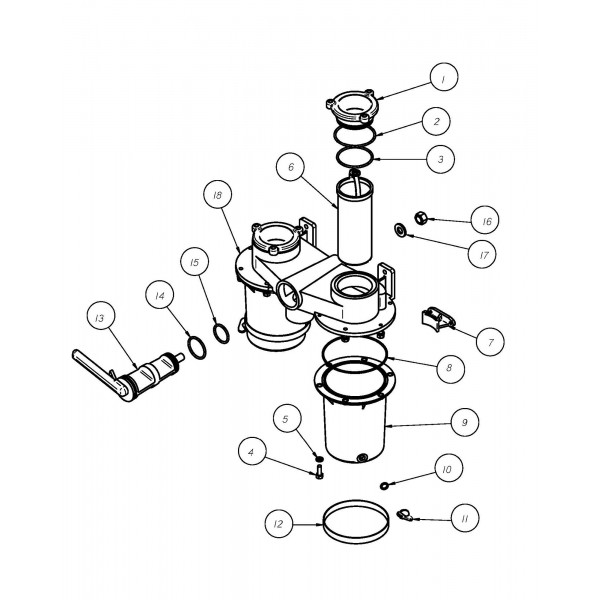

Individual Parts
-
1ARG-1001-PC$26.00Qty Per Unit: 2
-
22-229$1.00Qty Per Unit: 2
-
32-232$2.00Qty Per Unit: 2
-
41420X34HS$1.00Qty Per Unit: 12
-
5PFW-2 SET$3.00Qty Per Unit: 2
-
6BM-3$86.00Qty Per Unit: 2
-
7ARG-1004$20.00Qty Per Unit: 2
-
82-153$2.00Qty Per Unit: 2
-
9ARG-1003$73.00Qty Per Unit: 2
-
102-111$1.00Qty Per Unit: 2
-
11ARG-756$4.00Qty Per Unit: 2
-
12ARG-502$5.00Qty Per Unit: 2
-
13932-1000 BPA$1,169.00Qty Per Unit: 1
-
142-222$1.00Qty Per Unit: 1
-
152-218$1.00Qty Per Unit: 1
-
161220HB$3.00Qty Per Unit: 1
-
17VD-A$5.00Qty Per Unit: 1
