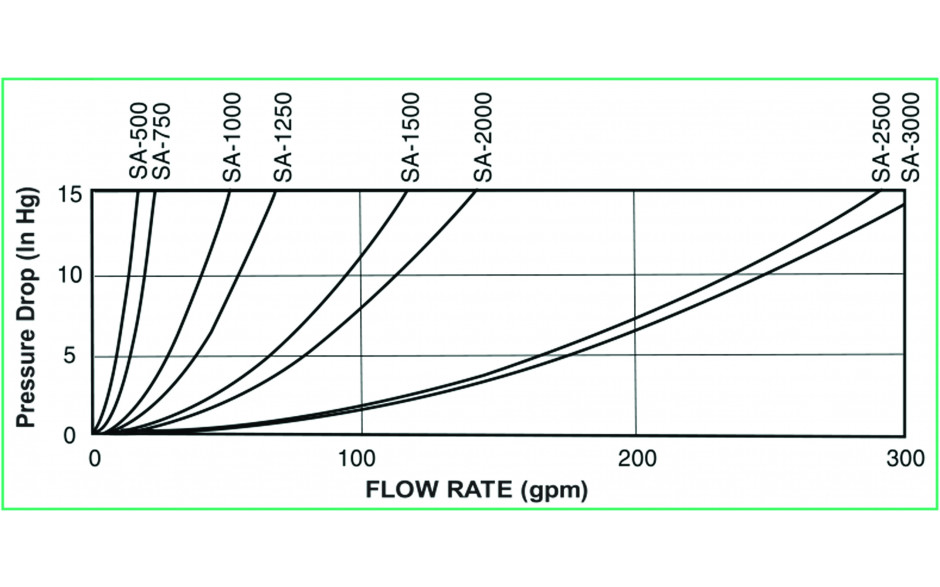

  • flow-chart

ASA-750 Series

 3/4" Raw Water Strainer

 FEATURES

  • Standard with #304 stainless steel filter basket. (Monel is optional)
  • Monel inside tie rod and #316 Stainless Steel outer tie rods.
  • Easy service with spin-off-wingnut.
  • C84400 bronze construction.
  • #316 SS Enclosure for ABS compliance
  • Fine mesh filter baskets are also available.

Additional Information
Spec Sheet No
Thread NPT 3/4"
Open Area Ratio 36

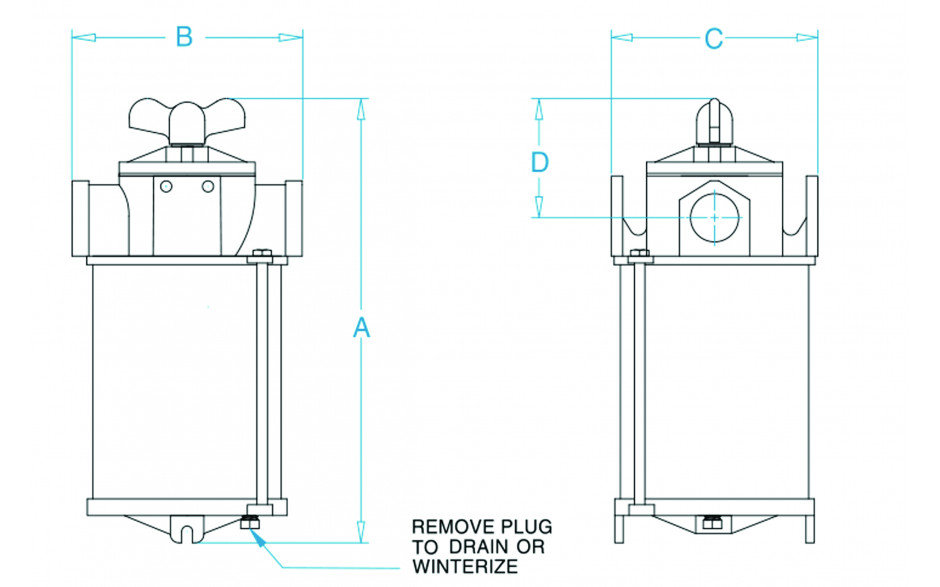

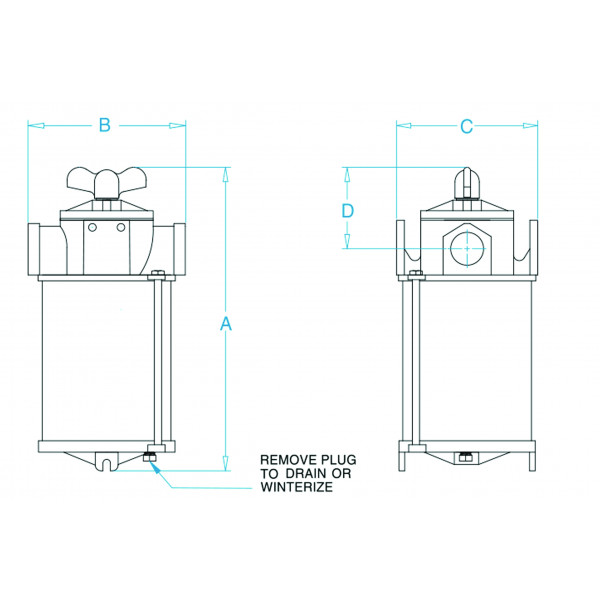

Dimensions
Thread NPT3/4"
A10
B4.5
C4
D2.3
E -
Open Area Ratio36
dimensions image
 Download Image  Open in New Window

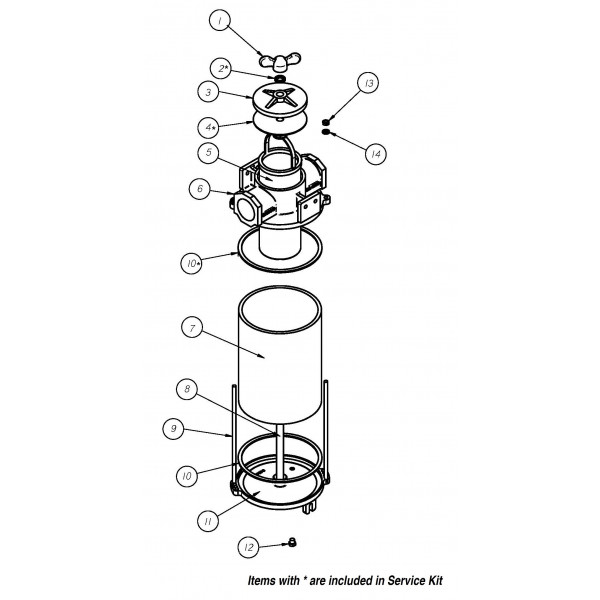

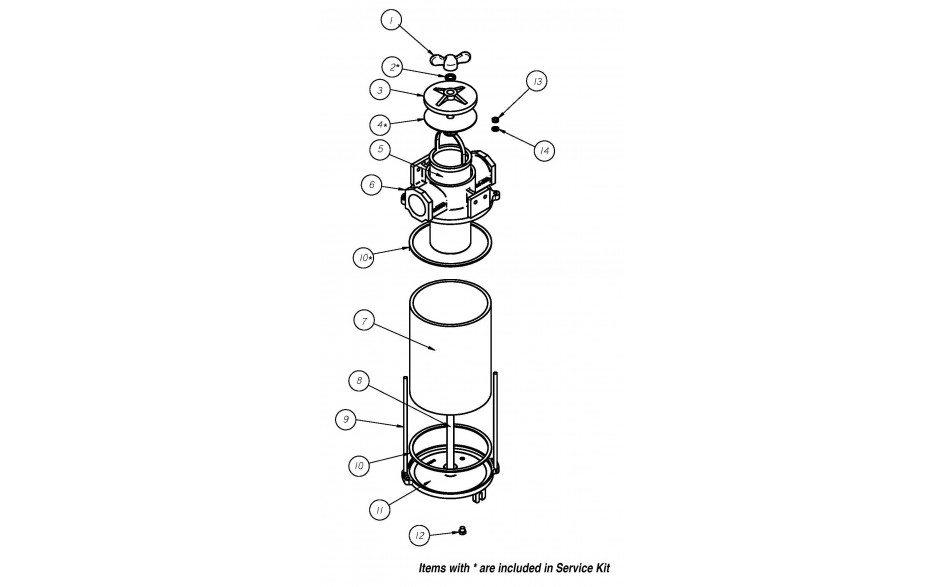

Individual Parts
exploded image
 Download Image  Open in New Window
  • 1
    SVS-5
    $15.00
    Qty Per Unit: 1
  • 2
    500-K
    $1.00
    Qty Per Unit: 1
  • 3
    S-64
    $26.00
    Qty Per Unit: 1
  • 4
    S-64-A
    $2.00
    Qty Per Unit: 1
  • 5
    BM-2
    $73.00
    Qty Per Unit: 1
  • 5
    BP-2
    $32.00
    Qty Per Unit: 1
  • 5
    BS-2
    $36.00
    Qty Per Unit: 1
  • 6
    S-750-A
    $132.00
    Qty Per Unit: 1
  • 7
    AS-70-A
    $117.00
    Qty Per Unit: 1
  • 8
    S-65-A
    $68.00
    Qty Per Unit: 1
  • 9
    S-73-X
    $6.00
    Qty Per Unit: 2
  • 10
    #9R SET
    $13.00
    Qty Per Unit: 2
  • 11
    S-63-A
    $56.00
    Qty Per Unit: 1
  • 12
    1827HB
    $3.00
    Qty Per Unit: 1
  • 13
    1420HS
    $1.00
    Qty Per Unit: 1
  • 14
    14SS
    $1.00
    Qty Per Unit: 2
  • 15
    SA-1
    $26.00
    Qty Per Unit: 1
